Galvanized Steel Frame Large Glass Agricultural Greenhouses

Galvanized Steel Frame Large Glass Agricultural Greenhouses photo-1

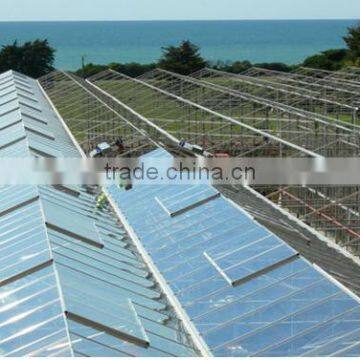

Galvanized Steel Frame Large Glass Agricultural Greenhouses photo-2

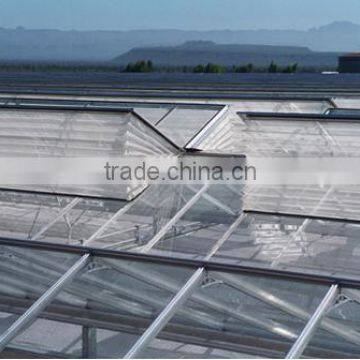

Galvanized Steel Frame Large Glass Agricultural Greenhouses photo-3

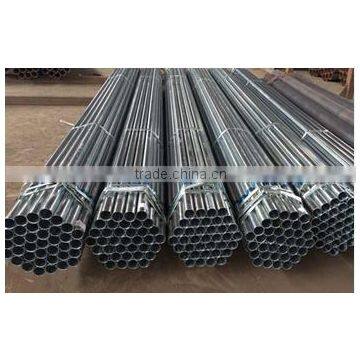

Galvanized Steel Frame Large Glass Agricultural Greenhouses photo-4

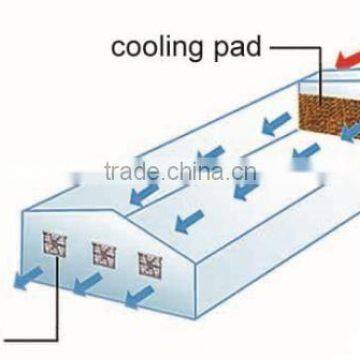

Galvanized Steel Frame Large Glass Agricultural Greenhouses photo-5
Galvanized Steel Frame Large Glass Agricultural Greenhouses photo-6
US$ 9 - 50 MOQ: 100 Square Meters
Key Specifications
Get Latest Price
Size:
Large
Type:
Multi-Span Agricultural Greenhouses
Cover Material:
Glass
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai & Guangzhou&Chongqing
Delivery Detail:
Delivery time depends on order quantity.
Size Large
Type Multi-Span Agricultural Greenhouses
Cover Material Glass
Model Number BLD-F
Place of Origin Sichuan, China
Brand Name BaoLiDa, BaoLiDa
Product Description



Quick Details

Size:
Large
Type:
Multi-Span Agricultural Greenhouses
Cover Material:
Glass
Model Number:
BL-12
Place of Origin:
Sichuan, China (Mainland)
Brand Name:
glass green house
Material:
PE and glass



Packaging & Delivery

Packaging Details:oversea packaging.in big roll or in carton
Delivery Detail:15-30days after getting deposit



          Specifications

  •

    Covering / mm

    4+8(A)+4 Double Glazing for all round, 5mm tempered Glass for the roof

    Span / m

    12m

    Type

    Venlo

    Pillar height / m

    5.0m

    Top Height / m

    6.0m

    Section / m

    8.0m

    Top windows

    One side Opening window





    Covering / mm

    Floating/Tempered Glass: 4mm, 5mm; Double glazing

    Span / m

    6.4 / 8.0 / 9.6 / 12

    Type

    Venlo, Arch

    Pillar height / m

    3.0--6.0 (OEM provided)

    Section / m

    4, 4.5, 5, 8

    Top windows

    Interlacing, Full-opened

    Side windows

    Sliding, Top-hung





     Features

    • Good light transmittance, the transmittance of single layer glass greenhouse up to 90%, the double glazing is 80%
    • Good water proof
    • Anti-age, anti-sweat large area for cultivating
    • Venlo, small roof not only makes the greenhouse beautiful, also provide high efficiency for users
    • Uniform illumination
    • Framework with double-face galvanizing processing, good anticorrosive effect
    • Good Draining ability
    • Greenhouse Configuration:

      Hot galvanized steel structure, Aluminized structure, Aluminized top windows, side windows, Exterior & Interior Shading nets, Wet pat and exhaust fan cooling system, Heating system, Irrigation system, Light supply system, Computer intelligent control system



    Model Number

  •  BL12.0-SS8, Venlo Type Multi-span Glass Greenhouse



    Span --12.0 m, section --8.0m, gutter height --5m, top height --6m



    Width (East--West) --18 x 12(span) =216m



    Length (North--South) --6 x 8(section) =48m



    The total area : 10368 m2



    Framework: Double Hot dipped galvanized steel and steel plate



    Cladding of Roof: 5mm Tempered Glass



    Cladding of Four sides: 4+8(A)+4 Double Glazing



    System includes: Natural ventilation, Forced cooling ventilation system, Exterior shading system, interior Energy Saving shading system, Circulation fans, Lighting system, Heating system, etc.







Supporting systems

.inside and outside shading

.ventilation system

.heating facilities

.irrigation system

.supplementary lighting

.seedbed, hydroponic facilities

.intelligent control system

components of the greenhouse:

Galvanized Steel Frame Large Glass Agricultural Greenhouses





Packaging & Shipping

The delivery time depends on details of the greenhouse project such as type,size,supporting systems etc.We will arrange production and delivery after all the information confirmed,and we will make strong packing to ensure the goods remain intact when reaching the destination.

Our Services

1.Reliable design:A powerful and creative team of design, research and development .we design the greenhouse according to the local climate and geographical condition.

2.Greenhouse installation:Engineers can be sent to your country for greenhouse installation.

3.Quality guarantee: We have strict quality control and mature technology ,our products have met the

national and the industry standard .All our exports will be strictly inspected before shipment.

4.One-to-one 24 hours full-time online service:any questions,please contact us.

5.After service:If any quality problems occurs within the guarantee period,we will take our responsibility

and provide on site service if needed.

Company Information

SiChuan BaoLiDa Metal Pipe Fittings Manufacturing Co.,LTD. is an integrated hightech enterprise dedicated to the greenhouse products R&D ,manufacturing and sales.Our company has built a lot of high quality  vegetable greenhouses ,flower greenhouses,seeding greenhouses,breeding greenhouses,greenhouse  plants and greenhouse ecological restaurants.Our Products were inspected by the national and provincial supervision,qualified by ISO9001, 2008 quality management system certification , we have produced and  installed all types of greenhouses more than 100 million square meters, After years of development,BaoLiDa has became a leader of the greenhouse industry.We survive on quality, reputation and development. If you have any question.please feel free to contact us. Galvanized Steel Frame Large Glass Agricultural Greenhouses
