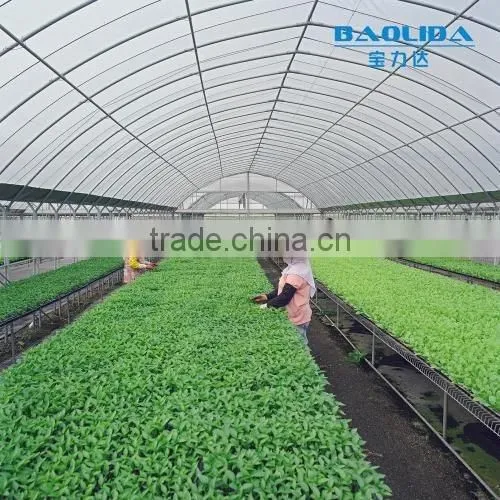

Help CenterMulti Span Polythene Film Covered Greenhouse for Vegetables
Related Products
-
Arch Pipes Plastic Tunnel Mushroom Used GreenhouseUS$ 2 - 6MOQ: 100 Square Meters -
BLD Tunnel Plastic Film GreenhouseUS$ 10 - 10MOQ: 100 Square Meters
-
Greenhouse With Shading System Controlled By Electric MotorUS$ 2 - 10MOQ: 1000 Square Meters
-
8m/9m/10m Single Span Tunnel Greenhouse For SaleUS$ 4 - 18MOQ: 1000 Square Meters
-
200 Micron Plastic Film Greenhouse For VegetablesUS$ 4 - 18MOQ: 1000 Square Meters
Main structure:hot dip galvanized steel pipes connected by appropriative connectors.All the pipes and are anti-rust treated.
Film:poly,pe, pvc film,single or double layer,different thickness according to the design.
Ventilation:manual or electrical roller
Irrigation:sprinkling or dripping irrigation
Sun shading:with or without inside and outside shading system,depending on the design.
| Greenhouse Covering | ||||
| Plastic Film | Thickness: 0.06mm,0.08mm,0.10mm,0.12mm,0.15mm,0.20mm | |||
| Poly Carbonate Anti-fog Sheet | Type | Thickness | UV side | Light Transmittance |
| 2-wall R-Structure | 8/10/12mm | 1/2 | 83%/82%/81% | |
| 3-wall R-Structure | 8/10/12/14/16/18/20mm | 1/2 | 73% | |
| 4-wall R-Structure /H-Structure | 8/10/12/14/16mm | 1/2 | 73%/58%/57%/56%/55%/53% | |
| Greenhouse Shading | Type | Shading rate | Fractional energy saving |
| Outside Shading Net | Black knitted net | 50%/65%/75%/85%/90% | 12%/20%/24%/28%/30% |
| Basic black knitted net | 50%/60%/70%/80%/85 % | 12%/18%/21%/25%/28% | |
| Folding black shading net | 70%/80%/85% | 21%/25%/28% | |
| Black -white shading net | 55%/65%/75%/85%/99% | 52%/62%/70%/80%/95% | |
| Green knitted shading net | 70% | 21% | |
| Inside Shading Net | Aluminum foil | 55%/65%/75%/85%/95%/99% | 53%/61%/67%/78%/84%/89% |
| Transparent insulation curtain | Light transmittance 80% | 45% | |
| Aluminum foil insulation curtain | 50%/65%/75%/85%/95%/99% | 53% /61% /67% /78% /84% /89% |
1. Framework structure
Hot galvanized steel.
Frame Structure Parameters
wind load : 0.35KN/m2 |
Width (6, 7, 8, 9… |
Snow load: 0.25kN/m2 |
Length (30, 40,50… |
Plants hanging load: 0.15KN/m2 |
Height (2.5-3.5m) |
Rainfall: 140mm3/h |
/ |
2. Size
Span: 8M, 9.6M,10.8M,12M
Section:4M,8M,12M
Gutter Height:3-6M
Roof Height:4-8M
3.Cover material
Single layer or double layer PE film, thickness : 80/100/120/150/180/200micron
Cover material Parameters
1. Reasonable in designing,simple in structure, convenient in construction.
2.Large space for easy operation.
3.Components are anti-corrosion and anti-rust.
4.Good heat preservation performance.
5.Light transmittance above 90%.
.inside and outside shading
.ventilation system
.heating facilities
.irrigation system
.supplementary lighting
.seedbed, hydroponic facilities
.intelligent control system
components of the greenhouse:
The delivery time depends on details of the greenhouse project such as type,size,supporting systems etc.We will arrange production and delivery after all the information confirmed,and we will make strong packing to ensure the goods remain intact when reaching the destination.
1.Reliable design:A powerful and creative team of design, research and development .we design the greenhouse according to the local climate and geographical condition.
2.Greenhouse installation:Engineers can be sent to your country for greenhouse installation.
3.Quality guarantee: We have strict quality control and mature technology ,our products have met the
national and the industry standard .All our exports will be strictly inspected before shipment.
4.One-to-one 24 hours full-time online service:any questions,please contact us.
5.After service:If any quality problems occurs within the guarantee period,we will take our responsibility
and provide on site service if needed.
SiChuan BaoLiDa Metal Pipe Fittings Manufacturing Co.,LTD. is an integrated hightech enterprise dedicated to the greenhouse products’ R&D ,manufacturing and sales.Our company has built a lot of high quality vegetable greenhouses ,flower greenhouses,seeding greenhouses,breeding greenhouses,greenhouse plants and greenhouse ecological restaurants.Our Products were inspected by the national and provincial supervision,qualified by ISO9001, 2008 quality management system certification , we have produced and installed all types of greenhouses more than 100 million square meters, After years of development,BaoLiDa has became a leader of the greenhouse industry.We survive on quality, reputation and development. If you have any question.please feel free to contact us.
