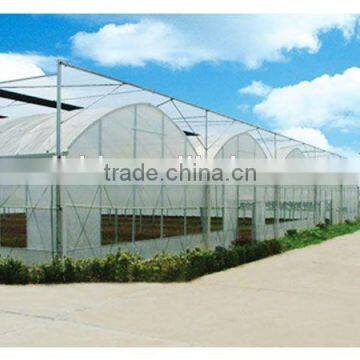

Help CenterChina Chengdu Low Cost Baolida Polythene Greenhouse PE Film Greenhouse
Related Products
-
High Quality Commercial/agricultural Used Film Covering Greenhouse for SaleUS$ 5 - 10MOQ: 500 Square Meters -
BLD Tunnel Greenhouse for Sale Simple Tunnel po Film GreenhouseUS$ 2 - 9MOQ: 200 Square Meters
-
SiChuan BaoliDa Blackout Greenhouse PE Film GreenhouseUS$ 3 - 16MOQ: 100 Square Meters
-
Balckout Greenhouse 0.08mm or 0.15mm PE Film Greenhouse Polythene GreenhouseUS$ 2 - 20MOQ: 200 Square Meters
-
Blackout Vegetable Greenhouse With Steel FrameUS$ 1 - 11MOQ: 300 Square Meters
SiChuan BaoLiDa metal pipe fittings manufacturng co,.LTD.is an integrated high-tech enterprise dedicated to the greenhouse product’s R&D ,manufacture and sales.With a solid foundation ,technical strength, advanced design concepts,rich experience and perfect after-sales service.Our company has built a lot of high quality vegetable greenhouses ,flower greenhouses,seeding greenhouses,Breeding greenhouses,Greenhouse plants and greenhouse ecological restaurants.
Our Products was inspected by the national and provincial supervision .qualified by ISO9001, 2008 quality management system certification and sold throughout the country, we have produced and installed all types of greenhouse more than 100 million square meters, we became the leader of the southwest greenhouse industry.BaoLiDa adhere to the "Times." "Pioneering and innovative" principle, "quality-oriented, service best" is our purpose.We will make unremitting efforts, full of enthusiasm, to provide you with quality services. Your satisfaction is our pursuit!
1:Main structure
Hot dip galvanized steel pipe
2:covering material : PE FILM greenhouse
3:The main unit
Planted tank:set on the bottom of the window, or as a lie between screen, for plant growth
Water supply system: Automatic water supply system , which could timely and adequate supply water;
Temperature control system:including fan, hot fan control box, temperature sensors and constant temperature system, in order to timely adjust temperature
Auxiliary lighting system:including fan, hot fan control box, temperature sensors and constant temperature system, in order to timely adjust temperature
Humidity control system:Humidity control system with fan and adjust humidity and reduce indoor temperature.3:cover material
plastic film, single layer coating or double layer coating
Technical data for greenhouse for sale
| Wind load | 0.35KN/m2 |
| Snow load | 0.25kN/m2 |
| Plants hanging load | 0.15KN/m2 |
| Rainfall | 140mm3/h |
| Venlo structure | |
| Structure span(m) | Roof span(m) |
| 6.4 | 3.2 |
| 8 | 4 |
| 9.6 | 3.2 |
| 10.8 | 3.6 |
| 12 | 4 |
| Ridge height: 3m~6m | |
| Cover material | Glass | PE film | Polycarbonate sheet |
| Product life | 15~20 years | 1~5 years | 10~15 years |
| Light transmission | 90% | 85% | 90% |
| Light stability | Excellent | Fair | Excellent |
| Heat insulation | Fair | Fair | Excellent |
| Maintenance | Replaceable | Reparable | Replaceable |
| Wind load: 0.50KN/m2 |
| Snow load: 0.25KN/m2 |
| High quality steel structure and long service life. All main parts are hot dipping galvanized after processing according to European standards, guarantee excellent anti-corrosion. |
| Prefabricated structure. All the parts can be easily assembled on the spot with joining parts and bolts and nuts, without any welding points to damage the zinc coating on the material, which guarantee the optimal performance of anti-corrosion. |
| The standardization production of all the parts |
| Ventilation configuration: roof vents and side vents, controlled by rack and pinion system |
| Application: |
| Commercial: you could build this kind of glass greenhouse for commercial purpose with the classical, elegant performance, good ventilation and viewing features. Such as, restaurant, office building, tourism and so on. |
| Agriculture: you could buil this kind of greenhouse for your agriculture plants. It can help your crops grow better and then improve your economic efficiency. |
1.Goodlooking and long service life
2. high transmittance:They possess fair surface polish and transparency,and solar energy in unit area can be attained its maximum advantage
3.energy saving: lower thermal conductivity than plastic film,so less heat loss.
4.impact resistance:PC sheets have the best impact resistance among all the thermoplastics,when broken ,they didn't shatter into pieces. Users always called PC sheets“unbroken glass”
5.good fire-retardant capicity :The products have been tested by National quality Supervision and Examination Center . They are the B1 level flame retardant materials to ensure safe and reliable.
| How to install the greenhouse? |
| The install drawings and instructions will be provided together with the goods, all you have to do is to make the fabricated glass greenhouse connected with the bolts and clumps. |
| U can send us pictures every time when u finish one step of the greenhouse installation, there will be someone always there for solving any question u may face. |
| The supervision of installation is also avilable |
if you have any question , please contact us anytime .
