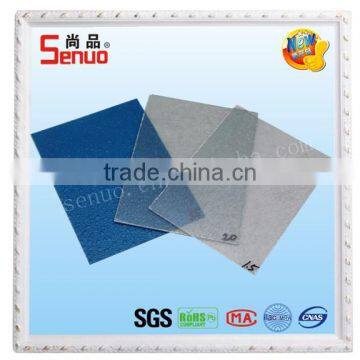

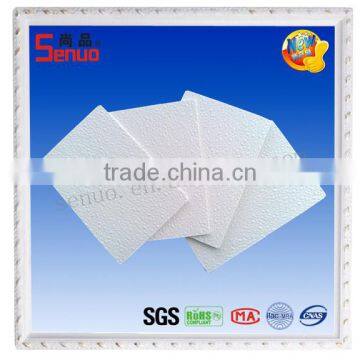

Specifications of Embossed Fiberglass FRP Plate :
1. High Quality FRP Embossed Sheet
2. UV Protection
3. High strength, good light transmission
4. Over 15-25 years guarantee with our products
Technical date :
Density |
1.45 g/cm3 |
Tensile strength |
75Mpa |
Fiber content |
25% - 35% |
Bending strength |
125Mpa |
Curing degree |
>82% |
Impact ductility |
90 KJ/M2 |
Weathering film thickness |
20-30μm |
Thermal conductivity |
0.158 W/m.k |
Light transmissivity |
3% - 85% |
Thermal expansivity |
2.6x10-5mm/mm/°C |
Suitable temperature |
-40~ +120 |
UV Resistance |
100% |
Thickness:0.8mm, 1.0mm, 1.2mm, 1.5mm, 1.8mm, 2.0mm, 2.2mm, 2.5mm, 3.0mm, tolerance ± 10%
Length: For easy transport, suggest using 5.6m or 11.8m
The Surface Film: With American Dupont Company 20μm Melinex301 film
Resin Composition: High quality resin, from American Ashland Company
Color: Clear blue, Light blue, Lake blue, Sky blue, Deep blue, Clear white, Solid white, Gray white, Black, Clear green or Customizable
Guarantee: 15-25 years according to the thickness of product
FRP Embossed Sheet Brief Description:
1). Anti-aging resin, longer duration of use.
2). Strong UV protection
3). High light transmittance
4). Less bubbles, good impact strength and flexural strength to withstand typhoons and hail hit.
5). Good Performance of film, flat and smooth. Dust is easy to be removed.
6). High-quality E-glass fibers, good light transmittance and water resistance
7). Good corrosion resistance, suitable for acid and alkali environment.
8). Even thickness, consistent mechanical properties.
Fire-retardant: the fire-retardant of FRP embossed sheet is divided into ordinary grade I and grade II . Grade I oxygen index with fire retardant is ≥30, the grade Ⅱ fire retardant is ≥26. It meets the standards of the fire brigade department.
Application : Factories, warehouses, car parks, agricultural, freezer, food processing plants, restaurants, laboratory, heat-insulation sheds, weather corridors, lighting sheds, sun sheds, greenhouses, etc.
Contact:
1. We want to make the frp embossed sheet with wave shape, whether can make it?
------- Yes, Sennuo Company can provide the OEM service.
2. How do you pack?
------- Sennuo Company pack the sheet with roll shape, and using the wood in normal, the wood can do the fumigation. Also we can pack the goods according to our client’s require.
3. How many colors you have? Whether you can make the color according to our sample?
------- 10 colors you can choice, also Sennuo can make the color as our client’s require.
4. What’s your delivery day?
------- 7-10 days in normal.
5. We need to make the sample, whether it is free?
------- The client need to pay the sample cost at first, when they order a full container goods, we will return the sample cost to them. So, it mean that the sample cost is free.
