High Efficiency Automatic Water Bottling Filling Liquid Filling Machine for SALE
1. Working principle of Automatic Water Bottling Filling Liquid Filling Machine :
When bottles are sent to the machine by conveyor continuously, they firstly are deliveried to the receiving wheel by air-slide conveyor and then to washing part. The bottle clamps hold the bottles and trun over 180°to wash, then return back to their original position after enough washing and drying. Then, the bottles are sent to the middle thumb wheel 1 and to the filling part to be filled, then moved by middle thumb wheel 2 and reach to capping part to be capped, at the same time, cap trimmer sends caps to the top of the bottles and capper screws caps. At last, bottles are sent to the conveyor chain by the out stirring wheel to next working position.
2.Main characteristic of Automatic Water Bottling Filling Liquid Filling Machine :
1. Adaptability is wide: Because all parts have a height adjust device, the height of bottle can be adjusted within the range of 120~320mm, the diameter can be adjusted within the range of Φ40-100mm.
2.Production capacity can be adjusted continuously: using a frequency inverter to control the speed. So it works more reliable.
3. This machine has a complete set of reliable protection system to protect the machine itself and the operator.
4. Compare with similar type of machine, it has following performances:
5. More compact in structure, more beautiful in appearance.
6. The structure of bottle rinsing clamp is more delicate.
7. Screw head uses magnetic parts.
Details of Automatic Water Bottling Filling Liquid Filling Machine
Parameters of Water Bottling Filling Liquid Filling Machine for SALE(Several models of)
model |
capacity | Bottle height | Filling precision | Filling number | Total power |
Dimension |
SWCP-24 | 6000BPH | 100-300mm | ±1% | 24 | 1.5KW | 1350x1200x2200mm |
SWCP-18 | 4000BPH | 100-300mm | ±1% | 18 | 1.5KW | 1350x1200x2200mm |
SWCP-12 | 3000BPH | 100-300mm | ±1% | 12 | 1.5KW | 1350x1200x2200mm |

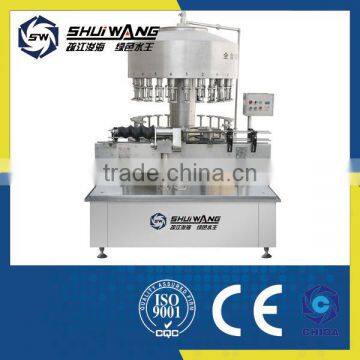

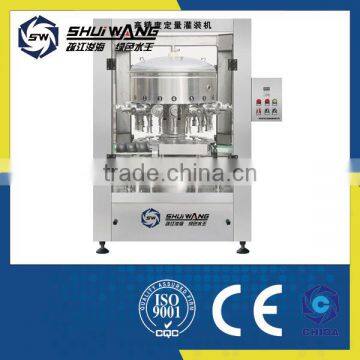

Pictures of Automatic Water Bottling Filling Liquid Filling Machine

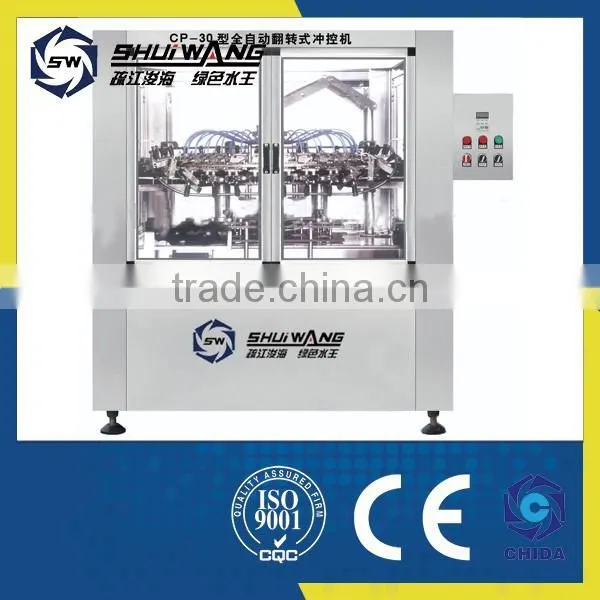

1. bottle brushing machine

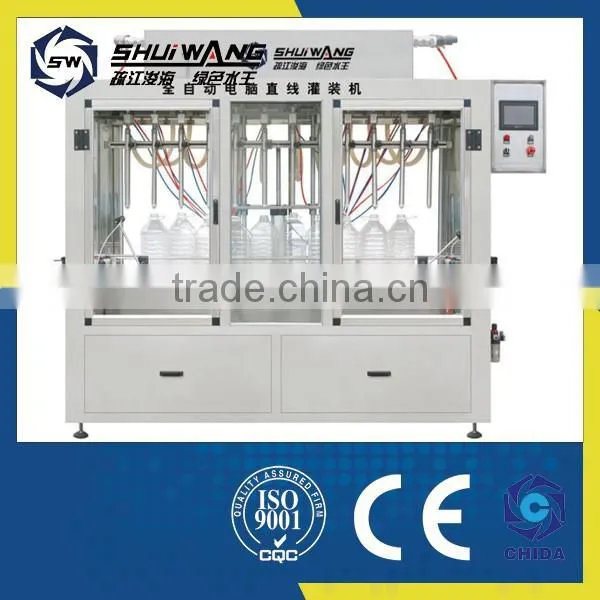

2. Linear filling machine of Water Bottling Filling Liquid Filling Machine for SALE

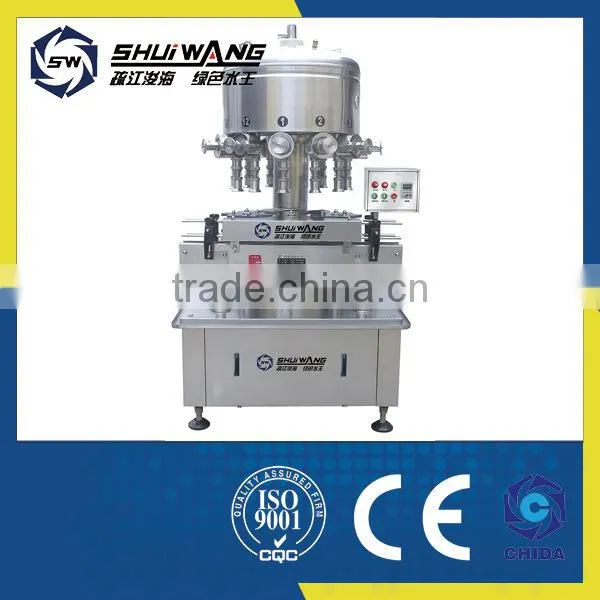

3. Wine filling machine of Water Bottling Filling Liquid Filling Machine for SALE
4. sealing machine
What we could do for you:
Here we could supply one-package service for every customer, from beginning to consult to whole machines trial running,including staff training.
Customers just need inform what you have in hand & and what you want to get.The rest all we will supply & finish for you.
♦Pre-sale services:Passion &thoughtful
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
♦Sale services:Oversea Technicians
Oversea technicians will be sent to the jobsite for guiding the installation training operators and finishing the check and accept together with you.
♦After-sale services:Faithfulness
One year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
1. Q: Can I visit your factory?
A: Yes. Many domestic and overseas customers visited our factory every year.
2. Q: What about the warranty of your equipment? Do you supply spare parts?
A: Our warranty is one year(12 months), and we can supply spare parts also.
3. Q: Do you provide after-sales service?
A: Yes. We have a professional after-sale service team to promptly and thoroughly solve your problems.
4. Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
