Reliable Reputation Hydraulic Suction Dredger For Sale
Details of Sand Suction Pontoon Boat with Dredging Pump for sale
Parameters of Sand Suction Pontoon Boat with Dredging Pump for sale
| Principal Dimensions and Characteristics(CUSTOMIZED) | ||
| Hull Length: | 13.00 m | 43 feet |
| Hull Width: | 5.00 m | 16 feet |
| Hull Depth: | 1.42 m | 5 feet |
| Main Pontoon: | 11.00 x 3.0 x 2.20 m | 36 x 10 x 7 feet |
Side Pontoon: | 13.00 x 1.00 x 1.5 m | 43 x 3 x 5 feet |
Dredging Depth (max.): | 15 | 49 feet |
| Total Weight: | 55 tonnes | |
| Diesel Fuel Capacity: | 10,000 liters | 2,642 gallons |
| Main Engine | ||
| Make/Model: | Cat / D379 B | |
| Power @ 1,200 RPM | 427 kW | 573 hp |
| Auxiliary Engine | ||
| Make/Model: | Cat / 333C | |
| Power: | 12 kW | 150 hp |
| Dredging Pump | ||
| Make/Model: | Shijiazhuang | |
| Suction Diameter: | 350 mm | 14 inches |
| Discharge Diameter: | 300 mm | 12 inches |
| Nominal Pump Capacity Range (up to): | 1,500 cubic meters/hr | 1,962 cubic yards/hr |
| Cutter | ||
| Make/Model: | Hydraulic Harderwijk | |
| Power: | 75 kW | 100 hp |

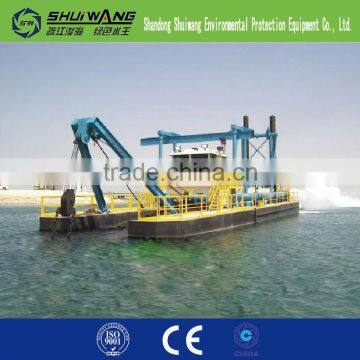

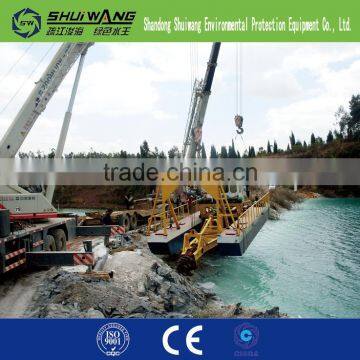

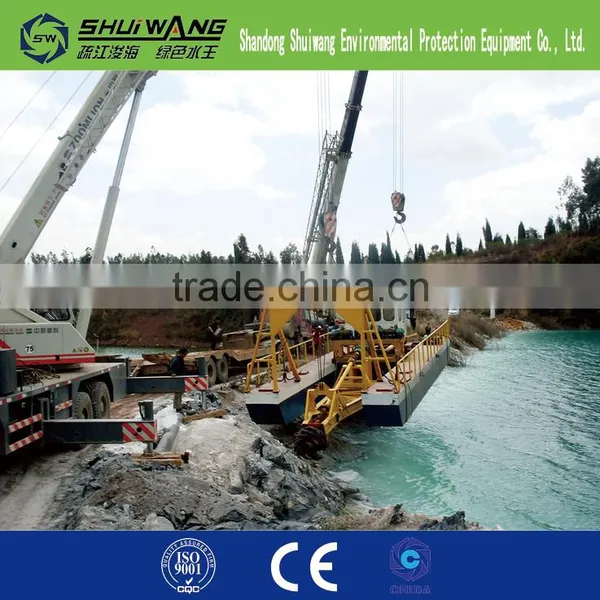

Photos of Hydraulic Suction Dredger for sale
| SW Sand Suction Pontoon Boat with Dredging Pump for sale is well used worldwide.And we are supplier of China Railway Group Limited and many domestic and foreign engineering projects. |
| SW Sand Suction Pontoon Boat with Dredging Pump for sale has been shipped partly dismantled to worldwide to facilitate transport. |
| The cutter is directly driven by a hydraulic 55 kW motor with continuous variable rpm. And replaceable cutter teeth which can be adapted for dredging |
| The dredger is fitted out with a highly efficient dredging pump equipped with a mechanical shaft seal and replaceable wear parts. |
| The total installed power ensures that all functions on board can work independently and simultaneously. |
| All SW-CSD operating cabins are equipped for easy operation. |
| The dredge master has an excellent view from the operating cabin. |
| The heavy duty 40 kN side wire winches ensure efficient dredging operations at any location. |
What Features of Trailing Hopper Suction Dredger for sale
1)Completed assembled and fully tested afloat before delivery.
2)Simple, rapid assembly and dismantling.
3)Reliable hydraulic system.
4) Ready for operation on arrival at site.
5)Eifficient fuel consumption.
6)One-man operation.
7)Wide range of optional equipment avaiable.
What Specifications of Hydraulic Suction Dredger for sale
1) ZC class standard of PRC
2) Our two engineers will be sent to instruct the installation and test, also be responsible for training.
What Applications of Hydraulic Suction Dredger for sale
1) Construction Dredging
2)Environmental Dredging
3)Mining Dredging
4)Navigational Dredging
5)Restoration Dredging
6)Specialty Dredging
Trade Terms:
1.Payment:30% T/T in advance, 30% T/T for production,40% T/T before shipment
2.Delivery Time: Within 90 days after receiving your advanced payment.
Our Certifications:
Comany View:
Why Choose US?
Our service:
1. Shuiwang Field Service.
Shuiwang field service engineer can assist on-site with reassembly and commissioning.
Engineer training and techinical assistance can also be done locally.
2.Spare Parts Services
With our years of experience we have established strong buying power and an extensive supplier network.By expanding our network of global service hubs,we are able to shorten our response times.Our service goes beyond fast part delivery.
3.Good Quality
To minimise lifecycle costs and to improve an equipment's performance,it's crucial to have the right spare parts.
4.Design Service
Clients can take the design-only option and have the system built by others.
Other Products:
1.Gold mining plant
2.Generator set
3.Amphibious excavator(Swamp buggy)
4.Sand pump
5.Wheel loader
