shuiwang large capacity sand dredger
The dredger is dismountable and can be easily transported to any location.
With its robust design, it is the preferred choice in its class due to low maintenance,
excellent fuel consumption and high productivity levels.
Features
Eficiency and high performance
Eine mounted in the centre pontoon for protection and low noise levels
Drable heavy-duty marine engine
Safe and robust pump drive
| Technical Parameters | ||||||
| Types | SW-CSD150 | SW-CSD250 | SW-CSD300 | SW-CSD400 | SW-CSD500 | SW-CSD750 |
| Productivity Flow(m³/h) | 150 m³/h | 250 m³/h | 300 m³/h | 400 m³/h | 500 m³/h | 750m³/h |
| Water flow rate (m³/h) | 800 m³/h | 1200 m³/h | 2000 m³/h | 2800 m³/h | 3500 m³/h | 5000m³/h |
| Dredging depth(m) | 9 m | 10 m | 14 m | 15 m | 16 m | 18 m |
| Overall length(m) | 21 m | 25 m | 35 m | 36 m | 40 m | 44 m |
| Hull length(m) | 14 m | 18 m | 25 m | 26 m | 28 m | 35 m |
| Hull height(m) | 1.6 m | 1.6 m | 1.8 m | 1.8 m | 2.0 m | 2.8 m |
| Hull width(m) | 4.7 m | 5.2 m | 6.0 m | 6.0 m | 7.8 m | 8.8 m |
| Main engine power(kw) | 330 Kw | 450 Kw | 720 Kw | 900 Kw | 1000 Kw | 1200 Kw |
| Discharge distance | 1000m | 1200m | 1500m | 1500m | 1500m | 3000m |
| Cutter head diameter(m) | 1.0m | 1.2m | 1.5m | 1.5m | 1.7m | 1.8m |
| Suction/discharge pipe diameter(mm) | 250/200 mm | 300/250 mm | 350/300 mm | 450/350 mm | 600/450 mm | 650/500 mm |
| Operation system | PLC system, mechanical operation system | PLC system, mechanical operation system | PLC system, mechanical operation system | PLC system, mechanical operation system | PLC system, mechanical operation system | PLC system, mechanical operation system |

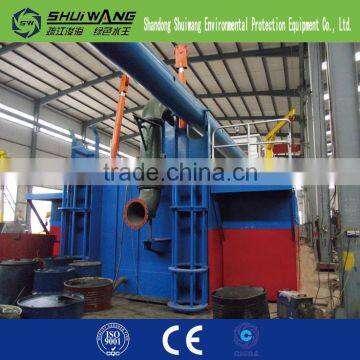

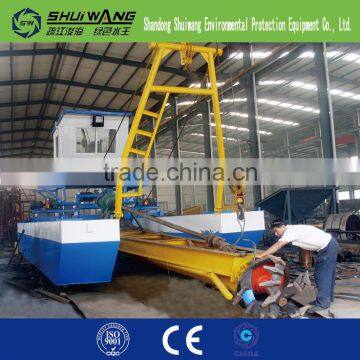

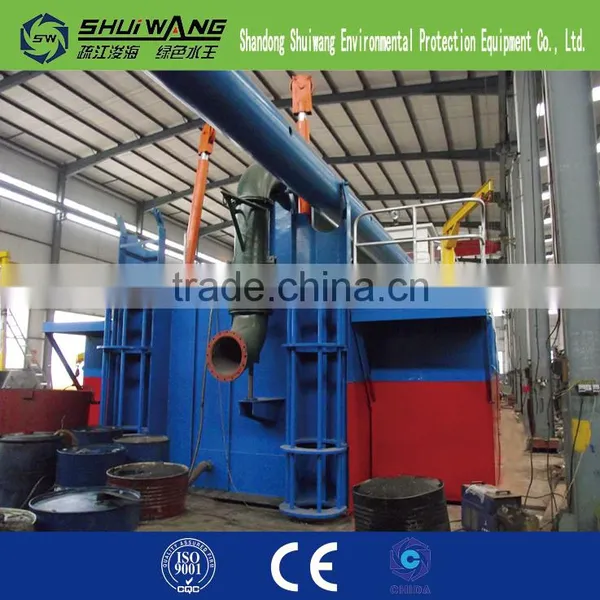

in factory

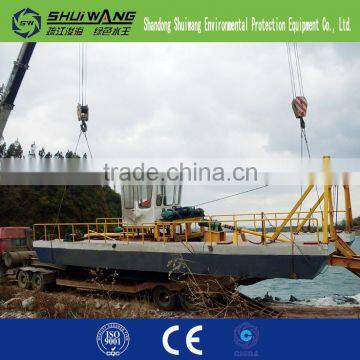

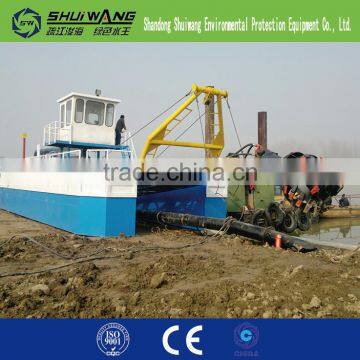

work site
Advantages
Reliable and efficient
The SW CSD is well known for its robust construction, reliable operation and excellent performance.
Transportable and deliverable from stock
SW CSD dredgers can be dismantled for transport via road, rail or sea.
A wide range of optional equipment is available, as well as complementary auxiliary equipment.
Service and support
Shuiwang company can provide a complete package of spare parts, maintenance support,
equipment training programmes, dredging advisory services and dredge operators for hands-on instruction and commissioning.
Shandong Shuiwang Environmental Protection Equipment Co., Ltd.are specialized in high-standard sand washing machinery, amphibious excavator,submersible sand pump,diesel and gas generator and other mechanical equipment.
We have a 17000 square meters production base,20 technical staff ,5 senior.The company have good relationship with Guangzhou university,Guangxi metallurgy institute and other university or institute ,have passed ISO9001.
With the principal “capability will tell,credibility will win”,Shandong Shuiwang Envirommental Protection Equipment Co.,Ltd strives to provide best sevice to customers,more and more qualified products to customers.
Shuiwang company can provide a complete package of spare parts, maintenance support,
equipment training programmes, operating advisory services and operators for hands-on instruction and commissioning.
1.Guarantee period: 1 year after the date of completion of unloading of the goods at the
port of destination.
2.After the warranty expires,our company promises that we will provide a pay-needed
maintenance service for life.
