chain bucket sand/alluvial mining dredger sea sand dredger
chain bucket sand dredger production description:
This product design and built by customer demand,this dredger structure is assemble structure.
Chain bucket sand dredge work principle and work flow:mining system under the power of bridge,by four corners wheel and slow down reducer as main drive wheel,under the pentagon as a drive wheel,the buckets will fixed on the chain by screw,under four wheel mining mine.Through feeder plate raw material will go to roller sieve,when raw material in roller sieve after washing and screening,≥20 mm raw material by rolller sieve and at same time will enter bottom funnel by one belt conveyor be bransport out.And the left <20mm small materials by high pressure water rushing,sieving,stir ,by the bottom funnel enter collection box.By inside collection box pump by pipeline transport to right place.
suits work area inland rivers and work site mining place | |
2.2 work soil mine as the main consider place.Mine no bonding,loose,and big gravel ≤20% | |
| 3 main technical data | |
| main dimension | |
| dredger whole length | 28m |
| single pontoon width | 1.8m |
| dredger whole width | 5.4m |
| dredger pontoon height | 1.2m |
| draft | 0.8m |
| center pontoon | |
| length | 6m |
| width | 1.8m |
| pontoon height | 1.2m |
| main use steel plate:bottom plate use 5mm,side plate use 5mm,face plate use 4mm | |
| 3.2 function | |
| Mining depth(when bridge with river bottom Angel is 45º) | max.mining depth 15 m |
| production capaci | 80-100cubic meters/hr |
| 3.3 main parts brand | |
| 3.3.1 120KW generator set 1 head (customer can buy by your need) | |
| 3.3.2 (bucket power parts) | |
| power | 55KW-8 |
| slow down reducer | ZQ1000 |
| 3.3.3 bridge lift up and down structure | |
| reducer model | ZQ500 |
| motor power | 15KW |
| structure:bottom use 20mmH steel,up use 12mm channel steel,column use 12mm channel steel,2 side use 5mm steel welding structure | |
| 3.3.4 main bucket and chain parts | |
| mining bucket model | WD-70 |
| bucket bottom 8mm,bucket hoarding use 5mm,bucket guard board use 10mm manganese steel plate | |
| chain | 750×110×40 mm (high manganese steel) |
| bucket number | 82 |
| 3.3.5 main frame and other frame | |
| main frame height | 3.5m |
| use steel | 20mmH steel |
| 3.3.6 winch (3 heads) | |

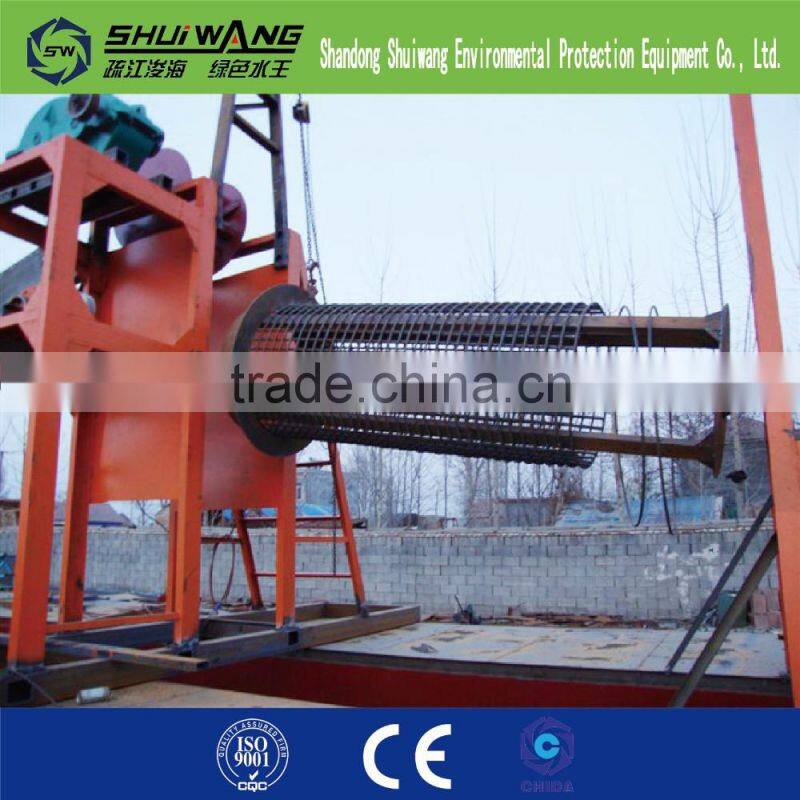

| 3.3.7roller sieve | |
| Model | CTB-1300 |
| dimension | 1300*1600 |
| motor power | 5.5KW |
| slow down reducer model | ZQ250 |
| 3.3.9 transport system | |
| sand pump model | 10 inch pump |
| water flow | 750m3/hr |
| lift | 25m |
| discharge pipeline diameter | 200mm |
| diesel engine | weichai huafeng engine |
| power | 155KW |

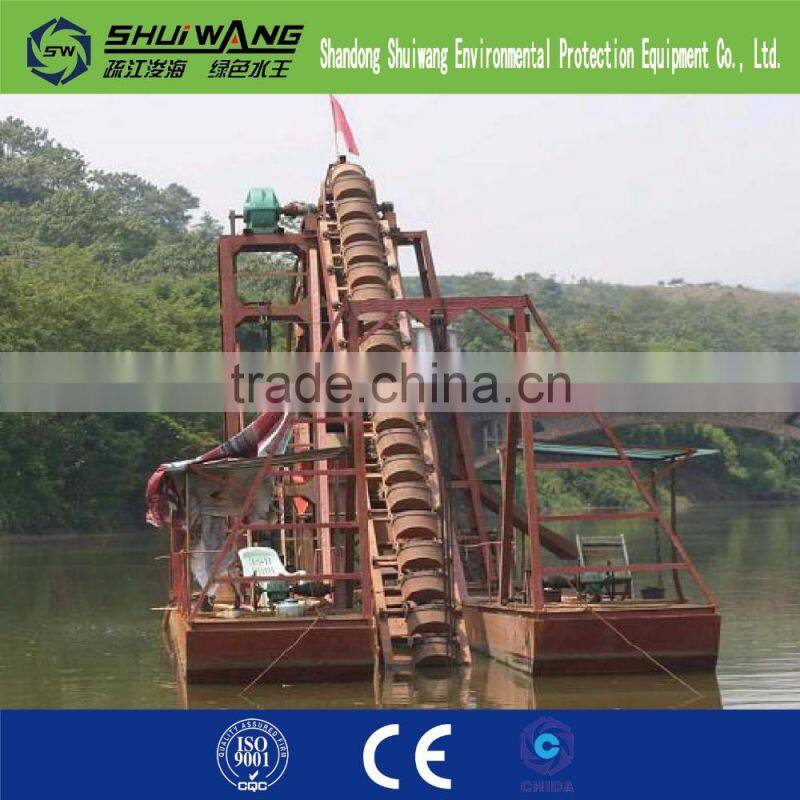

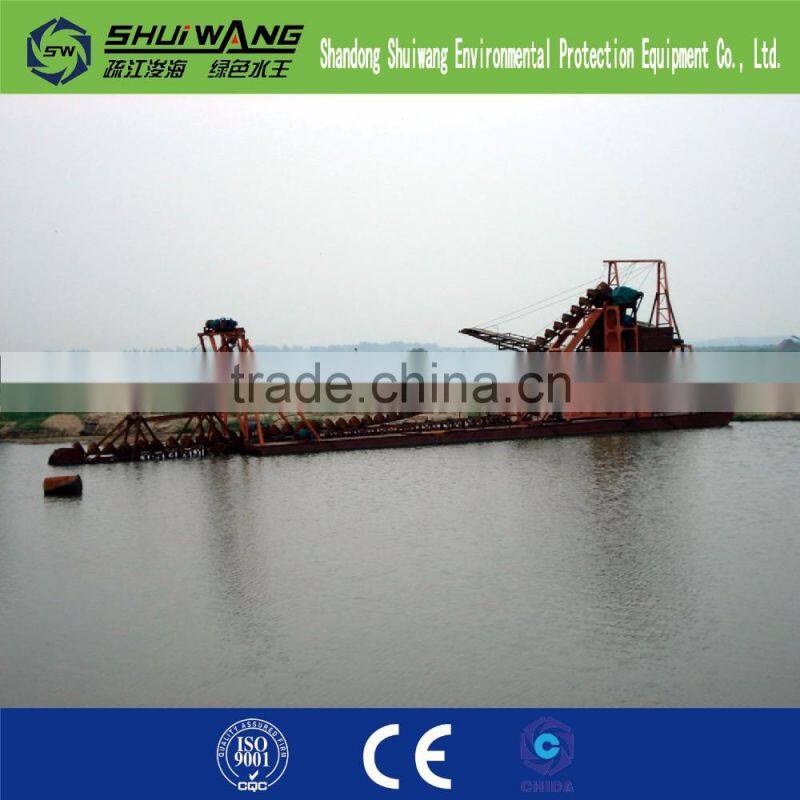

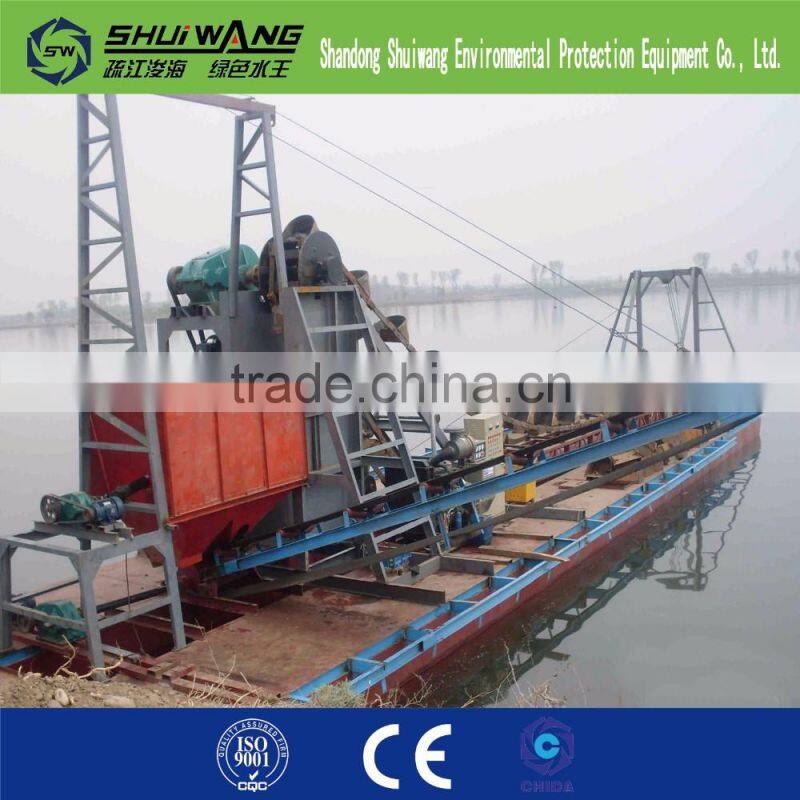

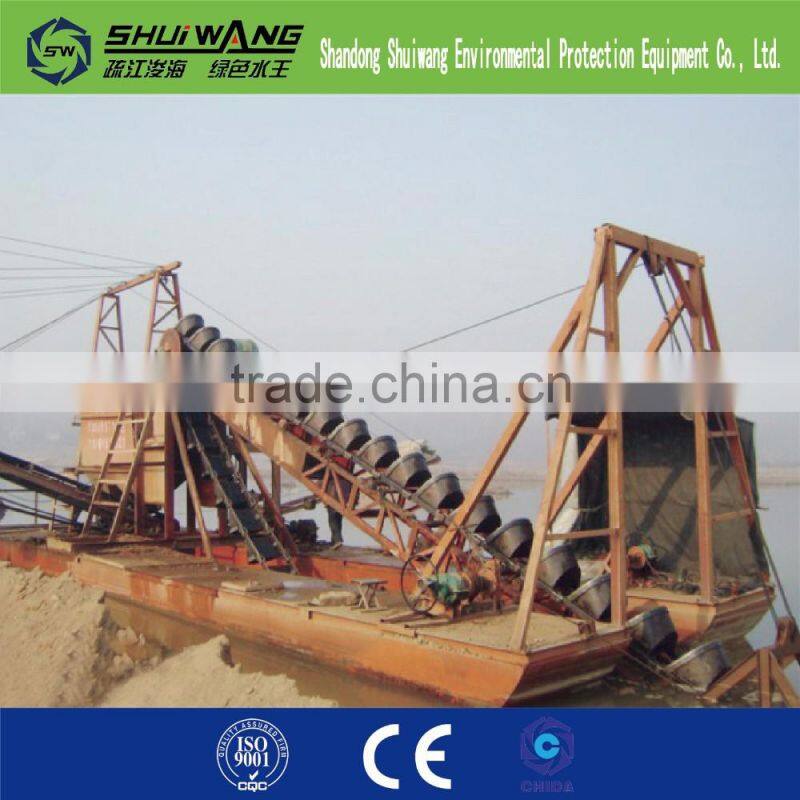

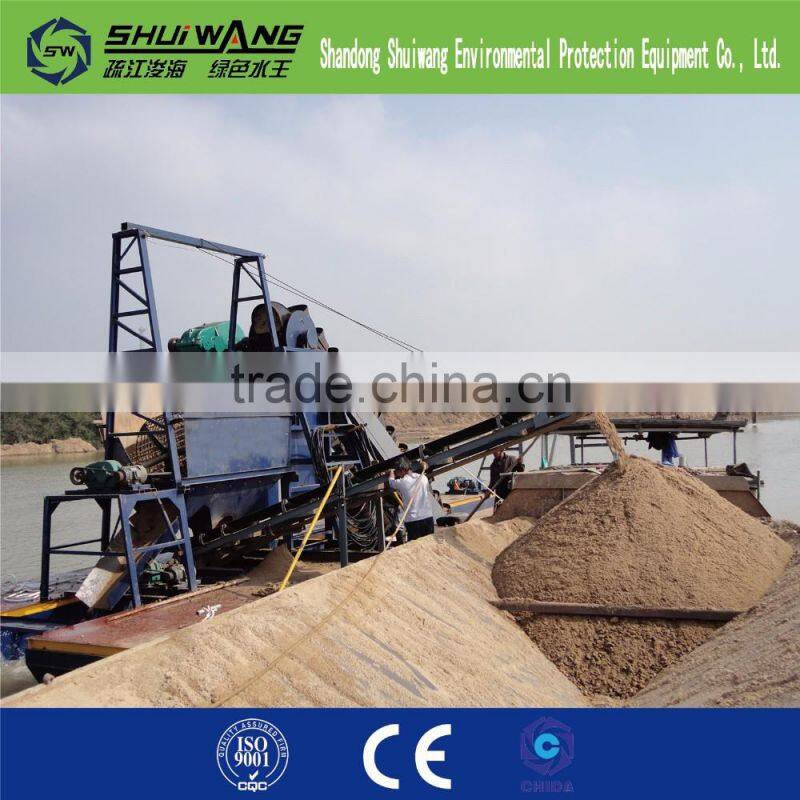

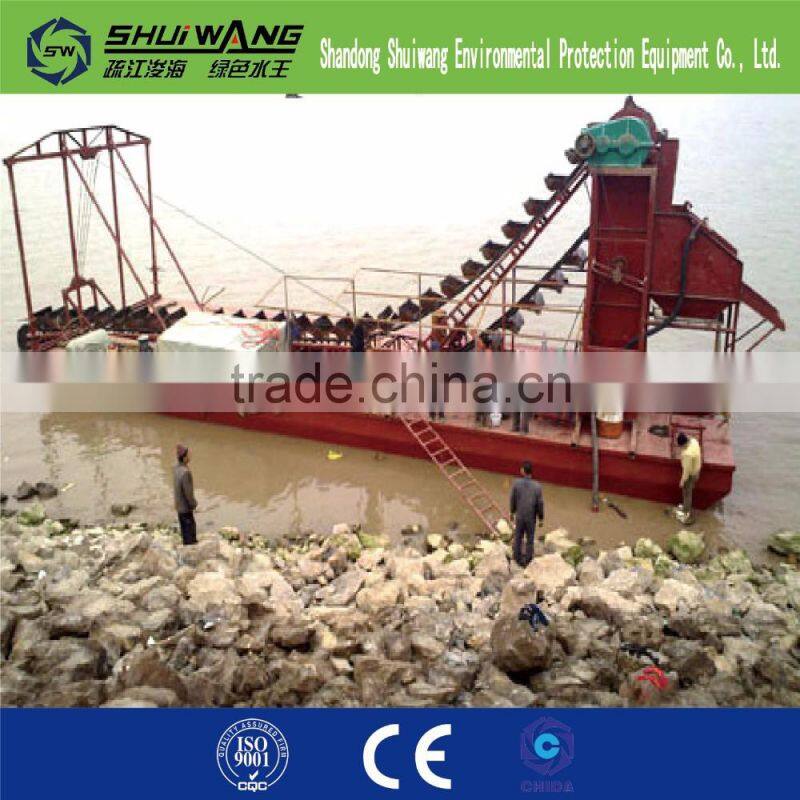

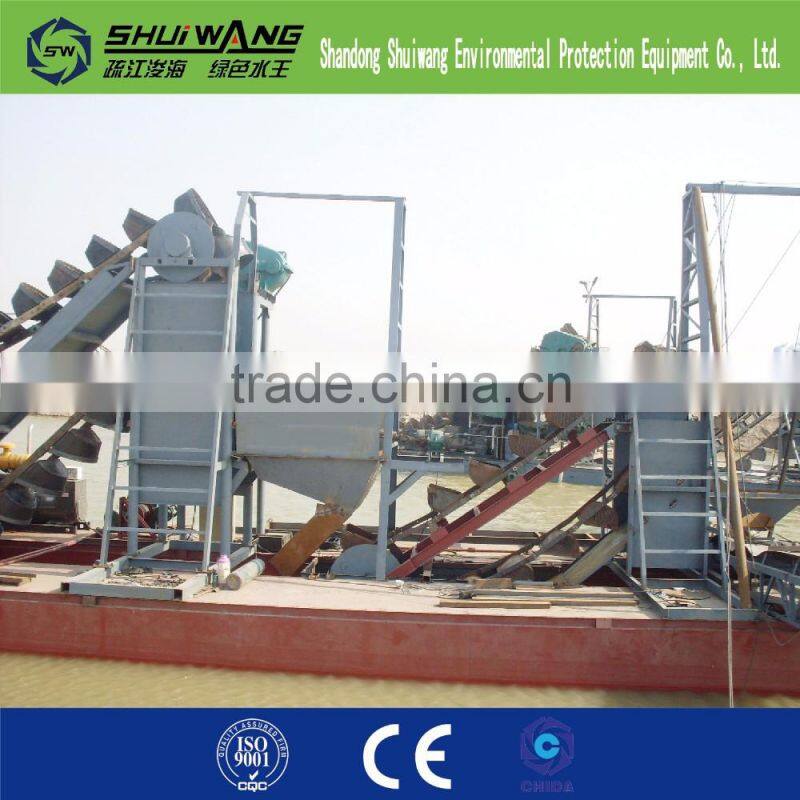

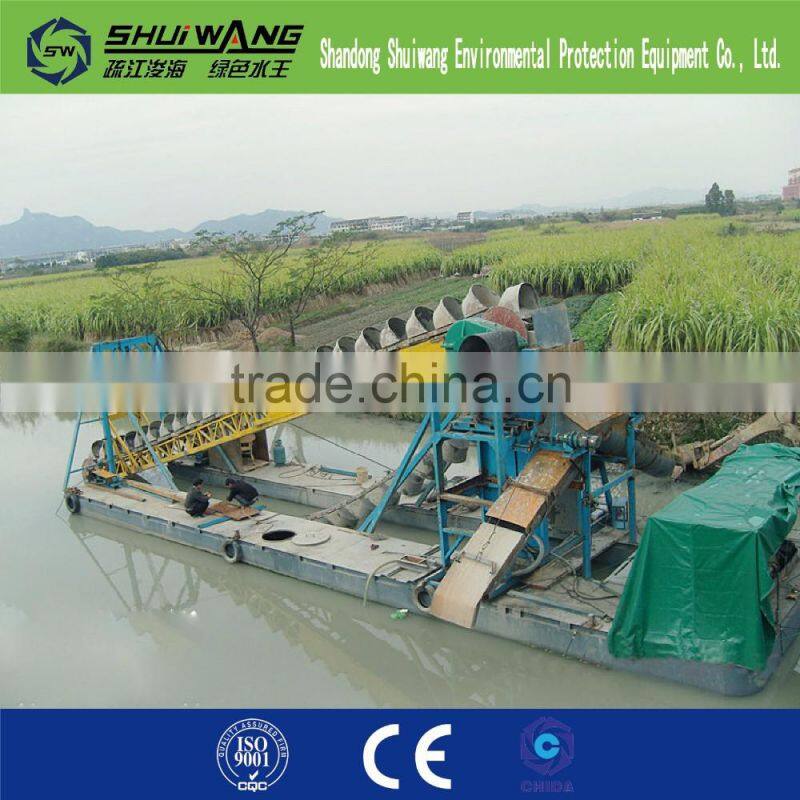

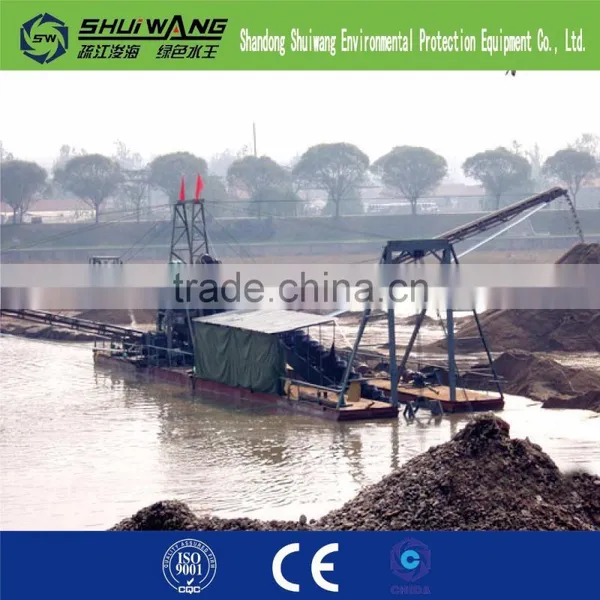

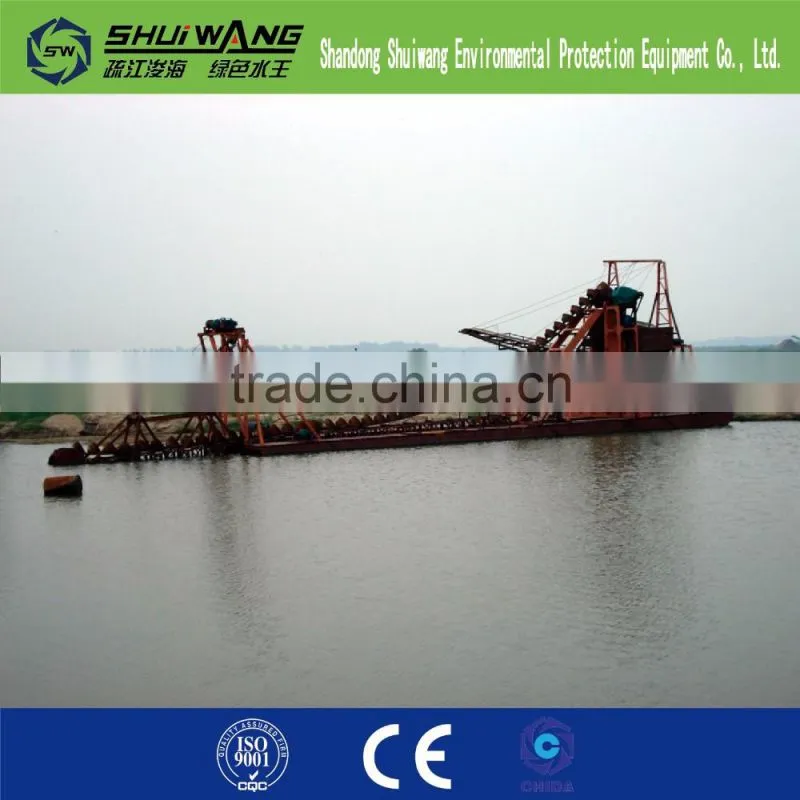

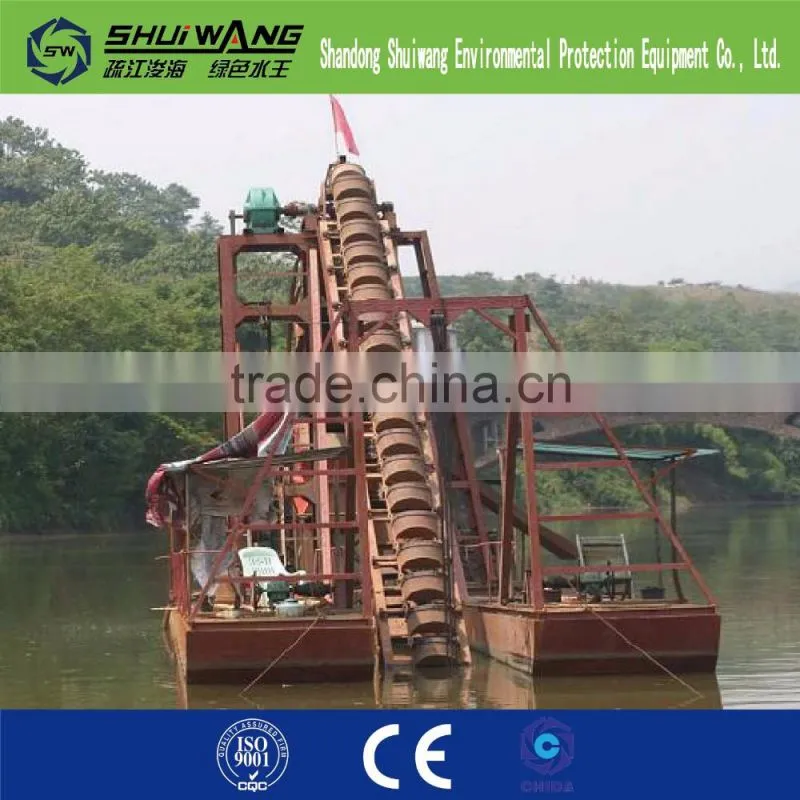

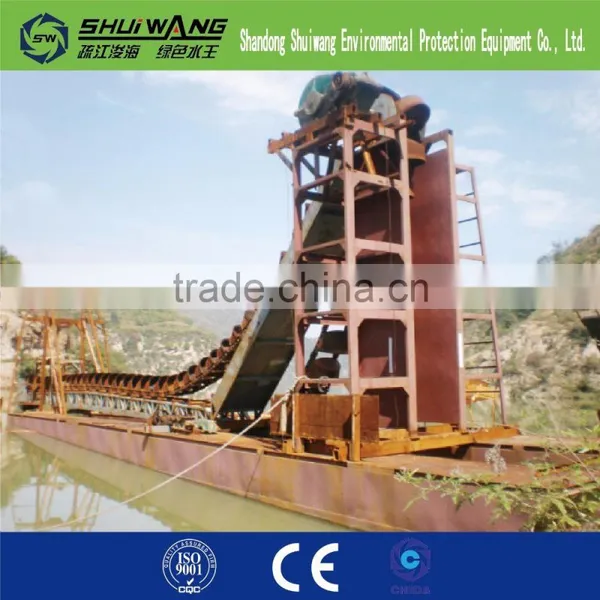

Chain bucket sand dredge working picture:

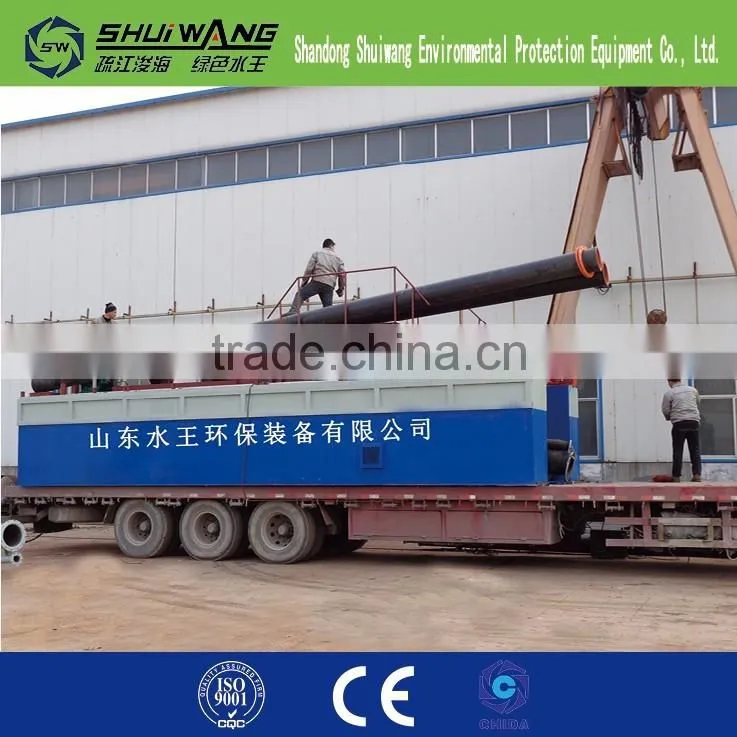

chain bucket sand dredge packing & shipping:
chain bucket sand dredger our services:
1 we have very prfessional engineer in this industry ,the engineer will give you some suggestion.
2 our workers in this industry have many years experiences.
3 we have 1 years warranty time.
4 we can give you guide installation.

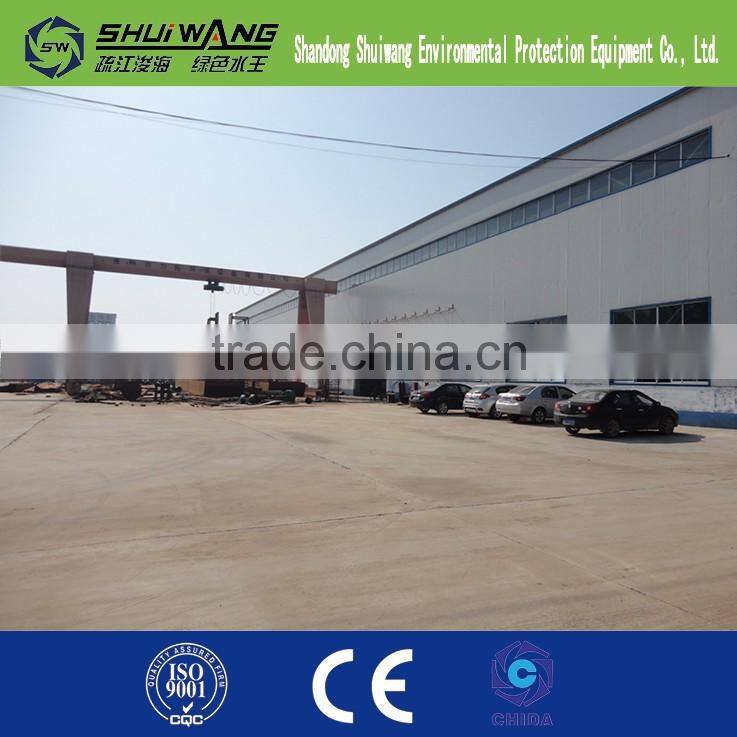

company information
FAQ:
dear sir,before you send inquiry to me,please first tell me how many tons finish sand you need deal.Your work site picture.
