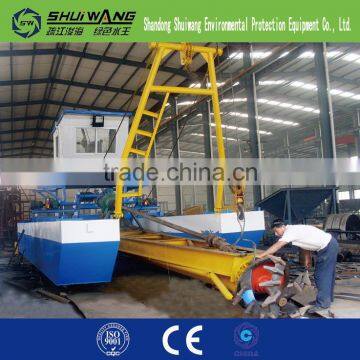

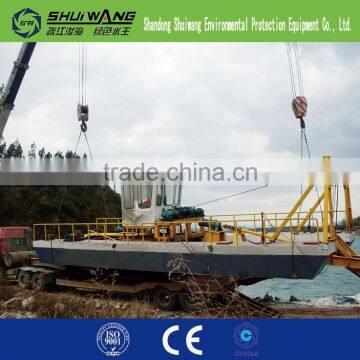

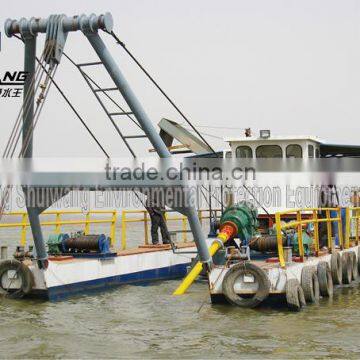

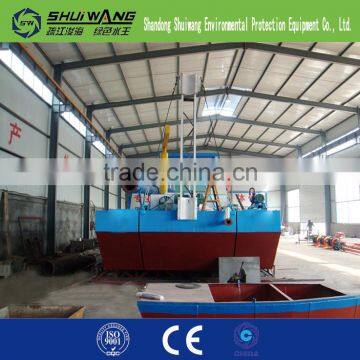

customized suction dredger cutter suction dredger
- 2 Set / Sets per Month
- Qingdao
- bucket wheel excavator 2000m3/h-7000m3/h
- bucket wheel excavator 500m3/h-7000m3/h
- bucket wheel excavator 500tph-2500tph
- 2021 Hot newest small 350 1000m3 Cutter Suction Dredger
- Hot Newest Sand Suction Dredging Boat Dredger for Sale Engineers Available to Service Machinery Overseas Customized Provided MAP
- Sand Dredging Machine 2021 Hot Newest Small 12 Inch Cutter Suction Dredger Engineers Available to Service Machinery Overseas MAP
Product Details
Condition: | New | Type: | Cutter Suction Dredger | Power Type: | Diesel |
Dredging Depth: | 7 m | Draught: | 3 inch | Place of Origin: | Shandong, China |
Brand Name: | Shandong Shuiwang | Model Number: | SW-CSD150,SW-CSD250,SW-CSD300,SW-CSD400,SW-CSD750 | Dimension(L*W*H): | 52.5ft*18.4ft*5.25ft |
Weight: | 180 tons | Certification: | ISO9001/ZC | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

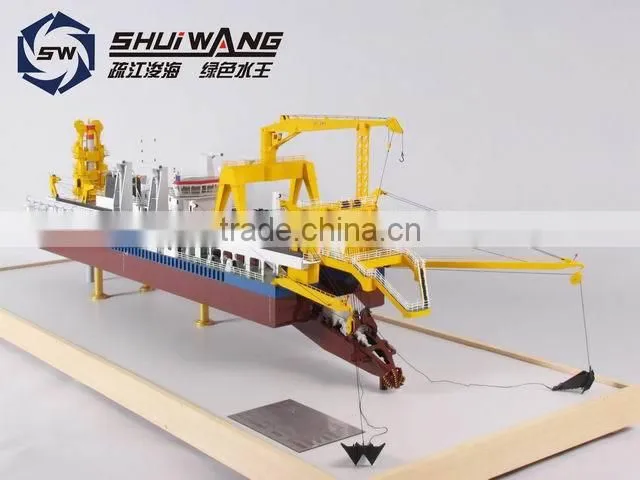

China customized suction dredge
Shandong Shuiwang Environmental Protection Equipment Co., Ltd.are specialized in high-standard sand washing machinery, amphibious excavator,submersible sand pump,diesel and gas generator and other mechanical equipment.
We have a 17000 square meters production base,20 technical staff ,5 senior.The company have good relationship with Guangzhou university,Guangxi metallurgy institute and other university or institute ,have passed ISO9001.
With the principal “capability will tell,credibility will win”,Shandong Shuiwang Envirommental Protection Equipment Co.,Ltd strives to provide best sevice to customers,more and more qualified products to customers.
There is six types of Cutter suction dredger in Shandong Shuiwang Environmental Protection Equipment Co., Ltd.
As the table:
Technical Parameters | ||||||
Types | SW-CSD150 | SW-CSD250 | SW-CSD300 | SW-CSD400 | SW-CSD500 | SW-CSD750 |
Productivity Flow(m³/h) | 150 m³/h | 250 m³/h | 300 m³/h | 400 m³/h | 500 m³/h | 750m³/h |
Water flow rate (m³/h) | 800 m³/h | 1200 m³/h | 2000 m³/h | 2800 m³/h | 3500 m³/h | 5000m³/h |
Dredging depth(m) | 9 m | 10 m | 14 m | 15 m | 16 m | 18 m |
Overall length(m) | 21 m | 25 m | 35 m | 36 m | 40 m | 44 m |
Hull length(m) | 14 m | 18 m | 25 m | 26 m | 28 m | 35 m |
Hull height(m) | 1.6 m | 1.6 m | 1.8 m | 1.8 m | 2.0 m | 2.8 m |
Hull width(m) | 4.7 m | 5.2 m | 6.0 m | 6.0 m | 7.8 m | 8.8 m |
Main engine power(kw) | 330 Kw | 450 Kw | 720 Kw | 900 Kw | 1000 Kw | 1200 Kw |
Discharge distance | 1000m | 1200m | 1500m | 1500m | 1500m | 3000m |

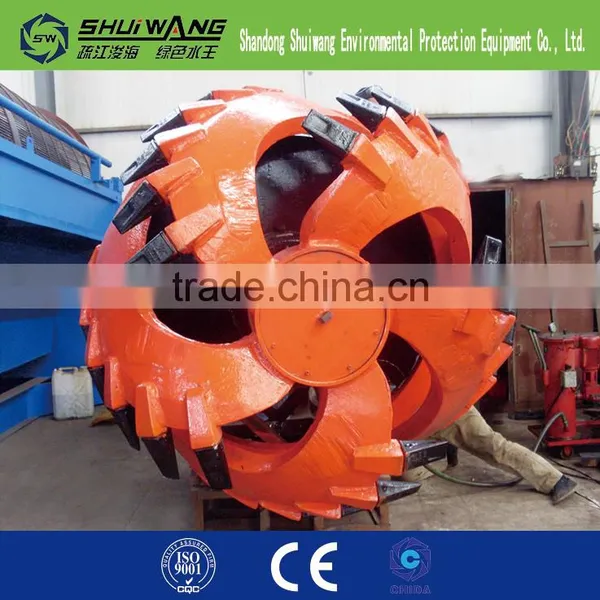

Cutter head diameter(m) | 1.0m | 1.2m | 1.5m | 1.5m | 1.7m | 1.8m |
Suction /discharge pipe diameter(mm) | 250/200 mm | 300/250 mm | 350/300 mm | 450/350 mm | 600/450 mm | 650/500 mm |
Operation system | PLC system , mechanical operation system | PLC system operation system | PLC system, mechanical operation system | PLC system, mechanical operation system | PLC system, mechanical operation system | PLC system, mechanical operation system |
Overseas client : Products discussion:

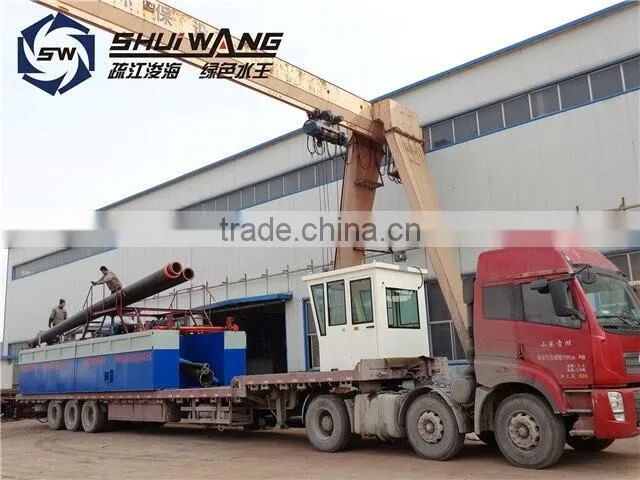

Products transportation:
we can supply what you want
Whatsapp:+8618766252962
