6 Ton Chinese Wheel Loader
6 ton chinese wheel loader
product description:
China Ⅱ emission engine,optimize power system,improve lift ability,higher produce efficient,higher oil consume efficient.
18Mpa work hydraulic system pressure,high efficient and save energy.Single lever control,save energy and quick.
Weight more big,load ability more big,fuel tank move backward,the whole machine's stability become better,add oil more convenient.
Cat technology,electric control fixed shaft gearbox,reliability and durability leading.
Shandong self made bridge,brake ability good,reliable and easy to maintenances
Whole cooling system design,can satisfy -20°c-43°c environment temperature demand,and also can choose 50°c high temperature demand cooling system.
Turn pressure improve,turn become more relax and quick
engine installation add reduce vibration device,further improve the dirving room sealing function,reduce vibrating and noise.
Wuxi factory produce work pump,steering pump,SAE/DIN standard high pressure oil tubing,and optimize pipeline design
brake booster,brake gas tank move machine left side center maintenances area,more convenient to maintenances
luxury driving room,seat,air condition and optimize operate and control system
the whole machine design can satisfy country noise and safe standard demand
technology datas:
| model | 669c |
| capacity | 3.3-5.5m3 |
| rated load weight | 6000kg |
| the whole machine operating weight | 19600kg |
| max traction | 185KN |
| max digging powder | 190KN |
| maximum gradeablity | 30 ° |
| min bending radius(outside of bucket) | 7050mm |
| min bending radius(outside of tire) | 5990mm |
| bucket lift,tliting and falling down 3 items times | 10.2s |
| dumping height | 3050mm |
| dump distances | 1280mm |
| wheel base | 3350mm |
| dimensional(mm) | 8510*3092*3440 |
| engine | |
| model | Shangchai SC11CB240.1G2B1 country Ⅱ emission |
| form | inline,vertical,water-cooling,4 stroke |
| rated powder | 175kw |
| max torque | 950Nm |
| transmission system | |
| torque shape | YJH340B |
| form | single stage 3 complements and centripetal type |
| transmission form | electric control fixed shaft type |
| gear | front 4 after 3 |
| max speed | 30.6km/hour |
| front and after drive axle | 4 wheel drive,front axle fixed,after axle swing(±12 ° ),turbine booster |
| steering system | |
| form | coaxial flow amplifying steering |
| trun Angel(left and right) | 38 ° ±1 |
| work hydraulic system | |
| work hydraulic system pressure | 18Mpa |
| control method | hydraulic pilot proportion control |
| brake system | |
| crane brake | dry type gas cap oil caliper disc brake |
| brake and emergency brake | barely able to manipulate the increase within the hoof type |
| tire | |
| specifications | 23.5-25RP |
| oil tank capacity | |
| oil tank capacity | 274L |
| hydraulic system capacity | 230L |
| can choose configuration and work tools | |
|
inclined blade plate and rocket bucket/rocket bucket/load sand bucket/side dump capacity wooden fork/load coal and extended arm/extended arm increase bigger tire 26.5-25 /desert tire prevent roll protection device(rops)/prevent fall things protection device quick change and tools
| |

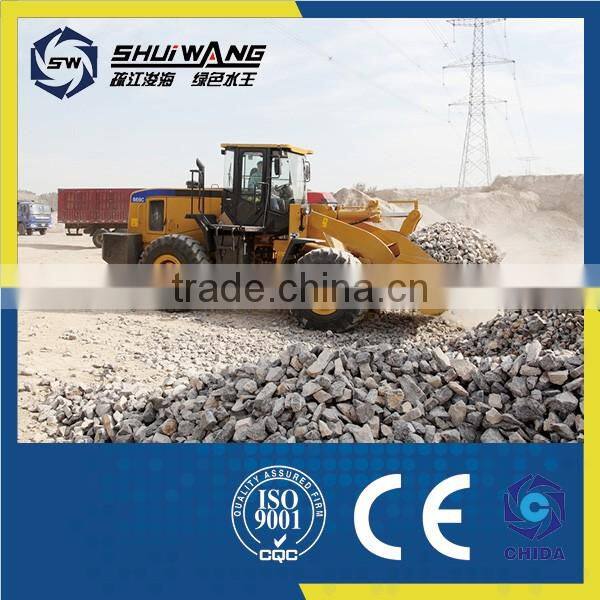

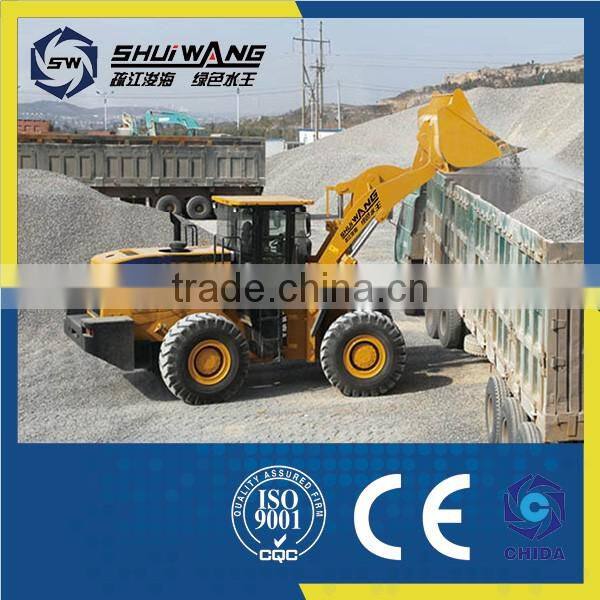

some other picture of my wheel loader:
some parts of our wheel loader:
packing and shipping:
our service:
1.We provide reasonable and practical design according to customers' request.
2.We send engineers to assemble and test the machine within the period as agreed in the contract.
3.Within warranty period, we provide free repair if quality problems emerge.
4.We supply high quality accessories in low price.
why choose us?
1 High quality,our factory has many years experiences in this industry,and our excavator's quality is the best in same industry.Compare with other country's excavaor,our excavator more pritical,longer use life,design more humanized.And we provide you the easy damaged parts
2 factory price,you know because we are factory,companre with other comapnies,we are the direclty supplier.You can get the direcly price from us,save many process in the middle,so choose us,you will save lots of money.
3 Easy to maintenance: the whole machine is designed with simple structure. all the mechanical parts are connected strongly and easy to change by the operators. During
the whole working life of the machine, the supplier will supply spare parts for the buyers.
Reliable performance: Shuiwang amphibious excavator machinery has a simple & tough structure. All the parts are from reputed brand and the main frame is made by strong steel
materials, all the equipments will be tested well before delivery.
company information:
shan dong shuiwang environment protection equipment Co.,LTD.Our company mainly export sand dredger,gold minging equipment,amphibious excavator, small loader,mud pump,water treatment equipment,liquid filling equipment...,our equipment mainly export to North American,south American ,Africa,southeast Asian countries...Our city located in Qingzhou city which has thousand years history.We welcome any countries visit our company and visit our city.We also hope establishe deep
FAQ:
Dear sir/madam,and before you send inquiry to me,please note how many tons wheel loader you need?and for brand do you have some demand?
customer visiting:
contact:
