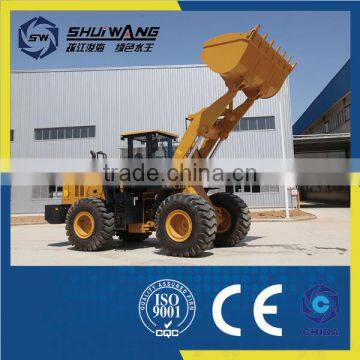

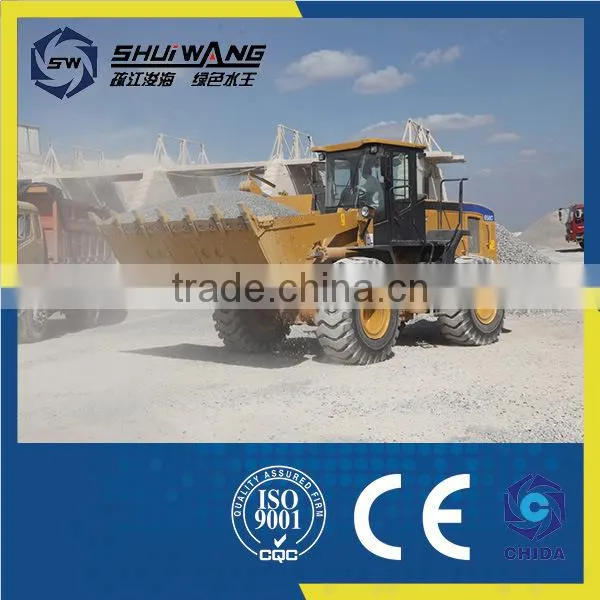

hot sale construction machine front wheel loader tractor loader SW658C price
Parameters of SW658C
Model | SW658C |
Bucket Capacity | 2.7-4.5 m3 |
Rated Load Capacity | 5000 kg |
Operating Weight | 17000 kg |
Max. Drawbar Pull | 155kN |
Max. Breakout Force | 168 kN |
Max. Gradeability | 30° |
Min. Turning Radius (Outside of Bucket) | 6931 mm |
Min. Turning Radius (Outer Tire) | 5867 mm |
Cycle Time (Bucket lifting, tipping and lowering) | 10.2 s |
Dump Height | 3096 mm |
Dump Reach | 1267 mm |
Wheelbase | 3300 mm |
Standard Dimensions (L×W×H) (mm) | 8176×3068×3440 |
Engine | |
Model | Shanghai SC11CB220.1G2B1 National Stage II emission standards |
Type | In-line, vertical, water cooling, 4-stroke |
Rated Power | 162 kW |
Max. Torque | 912 Nm |
Drive System | |
Torque Converter | YJH340 |
Type | Single stage, 3 elements, centripetal type |
Transmission Type | Electronic controlled fixed axle type |
Speed Gears | 4 forward/3 reverse gears |
Max. Speed | 36.5 km/h |

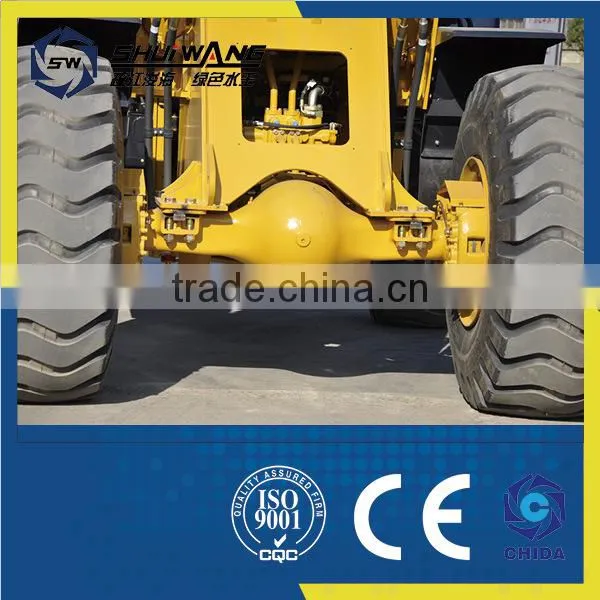

Front/Rear Drive Axle | 4WD, fixed front axle, swing rear axle(±12°) |
Steering System | |
Type | Coaxial flow amplification steering |
Steering Angle (left/right) | 38°±1 |

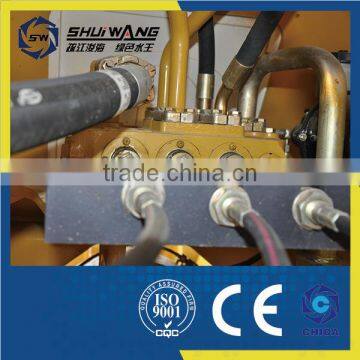

Hydraulic System | |
Hydraulic System Pressure | 19 MPa |
Operation Mode | Hydraulic pilot proportional control |
Brake System | |
Service Brake | Dual-circuit, built-in wet brake |
Parking & Emergency Brake | Pneumatic internal expanding shoe brake |
Tires | |
Size | 23.5-25 |
Volume | |
Fuel Tank | 274L |
Hydraulic System | 230L |
Optional Devices | |
Perkins 1106D-E66TA National Stage II emission standards | |
details
Shuiwang company can provide a complete package of spare parts, maintenance support,
equipment training programmes, operating advisory services and operators for hands-on instruction and commissioning.
1.Guarantee period: 1 year after the date of completion of unloading of the goods at the
port of destination.
2.After the warranty expires,our company promises that we will provide a pay-needed
maintenance service for life.
Shandong Shuiwang Environmental Protection Equipment Co., Ltd.are specialized in high-standard sand washing machinery, amphibious excavator,submersible sand pump,diesel and gas generator and other mechanical equipment.
We have a 17000 square meters production base,20 technical staff ,5 senior.The company have good relationship with Guangzhou university,Guangxi metallurgy institute and other university or institute ,have passed ISO9001.
With the principal “capability will tell,credibility will win”,Shandong Shuiwang Envirommental Protection Equipment Co.,Ltd strives to provide best sevice to customers,more and more qualified products to customers.
