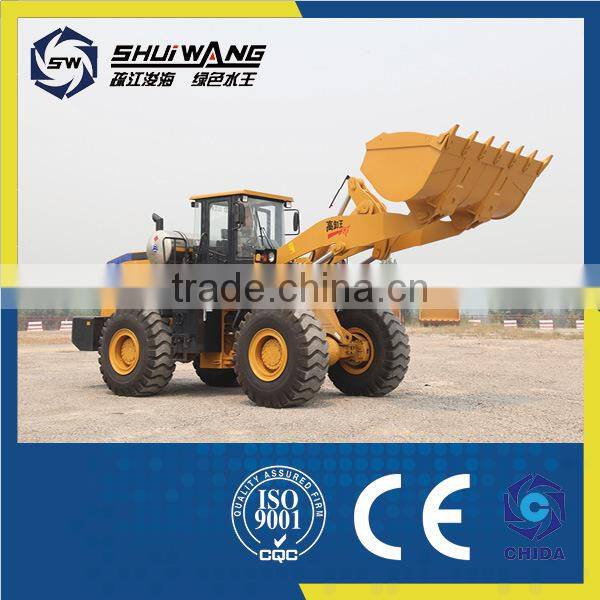

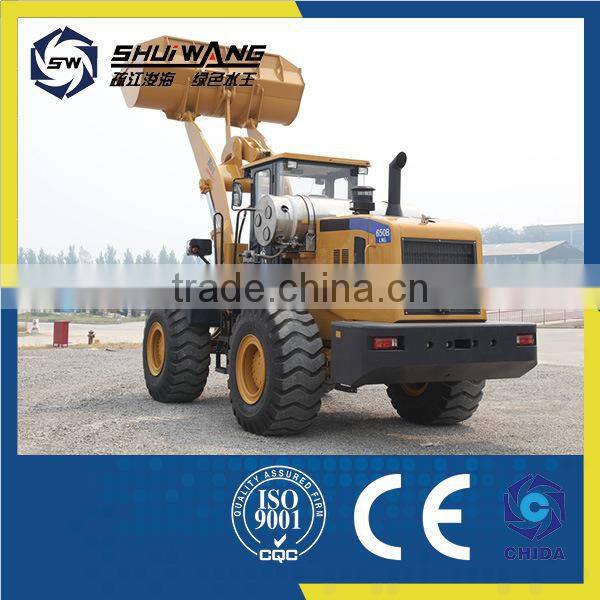

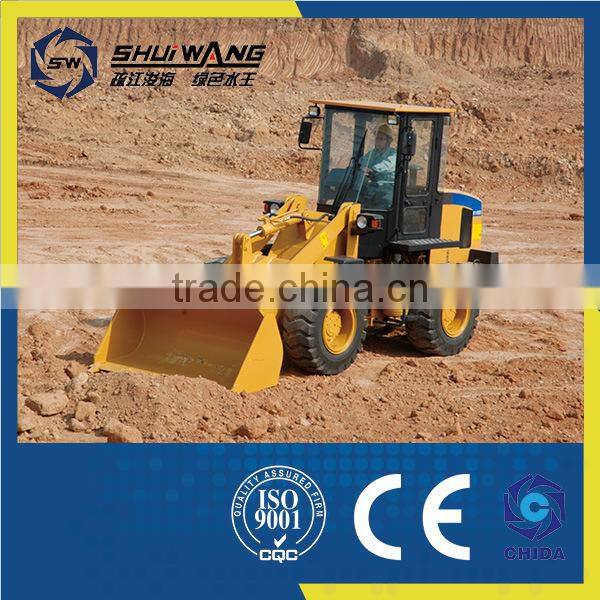

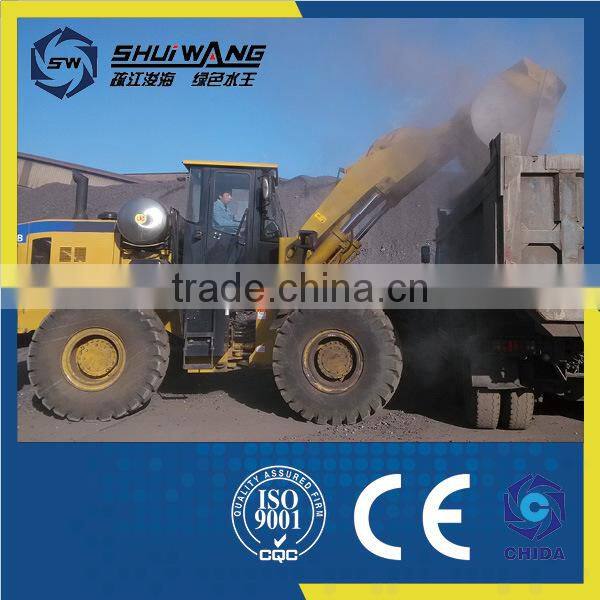

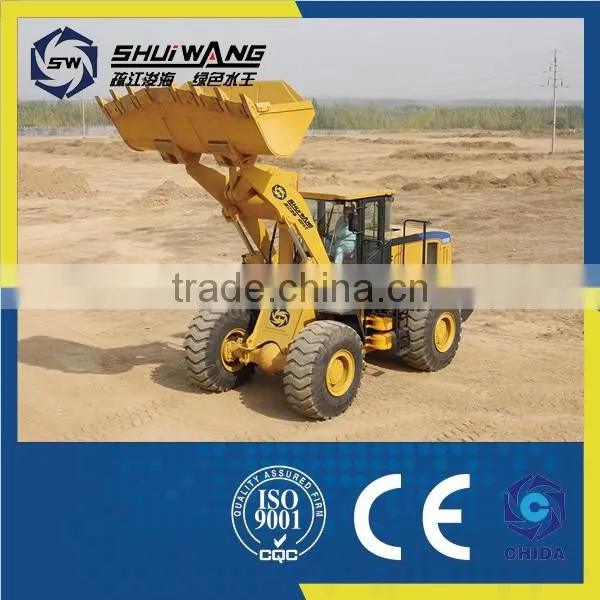

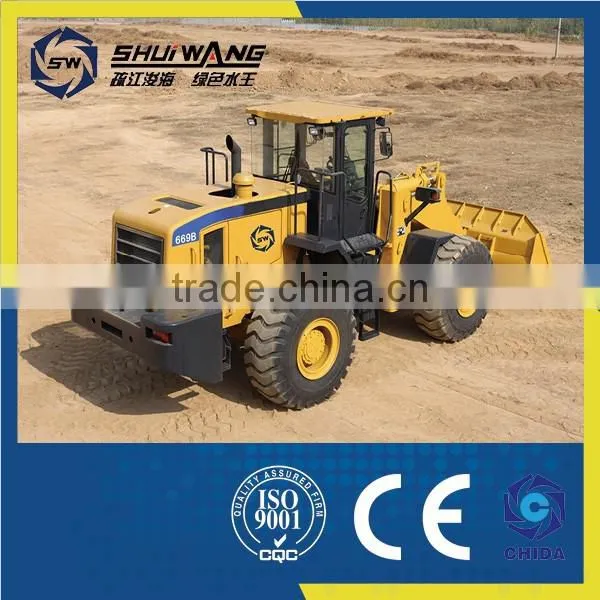

China Cheap 6 Ton Wheel Loader for Sale from Shandong
Features
• Engine conforming to National Stage II emission standards, optimal power system, improved lifting capability,
higher productivity and fuel efficiency.
• Front and rear axle of unique design and SI axle Caterpillar technology, and wet brake system, featuring high
reliability and durability.
• 19MPa hydraulic system pressure provides high efficiency and energy saving; single lever enables less efforts
and convenient operation.
• Caterpillar PS bucket has small resistance and high load factor, which improves the production efficiency by
12%.
• Lengthened wheelbase, heavier counterweight, higher load capacity, and
rear-mounted fuel tank, provides higher stability and the refueling is more convenient.
• Working pump and steering pump made by Caterpillar’s Wuxi plant, SAE/DIN standard high pressure hoses and optimized pipelines.
• Brand new design of cooling system meets the requirements for -20℃ ~ +43℃ ambient conditions. Optional
cooling system for 50℃ ambient conditions is also available.
• Increased steering pressure makes more quick and easy steering.
• Vibration absorption device is mounted with the engine, which further improves the seal performance and
reduces vibration and noise.
• The electric system is upgraded and adopts high grade waterproof and dustproof plugin guarantee system,
which is more safe and reliable. The overall design meets the mandatory noise and safety standards in China.
Parameters of china wheel loader
Model | SEM660B |
Bucket Capacity | 3.3-5.5 m3 |
Rated Load Capacity | 6000 kg |
Operating Weight | 19600 kg |
Max. Drawbar Pull | 187 kN |
Max. Breakout Force | 190 kN |
Max. Gradeability | 30° |
Min. Turning Radius (Outside of Bucket) | 7050 mm |
Min. Turning Radius (Outer Tire) | 5940 mm |
Cycle Time (Bucket lifting, tipping and lowering) | 10.2 s |
Dump Height | 3050mm |
Dump Reach | 1280 mm |
Wheelbase | 3350 mm |
Standard Dimensions (L×W×H) (mm) | 8510 ×3092×3410 |
Engine | |
Model | Sinotruck Steyr D10.24T21National Stage II emission standards |
Type | In-line, vertical, water cooling, 4-stroke |
Rated Power | 175 kW |
Max. Torque | 950 Nm |
Drive System | |
Torque Converter | YJ375 |
Type | Single stage, 3 elements, centripetal type |
Transmission Type | Fixed axle, constant engaged power shift |
Speed Gears | 4 forward, 4 reverse |
Max. Speed | 40.9 km/hr |
Front/Rear Drive Axle | 4WD, fixed front axle, swing rear axle(±12°) |
Steering System | |
Type | Articulated frame, load sensing, Coaxial flow amplification steering |
Steering Angle (left/right) | 38°±1 |
Hydraulic System | |
Hydraulic System Pressure | 18 MPa |
Operation Mode | Hydraulic pilot proportional control |
Brake System | |
Service Brake | Air-over-oil 4-wheel caliper disc brake |
Parking & Emergency Brake | Pneumatic internal expanding shoe brake |
Tires | |
Size | 23.5-25PR |
Volume | |
Fuel Tank | 273 L |
Hydraulic System | 165 L |
Optional Devices | |
| Shanghai SCllCB240.1G2B1 National Stage II emission standards |
| Weichai WD10G240DE21 National Stage II emission standards |
| Rock bucket with inclined cutting edge/rock bucket/sand bucket/side dump bucket |
| Log grab/coal bucket and long reach arm |
| Desert tires |
| ROPS/FOPS/Warning light |
| Quick coupler and tools |
Products
Parts
1. Q: Can I visit your factory?
A: Yes. Many domestic and overseas customers visited our factory every year.
2. Q: What about the warranty of your equipment? Do you supply spare parts?
A: Our warranty is one year(12 months), and we can supply spare parts also.
3. Q: Do you provide after-sales service?
A: Yes. We have a professional after-sale service team to promptly and thoroughly solve your problems.
4. Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
