Small Construction Machine Wheel Loader for Sale
Features of Small Construction Machine Wheel Loader for Sale
• Engine conforming to National Stage II emission standards, optimal power system, improved lifting
capability, higher productivity and fuel efficiency.
• Front and rear axle of unique design and SI axle Caterpillar technology, and wet brake system, featuring high
reliability and durability.
• 19MPa hydraulic system pressure provides high efficiency and energy saving; single lever enables less efforts and convenient operation.
• Caterpillar PS bucket has small resistance and high load factor, which improves the production efficiency by 12%.
• Lengthened wheelbase, heavier counterweight, higher load capacity, and rear-mounted fuel tank, provides higher stability and the refueling is more convenient.
• Working pump and steering pump made by Caterpillar’s Wuxi plant, SAE/DIN standard high pressure hoses
and optimized pipelines.
• Brand new design of cooling system meets the requirements for -20℃ ~ +43℃ ambient conditions. Optional
cooling system for 50℃ ambient conditions is also available.
• Increased steering pressure makes more quick and easy steering.
• Vibration absorption device is mounted with the engine, which further improves the seal performance and
reduces vibration and noise.
• The electric system is upgraded and adopts high grade waterproof and dustproof plugin guarantee system,
which is more safe and reliable. The overall design meets the mandatory noise and safety standards in China.
Parameters of Small Construction Machine Wheel Loader for Sale
Model | SEM657C |
Bucket Capacity | 2.7-4.5 m3 |
Rated Load Capacity | 5000 kg |
Operating Weight | 16500 kg |
Max. Drawbar Pull | 164 kN |
Max. Breakout Force | 168 kN |
Max. Gradeability | 30° |
Min. Turning Radius (Outside of Bucket) | 6931 mm |
Min. Turning Radius (Outer Tire) | 5867 mm |
Cycle Time (Bucket lifting, tipping and lowering) | 10.4 s |
Dump Height | 3096 mm |
Dump Reach | 1267 mm |
Wheelbase | 3300 mm |
Standard Dimensions (L×W×H) (mm) | 8176×3068×3440 |
Engine | |
Model | HFWD61561AG218 National Stage II emission standards |
Type | Turbocharging |
Rated Power | 162 kW |
Max. Torque | 920 Nm |
Drive System | |
Torque Converter | TR200 |
Type | Single stage, 3 elements, centripetal type |
Transmission Type | Fixed axle power shift transmission |
Speed Gears | 4 forward, 4 reverse |
Max. Speed | 42 km/h |
Front/Rear Drive Axle | 4WD, fixed front axle, swing rear axle(±12 °), turbocharging |
Steering System | |
Type | Coaxial flow amplification steering |
Steering Angle (left/right) | 38° ±1 |
Hydraulic System | |
Hydraulic System Pressure | 19 MPa |
Operation Mode | Hydraulic pilot proportional control |
Brake System | |
Service Brake | Dual-circuit, built-in wet brake |
Parking & Emergency Brake | Pneumatic internal expanding shoe brake |
Tires | |
Size | 23.5-25PR |
Volume | |
Fuel Tank | 273L |
Hydraulic System | 230L |
Optional Devices | |
Shanghai C6121 National Stage II Engine SC11CB220.1G2B1 | |

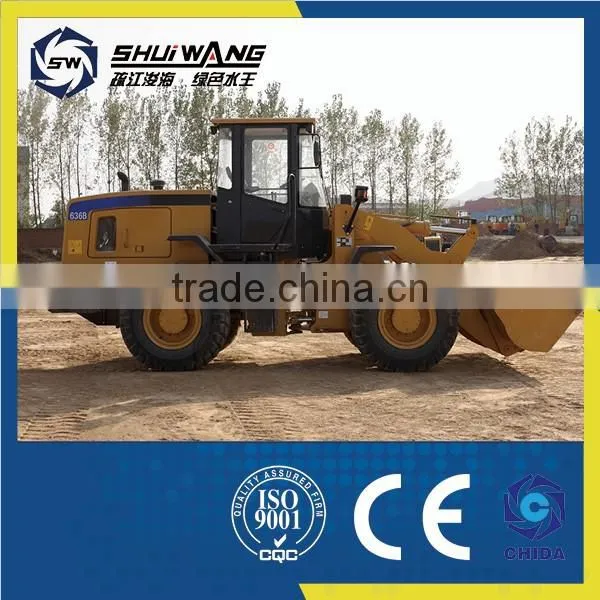

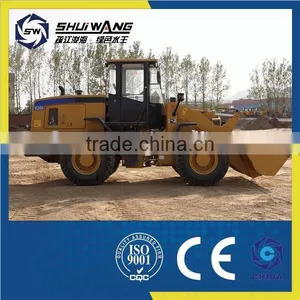

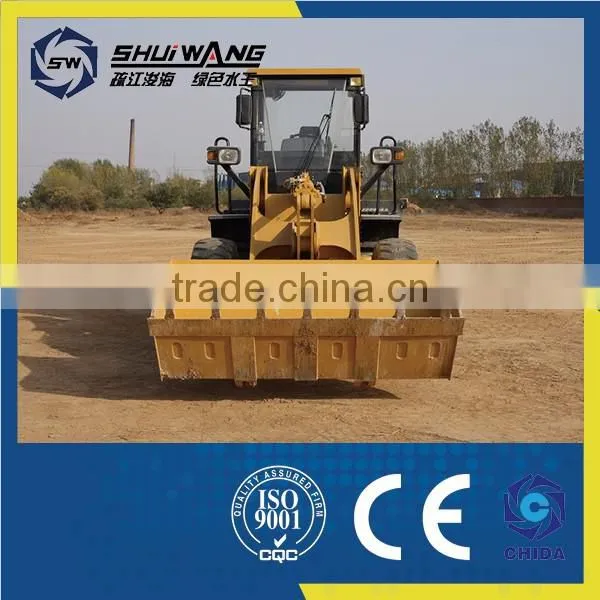

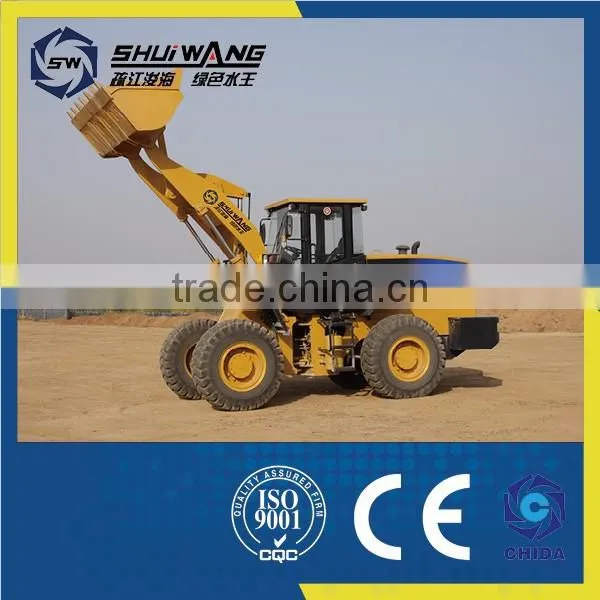

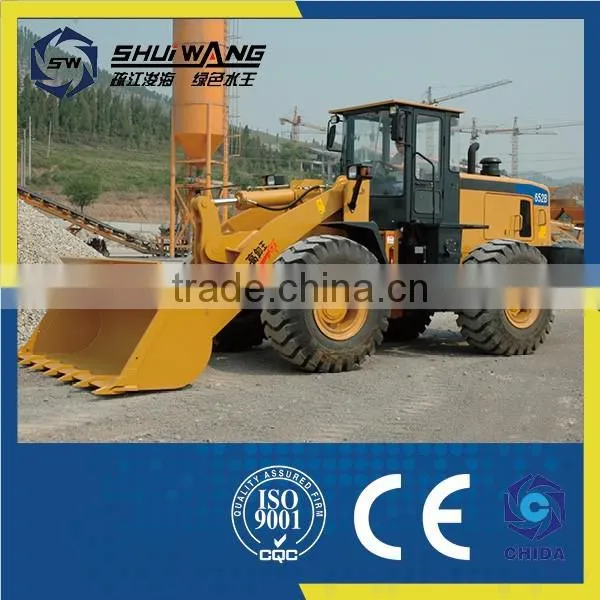

Detail Parts Pictures of Small Construction Machine Wheel Loader for Sale

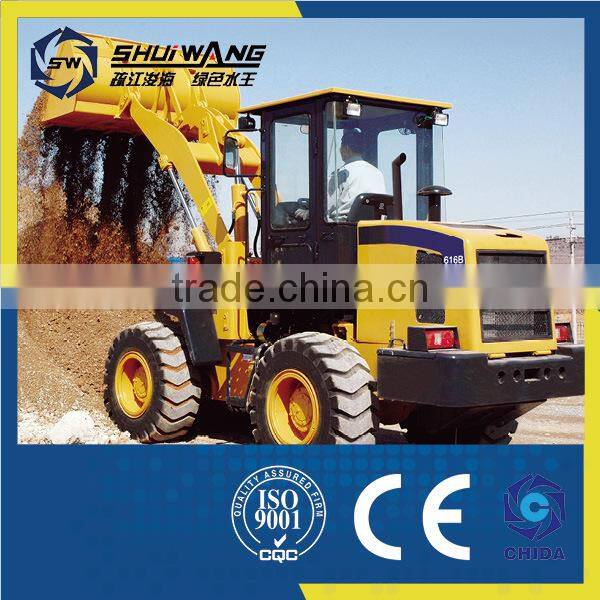

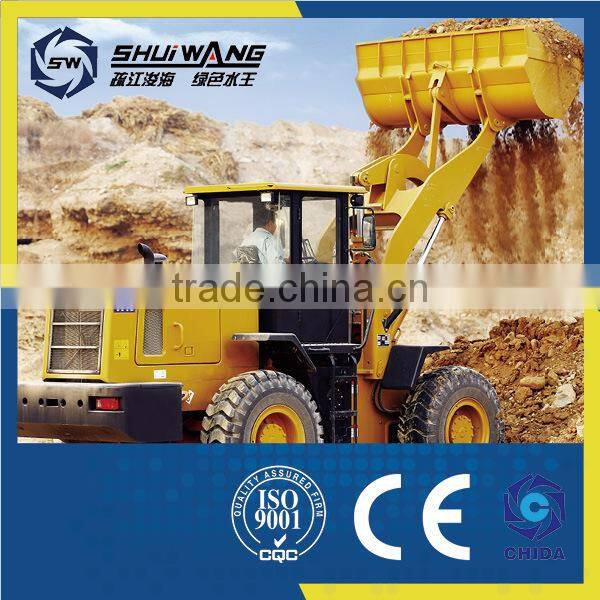

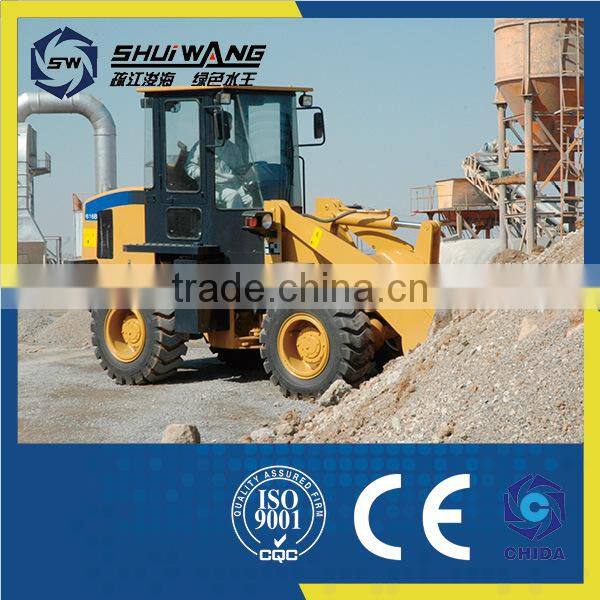

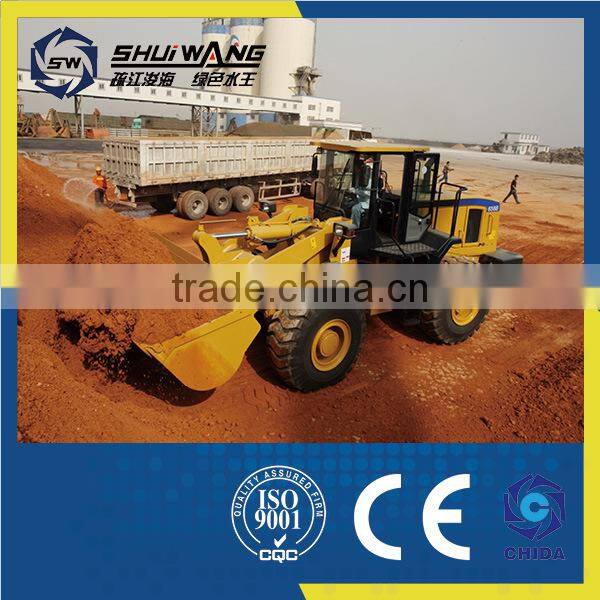

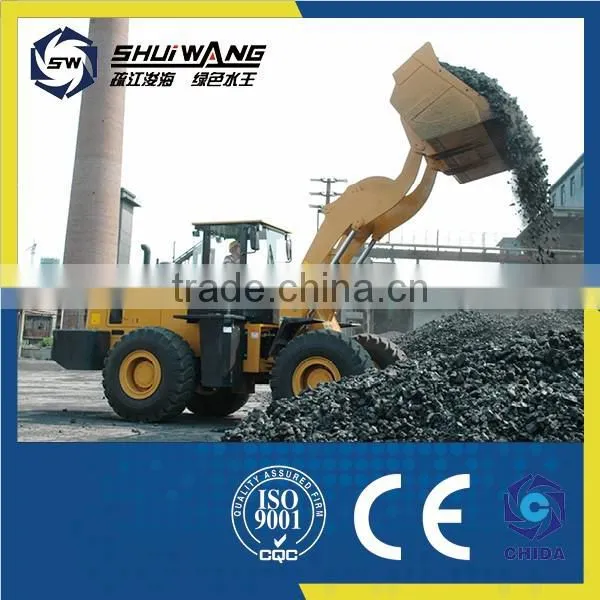

Small Construction Machine Wheel Loader for Sale in Working Area
What we could do for you:
Here we could supply one-package service for every customer, from beginning to consult to whole machines trial running,including staff training.
Customers just need inform what you have in hand & and what you want to get.The rest all we will supply & finish for you.
♦Pre-sale services:Passion &thoughtful
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
♦Sale services:Oversea Technicians
Oversea technicians will be sent to the jobsite for guiding the installation training operators and finishing the check and accept together with you.
♦After-sale services:Faithfulness
One year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
