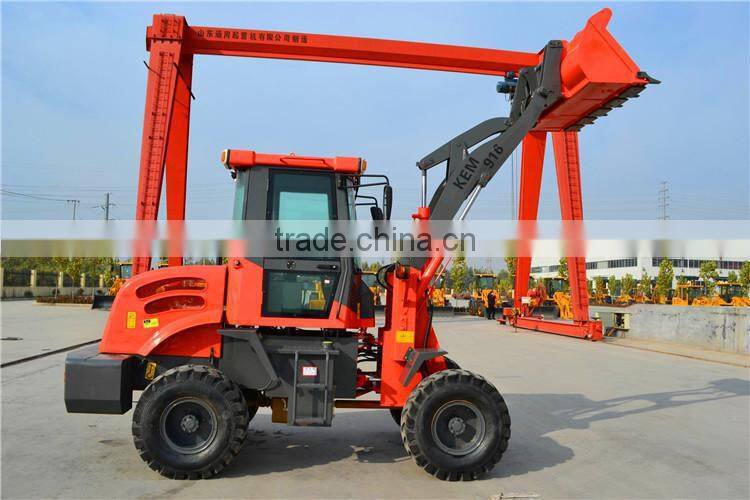

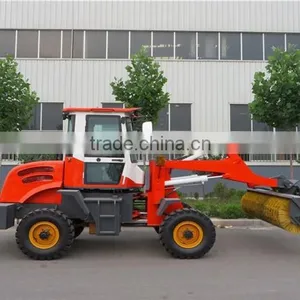

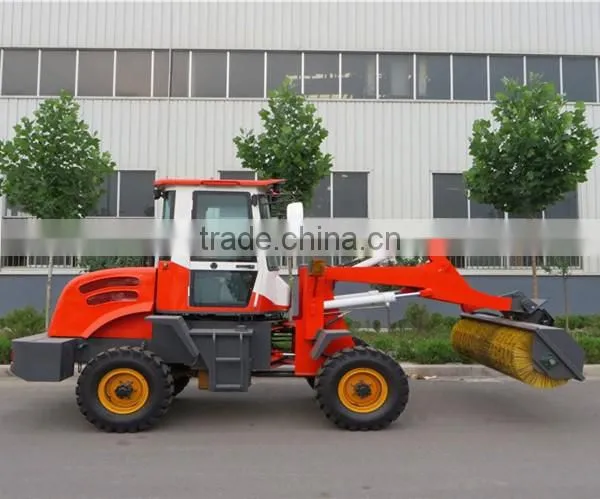

Chinese 0.4ton Mini Hay Loader for Sale

Name: Chinese 0.4ton Mini Hay Loader for Sale
Brand: Shuiwang
SKU: 141759166
Availability: InStock

Shandong Shuiwang Environmental Protection Equipment Co., Ltd.

US$ 5,999 - 9,999 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

Shuiwang

Model Number:

zl16f

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name Shuiwang

Model Number zl16f

Place of Origin Shandong, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 5300x1770x2750mm

Rated Load 400KG

Certification ISO9001

Warranty 1 Year

After-sales Service Provided Engineers available to service machinery overseas

Chinese 0.4ton Mini Hay Loader for sale

ZL16F
Performance	Rated Load	1600 kg
	Total weight	3600 kg
	Rated Bucket Capacity	0.8 m3
	Max.Gradeability	25°
	Dumping Height	2900mm
	Dumping Reach	860mm
	Raising Time	≤ 5.0 s
	Total Cycle Time	≤ 9.0 s
	Overall Dimensions(LxWxH)	5300x1770x2750
	Min.Turning Radius	4300mm
Engine	Model	wuxi sida 490 diesel engine
	Type	In-line,Water-cold,Four-stroke,Direct injection
	Rated Power	39 kw
	Rated Speed	2400 rpm
Gear box	Hydraulic Torque Converter	YJ240 Integrated Torque Converter
	Gear Shift	2 forward,2 backward
	Max.Speed	25 km/h
Drive Axle	Model of Axle	Iusuzu axle
Drive Axle	Wheel Base	2400 mm
Drive	Mode	4-way Drive
Hydraulic System	System Working Pressure	16 Mpa
Brake system	Service Brake	Sing line,Hydraulic,Expansion-shoe Brake on 4 wheels
Brake system	Parking Brake	Hand Flexible Shaft Control Disk Brake
Tyre	Type Specification	14/90-16
	Front Tyre Pressure	0.3 Mpa
	Rear Tyre Pressure	0.28 Mpa
