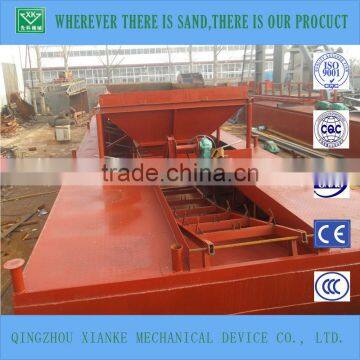

Help CenterPrices of River Sand Barge for Sale
Related Products
-
60cbm Small River Sand Barge for SaleUS$ 85,000 - 100,000MOQ: 1 Set -
100t Small Self-unloading River Sand Barge BoatUS$ 90,000 - 105,000MOQ: 1 Set
-
40T Mini Sand Transporting Barge/hopper Vessel/boat SalesUS$ 50,000 - 60,000MOQ: 1 Set
-
30cbm Small River Sand Transporter/carrier/barge PricesUS$ 60,000 - 70,000MOQ: 1 Set
-
65T Mini River Sand Boat/vessel/ship for SaleUS$ 70,000 - 80,000MOQ: 1 Set

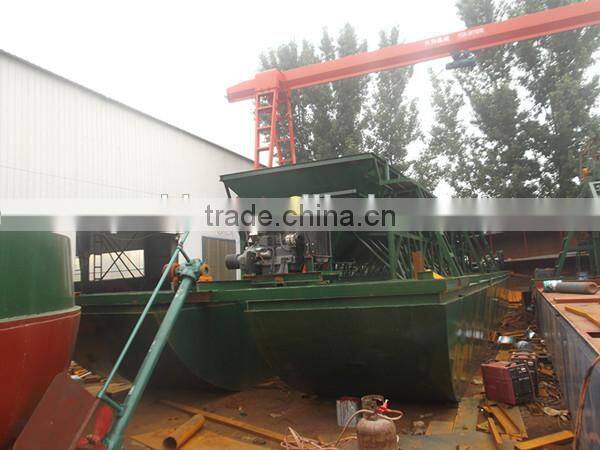

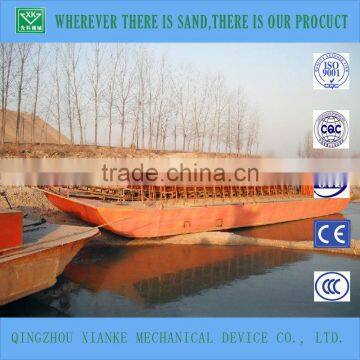

1.Main parameters
Hull length:15.0m
Hull width:4.2m
Hull height:1.25m
Capacity :25m³(35-45tons)
Main power:28hp diesel engine

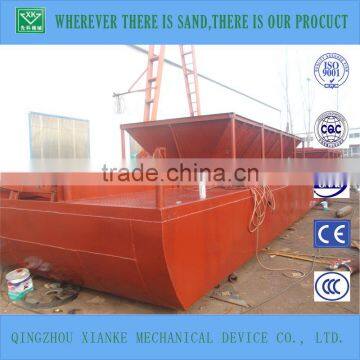

2.Pontoon and hopper
2.1 Pontoon
Pontoon size:15.0*4.2*1.25m
2.2 Hopper
Hopper size:8*2.8*1.2m

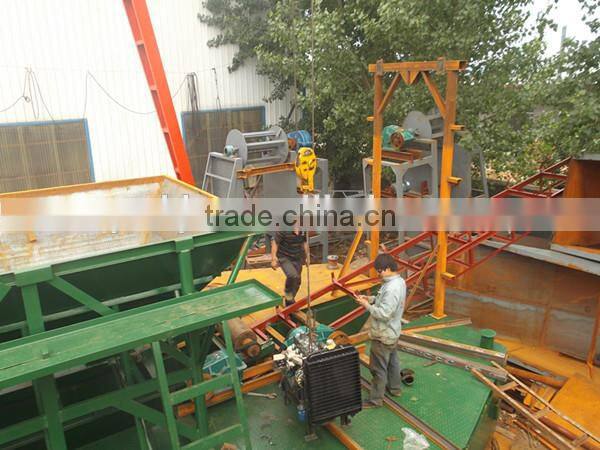

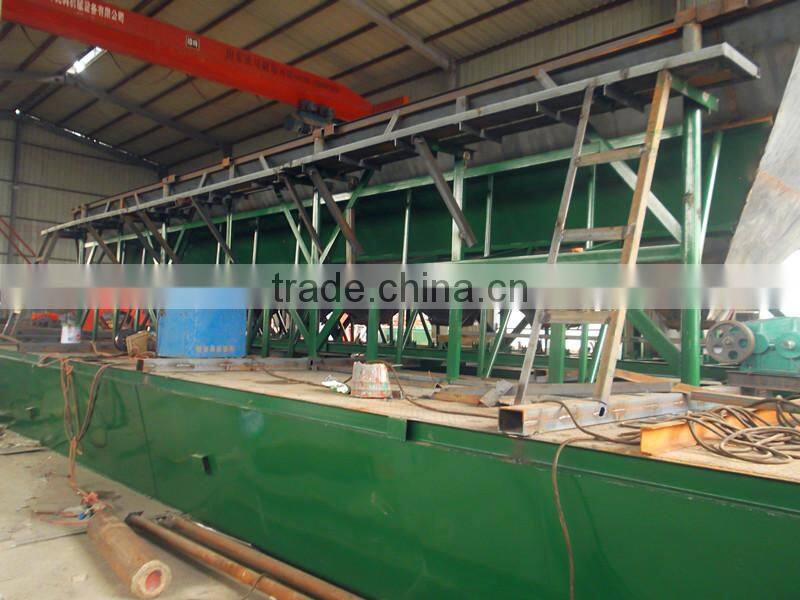

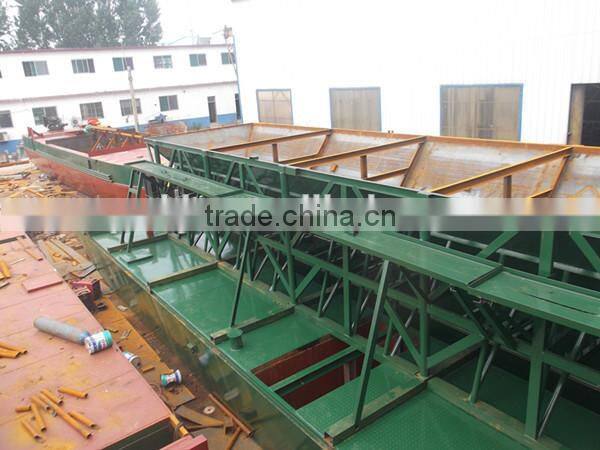

3.Conveyor system
Conveyor length:22m(length out of pontoon 7m)
Conveyor belt width:700mm
Power :28hp diesel engine(This engine also drive the propellor to move the barge forward)
Reducer model:ZQ350
4.Other equipment
Propellor: one set, it is drived by the conveyor engine.
Battery : 12V one piece
Conveyor belt support:6pieces
Water pump: we supply one small water pump, and it is drived by the main engine to pump water in the hull in order to keep normal draught.
5.Barge structure and material:
5.1 Steel plate of pontoon outer
Pontoon bottom plate: 6mm
Pontoon shell plate: 6mm
Pontoon deck plate: 3mm
The deck plate is anti-skid.

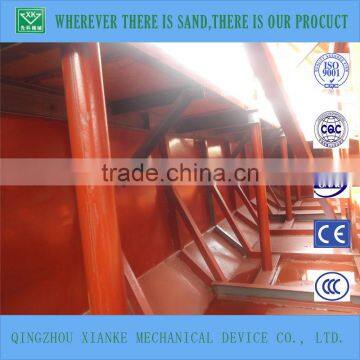

5.2 Steel plate of pontoon inner
Inside the pontoon, we use 10cm U-bar and angle steel as bone-structure, and in the pontoon bottom we weld a steel plate of 30cm length to strengthen.

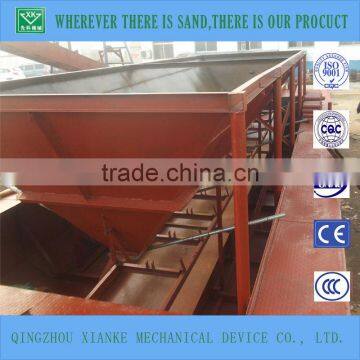

5.3 Hopper material
The hopper is made of 5mm steel plate and at the same time, it would be cut into two parts in the middle to strengthen.
Outside the hopper, we use U-bar and angle steel to support it.
U-bar: 8cm, 10cm, 12cm
Angle steel: 5*5cm
6.Other remarks
Around the pontoon, a hand rail is installed to be sure safety.
In front of the conveyor, we install a pulley to lift up and drop down.
