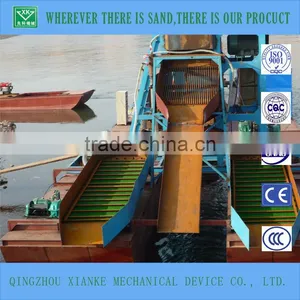

Help CenterTop Quality Portable Gold Dredger
Related Products
-
The Most Advanced Bucket Wheel Gold DredgerUS$ 50,000 - 85,000MOQ: 1 Set -
2015 China Gold Mining DredgerUS$ 70,000 - 90,000MOQ: 1 Set
-
Low Price Bucket Chain Gold Mining Dredger in ChinaUS$ 42,000 - 70,000MOQ: 1 Set
-
Price of Gold Panning EquipmentUS$ 50,000 - 85,000MOQ: 1 Set
-
Bucket Type Chain Gold Dredge/DredgerUS$ 70,000 - 90,000MOQ: 1 Set
Gold Mining Machine working principle:
Using excavator to feed raw material to the hopper ,then, they flow into the trommel, big stones and pebble can be separated and flow outside of the equipment, mineral aggregate with gold whose diameter is less than 6mm can enter into the beneficiation sluice through inner trammel screen, there is a fixed and high extraction ratio gold felt sluice in one side of the beneficiation sluice to extract gold particle. The machine is equipped with big flow capacity and big head water pump, can supply high pressure water for hopper, trammel, the mineral aggregate with gold will flow through the gold felt in the effect of self weight and waterpower, lighter mud or sand will be washed away and big specific gravity gold is left on the gold felt.
Technical parameters:
No. | Principal Particulars | Dimensions/Instruction(Metric) | Dimensions/Instruction(English) | |
1 | Base support | |||
| Length (about) | 8m | 26.25feet | |
| Breadth (about) | 2.6m | 8.53feet | |
2 | Feeder hopper | |||
| Type | The front wide and the back narrow | ||
| Front breadth | 1.5m | 4.92feet | |
| Back breadth | 0.4m | 1.31feet | |
| Front height | 0.8m | 2.62feet | |
| Back height | 0.3m | 0.98feet | |
3 | Feeder conveyor | |||
| Length | 6.8m | 22.30feet | |
| Breadth | 0.8m | 2.62feet | |
| Power | 5.5kw | 7.48hp | |
4 | Feeder conveyor belt | |||
| Length | 14.5m | 47.57feet | |
| Breadth | 0.8m | 2.62feet | |
5 | Roller screen | |||
| Length | 2.2m | 7.22feet | |
| Diameter | 1.3m | 4.26feet | |
| Power | 4kw | 5.44hp | |
6 | Discharge hopper | |||
| Length | 2.3m | 7.54feet | |
| Breadth | 1.2m | 3.94feet | |
| Height | 0.7m | 2.30feet | |
7 | Gold sluice | |||
| Front breadth | 1.6m | 5.25feet | |
| Back breadth | 1.6m | 5.25feet | |
| Middle ladder sluice length | 3.6m | 11.81feet | |
8 | Main framestructure | |||
| Height | 3m | 9.84feet | |
| Base breadth | 2.6m | 8.53feet | |
| Type | Like "A" |
| |
9 | Main power | |||
| Diesel engine | 24hp | 24hp | |
| Generator | 20kw | 27.2hp | |
|
|
|
| |
10 | Water pump | |||
| Model | 4'' |
| |
| Power | 20hp diesel engine |
| |
Our Warranty:
For main equipment, such as pump, reduction gearbox, diesel engine, gearbox are 12months.
It is a kind of combined gold mining machine , designed especially for clayed soil which is contained in the raw material, includes sieving, separating through trammel, sluice and extraction gold progress. It is with wheel type chassis, can be driven by vehicles and move easily.
After-Sale Service:
Erection and Commissioning
Operator Training
Spare Parts Supply

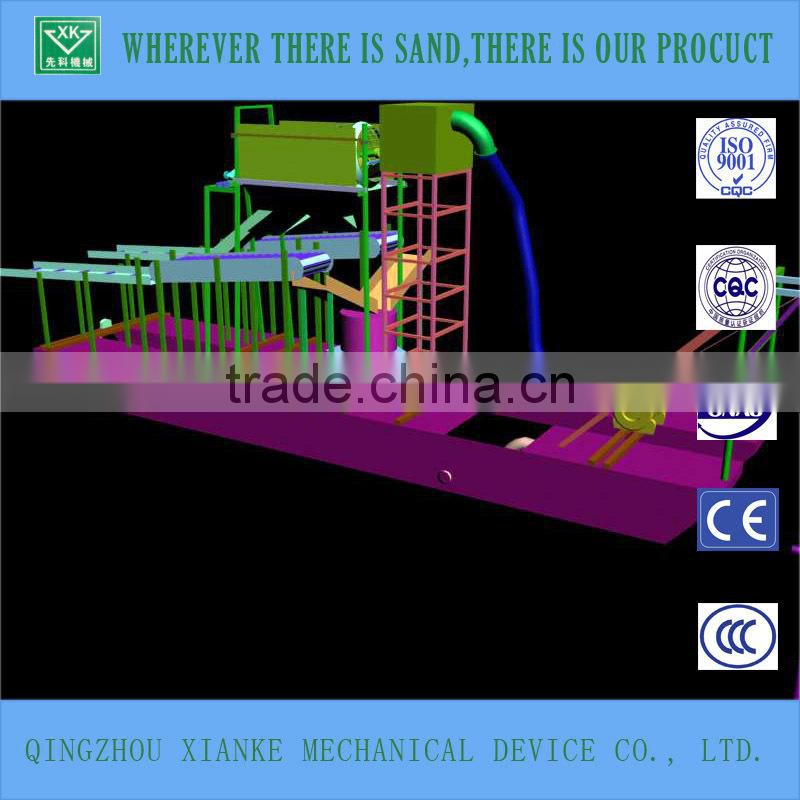

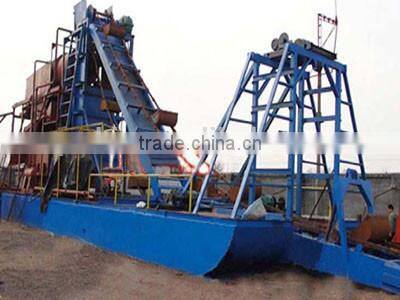

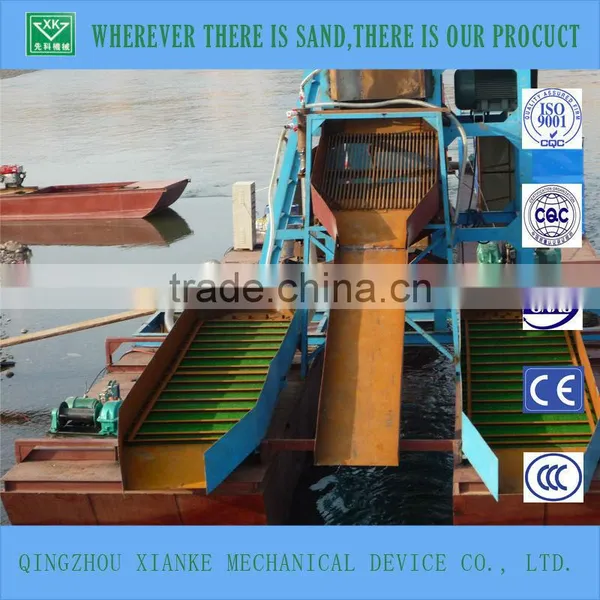

Pictures show:
If you consider that the product is not appropriate for your requirement, please supply the detailed information of the product to us, then we can produce according to your need.Or you consider some parts of the machine should be changed, please contact to us, so we can manufacture it according to your requirement. If you want to know more information about the product and us, please contact us.
