Product Details
Condition: | New | Type: | Bucket Dredger | Power Type: | Diesel |
Dredging Depth: | 10 m | Draught: | 50 cm | Place of Origin: | Shandong, China |
Brand Name: | Xianke | Model Number: | XKGD60-10 | Dimension(L*W*H): | 21*5.2*0.9m |
Weight: | 30tons | Warranty: | 3months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

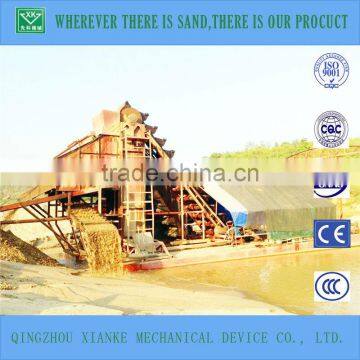

Xianke Chain Bucket Gold Dredger
It can work on the ground on the river banks and floating over pontoons on lakes, riverbeds saturated with water, also to say that the machines are gold concentration machines by hydraulic gravity that they can capture coarse, medium, and fine gold from placers or sedimentary alluvial gold deposits, this are the most efficient machines for gold mining.
The coarse material is transported by a circulating belt to the back of the plant and expelled to the river.The fine material, where the gold is present is transported once is washed inside the trammel and gets through a couple of concentrating tables with carpets and riffles where the fine, medium, and coarse gold is trapped. The gold from the carpets are together with heavy black sands, which are finally separated by a cone centrifugal machine.
This kind of gold mining, has the advantage that it does not modify the environment, the riverbed remains the same after extracting the gold content.
If you are in Bolivia, you can go to visit our agent.

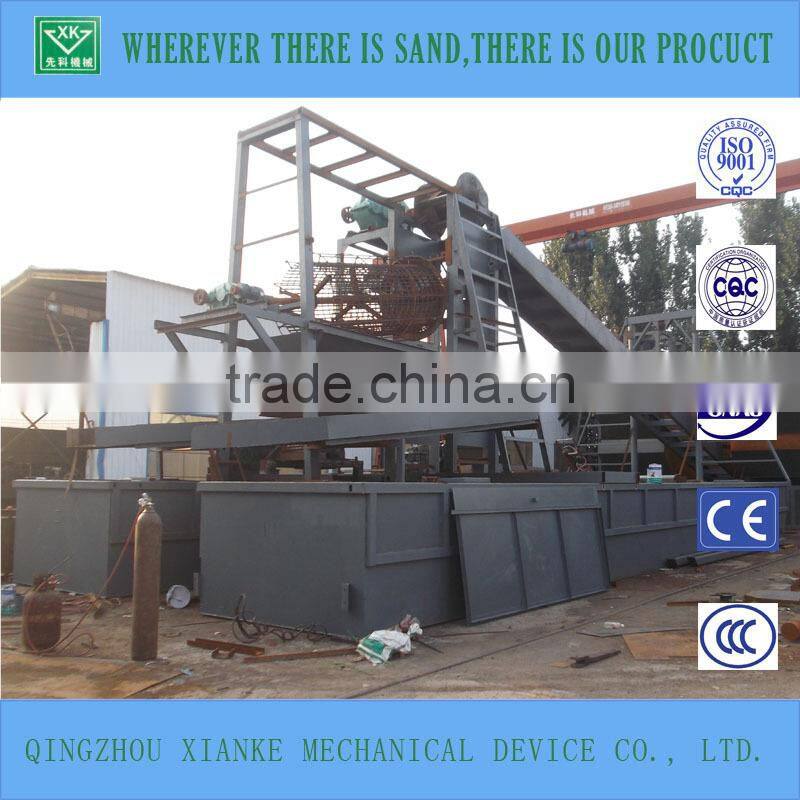

DURING PROCTION
Detailed Description
XK series Bucket Gold Dredger is a bucket gold panning equipment, which generally includes mining, washing, selecting, the tailings abandon, water supply, power supply, chute and other equipments.
1. Hull: It is made of two or three pontoons,which used for installing various equipment, including operating cabin, pump cabin, etc.
2. Mining system: It is made of the dredging bucket, chain, underwater big arm, upper and lower quadrangle wheel, active power, main reducer, main frame and other components. It is mainly used in surface mining operation and ore mining.

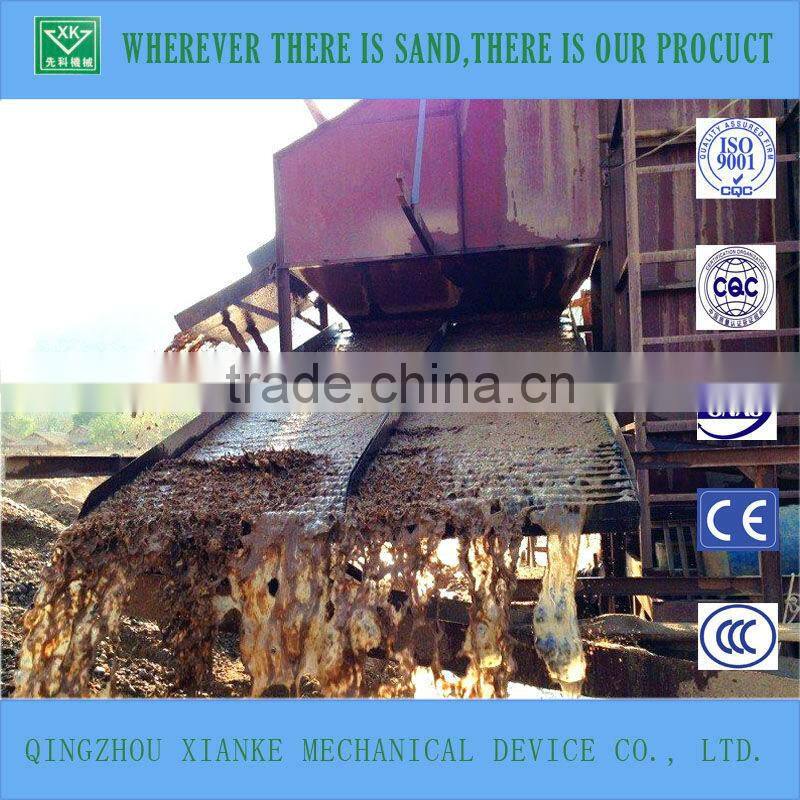

3. Mine Selecting Equipment: It is made up of sand trommel screen, gold washing machine, pump, gold selecting chute or centrifugal concentration machine, etc. It is used for the completion of ore screening, washing, conveying, selecting and other operations.
4. The Waste Tailings System: It is made of conveyor belt, chute, motor, reducer, and it is used for discharging waste gravel and tailings.
5. The Lifting System: it is made of gantry, arm lifting winch, anchor winch, sliding winch, etc. It is used for lifting and falling underwater arm, mooring dredger ,etc.
6. Power System: diesel engine, electronic generator sets, distribution box. It is used for providing lighting and working electricity and so on for the entire dredger.
TECHNICAL SPECIFICATION
Main parameters
Pontoon length:21m
Single pontoon width: 1.8m
Total width: 5.2m
Pontoon height: 0.9m
Mean draught with full bunkers approx: 0.5m
Max. Dredging depth: 10m
Output capacity: 100m3/hr
Main engine:
Diesel engine generator set: 75kw
BUCKETS AND CHAINS
Gold Panning Grass
PROFESSIONAL LOADING
CUSTOMERS VISITING OUR FACTONRY
