Detailed Description
XK series Bucket Gold Dredger is a bucket gold panning equipment, which generally includes mining, washing, selecting, the tailings abandon, water supply, power supply, chute and other equipments.
1. Hull: It is made of two or three pontoons,which used for installing various equipment, including operating cabin, pump cabin, etc.
2. Mining system: It is made of the dredging bucket, chain, underwater big arm, upper and lower quadrangle wheel, active power, main reducer, main frame and other components. It is mainly used in surface mining operation and ore mining.
3. Mine Selecting Equipment: It is made up of sand trommel screen, gold washing machine, pump, gold selecting chute or centrifugal concentration machine, etc. It is used for the completion of ore screening, washing, conveying, selecting and other operations.
4. The Waste Tailings System: It is made of conveyor belt, chute, motor, reducer, and it is used for discharging waste gravel and tailings.
5. The Lifting System: it is made of gantry, arm lifting winch, anchor winch, sliding winch, etc. It is used for lifting and falling underwater arm, mooring dredger ,etc.
6. Power System: diesel engine, electronic generator sets, distribution box. It is used for providing lighting and working electricity and so on for the entire dredger.

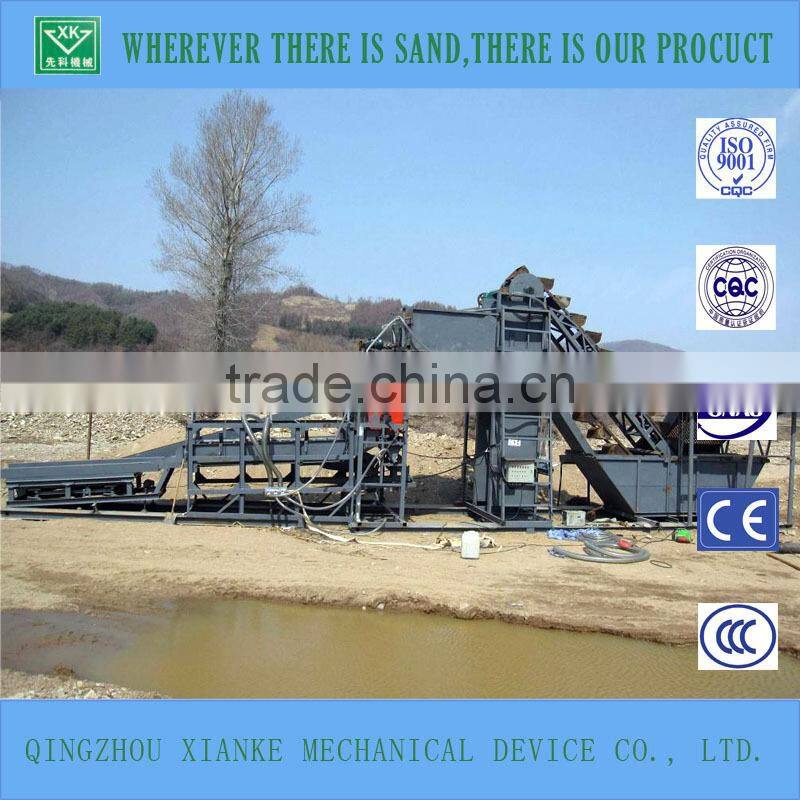

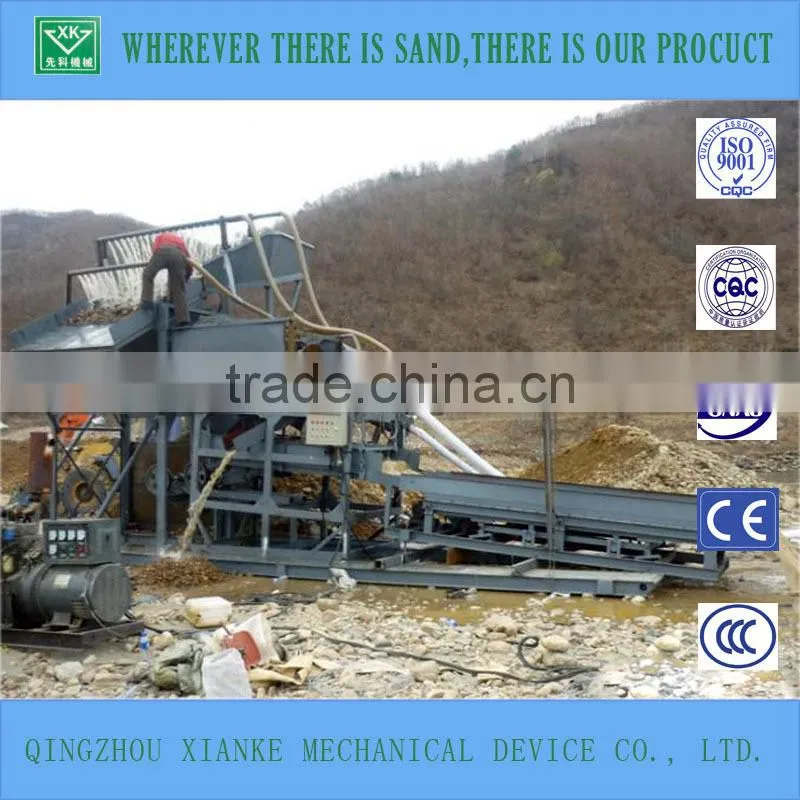

Dredger working in the river
Technical parameter
100CBM Gold Bucket Chain Dredger | ||
NO. | Items | Parameters and remarks |
1 | Main parameter |
|
| Total length (bucket ladder in horizontal position) | 27m |
| Breadth (hull) | 5.6m |
| Height (pontoons) | 1.1m |
| Mean draught with full bunkers approx | 0.6m |
| Max. standard dredging depth | 12m |
| Continuous power of main diesel engine generator at 1500r/min | 100kw |
| Sand and stones Output | 100m3/h |

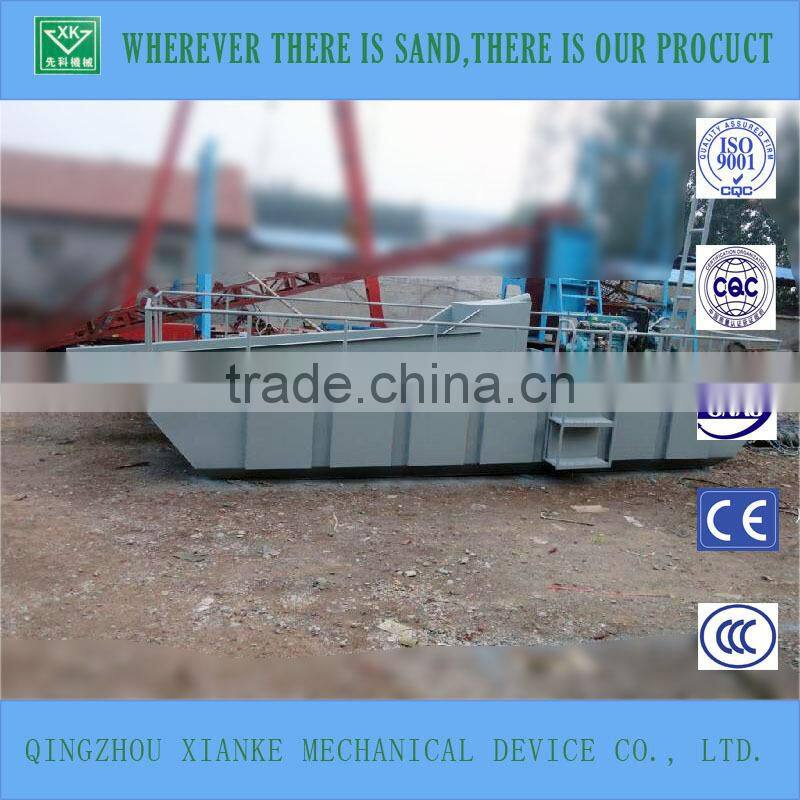

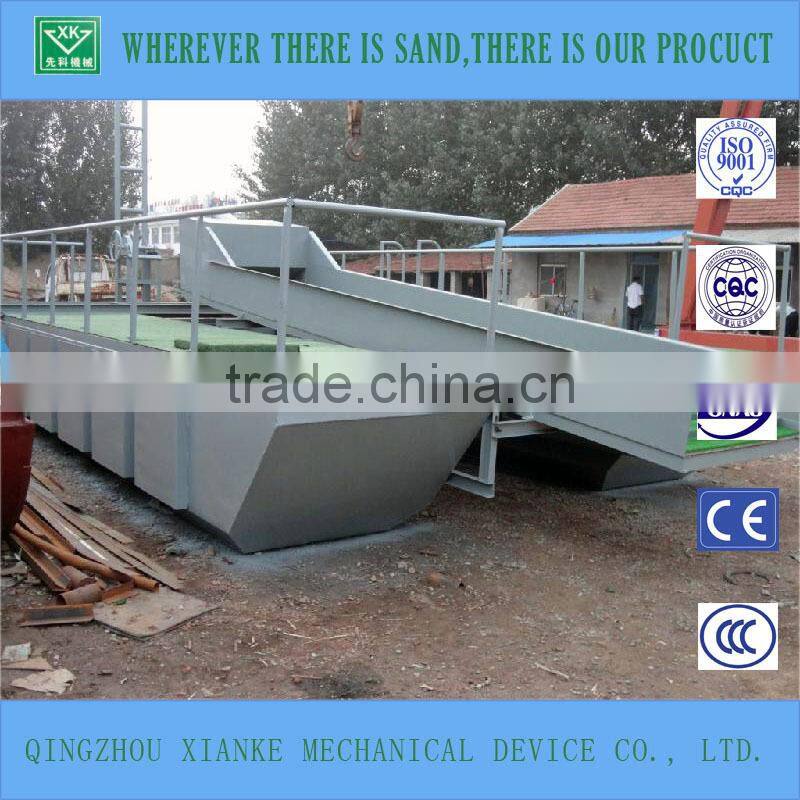

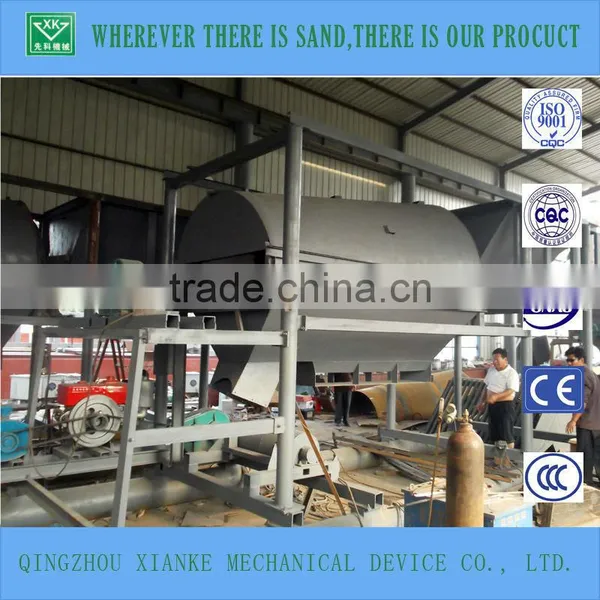

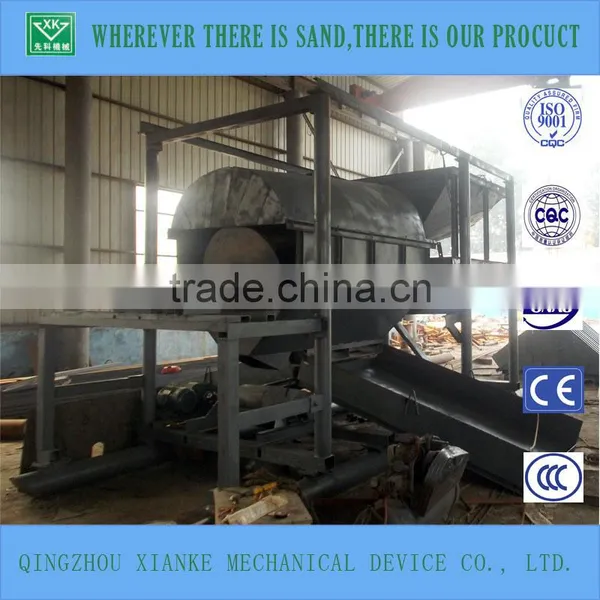

Dredger being building in our workshop
Vibrating Chute and grass
Iran Customer
Kenya Customers
Professional Container Loading
