Home > Products > Dredger equipment > Dredging pipe float
Dredging pipe float
- 3000 Pair / Pairs per Month
- Qingdao Port
- T/T
- new design plastic bar chair mould
- rich experience factory product metal injection mould mold moulding for container
- 2015 hottest ODM high precision pump impeller injection mould factory in China
- Screw Plastic Seat High Precision Dispensing Needle /Glue Dispenser Tip For Dispensing Barrel
- cellphone display&mobile phone stand&mobile holder
- notebook holder&computer holder&laptop stand
Product Details
Place of Origin: | Shandong, China | Brand Name: | XIANKE | Model Number: | XKF480 |
Plastic Modling Type: | Mould |
Product Description
Qingzhou Xianke Mechanical Device CO,. Ltd.
Application

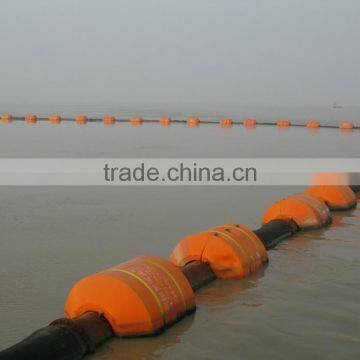

It is made of Polyurethane foam which can increase the its buoyancy and durability. Mainly used for sand excavating dredging pipeline laying in the water to prevent HDPE pipe sink, keep pipe floating.
Features
1) Light weight, easy for installation and movement
2) The costs and performances are much better than steel pontoons.
3) Good Flexibility, excellent impact resistance, particularly suitable in the open sea.
4) Higher corrosive resistance, Anti-uv,anti-aging, it can be used for 5-8 years.
5) Temprature range: from – 60 to 80°C.
6) The outer and inter wall are very smooth, friction coefficient is tiny, all of these features are good for transmission.
Floater in Stock
Technical Properties of Pipe Floater
Pipe inner diameter | Thickness of pipe | Floater inner diameter | Floater outer diameter | Floater Length. | Hull Thickness | Net Buoyance |
mm | mm | mm | mm | mm | mm | kg |
200 | 6 | 220 | 500 | 800 | 7 | 200 |
285 | 6 | 300 | 700 | 1200 | 7 | 420 |
350 | 6 | 375 | 1100 | 1100 | 7 | 920 |
400 | 8 | 414 | 1100 | 1200 | 8 | 1020 |
414 | 8 | 430 | 1200 | 1200 | 8 | 1200 |
450 | 8 | 480 | 1300 | 1300 | 8 | 1500 |
500 | 10 | 580 | 1400 | 1550 | 9 | 2219 |
600 | 10 | 630 | 1400 | 1700 | 11 | 2400 |
650 | 10 | 680 | 1480 | 1800 | 11.5 | 2930 |
700 | 12 | 730 | 1600 | 1900 | 12 | 3593 |
750 | 12 | 780 | 1600 | 2000 | 13 | 3800 |
800 | 15 | 830 | 1800 | 2000 | 14 | 4800 |
Item | Technical Index of Hull | Item | Inside Technical Index |
Tensile Strength | ≥13.1MPa | Water Absorption | 1-2g/100cm2 |
Break Elongation | ≥11.1% | Breaking Strength | 0.08-0.1MPa |
Impact Strength | ≥32.4KJ/m2 | Breaking Elongation | 4-6% |
Bending Strength | ≥15.7MPa | Compressive Strength | 0.1-0.24MPa |
Weather Resistance After total aging energy≥3.5GJ/m2 | Break Elongation %≥ | 10 | |
Oxidative Induction Time 200°Cmm≥ | 10 |
Packaging & Shipping
