18 Inch Hydraulic Cutter Suction Dredger with saving costing

 Good quality China Low Price Cutter Suction River Sand Dredger for Sale

A. MODELS & SPECIFICATIONS

<img src="///kf/HTB1YPW8GFXXXXa_XpXXq6xXFXXX7/200448590/HTB1YPW8GFXXXXa_XpXXq6xXFXXX7.jpg" alt="14/12 Hydraulic Cutter Suction Dredgers for sale" ori-width="572" ori-height="438">

B. DESCRIPTION & ABSTRACT

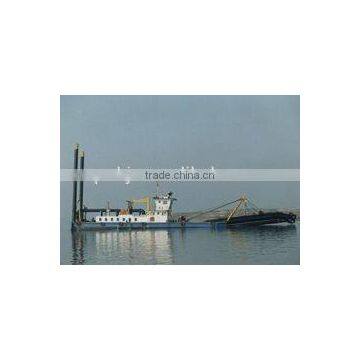

The cutter suction dredge consists of a large barge shape vessel that normally doesn’t have propulsion equipment and is mobilized to the job site by other vessels. It has centrifugal pump.

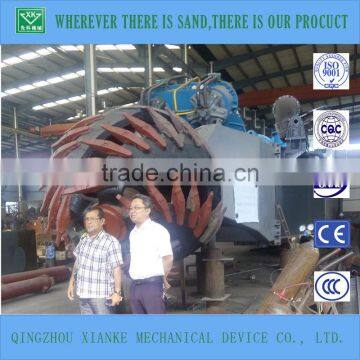

 on board that are used to pump slurry (mixture of solids and water) to a disposal location. The dredge has a ladder that supports the cutter  and cutter drive unit and the suction line leading to the suction side of the dredge pump. At the end of the suction line and cutter drive shaft is the cutter head that is used to loosen and cut sediment that must be removed from the bottom of the waterway. The cutter may have special teeth for excavating the bottom. The excavated material is mixed with the surrounding water and drawn up the suction pipeline due to the low pressure created by the pump on the suction side. The dredged material may consist of clay, silts, sands and gravel and the slurry may be as much as 20% sediments by volume and the other 80% is the ambient fluid. In some cases, an additional pump may be located on the ladder when dredging depth is deep in order improve production due to cavitation limitations.

C. APPLICATIONS & USE

PURPOSE: The cutter suction dredger is mainly used for dredging harbor, river channel, lake or lagoon or pond, or dredging sand for building.

Working conditions: Max. Temperature40℃ ; Min. Temperature -10℃; Max. Water Temperature32℃; Relative Humidity less than 70%.

D. WORKING PRINCIPLE

First the hydraulic cutter in the ladder cuts sediment below water, and makes it loosen then dredged sand moved by the rotated cutter mixes with water and form liquid medium.Then the sand liquid in the inner cutter blade and beside the marine pump suction functioned by the fluid power of sand pump, enters sand pump, meanwhile, get some energy, at last, it is discharged to the destination through discharge pipe.

E. FEATURES & ADVANTAGES

1. rapidly assembly and dismantling

2. One man operation

3. Can be transported by road, sea, and rail

4. Spare parts and floating pipeavailable

5. Reliable hydraulic system

6. Wearable dredge pump

7. The cutter teeth can be removable and changeable

8. Fresh water engine cooling system

9. Efficient fuel consumption.

10. Diesel engines can be decided when ordering

11. Many service tools and free spare parts

12. Can be built according the customer’s requirements

13. Standard design and reasonable price

1. Packing

All the dredgers and machines have no package. We load all the goods in the container without package.

If you just order some small parts or engines or machines, we should put the goods inside the woodbox.

2. Loading

We would put all the small parts inside the pontoons or boxes. we would depart the dredgers into several parts, so we can put it in the container. If we can't put it in the container, we have to order the bulk cargo.

3. Shipping

We will choose the cheapest and fastest ship for the customer. if all the goods can put in the container, we won't order the bulk cargo ship, if it can't, we have to order the bulk cargo ship, if you just order several small machines, and it can't be full of one container, we will send it by LCL (less than container load).

<img src="/img/pb/603/970/871/871970603_467.jpg" alt="14/12 Hydraulic Cutter Suction Dredgers for sale" ori-width="800" ori-height="535"><img src="/img/pb/174/984/871/871984174_037.jpg" alt="14/12 Hydraulic Cutter Suction Dredgers for sale" ori-width="800" ori-height="600">

1. Installation

After the goods arrives at the dredger or machine working site, we will send our engineers to install it for the customer. but we don't afford the installation expense, for example, freight, visa, foods, accommodation, labors, installation tools.

2. Training

If your workers need to be trained, we also can send the professional operators to train them. but we won't afford any cost of training.

3. Professional workers

If you need the professional workers, we can look for them for you in China, but we won't afford any expense and we should get some commission.

4. spare parts

When you order the goods, you should order some spare parts at the same time and load in containers, if some part is broken, you can change at once.

5. maintainance service

We have no oversea department to supply service. If the dredger or machine can't work, we can send engineers to maintain for you, but you should afford all the maintainance expense.

Qingzhou Xianke Mechanical Device Co., Ltd.

1. Located in Huanglou Town, Qingzhou, Weifang City, Shandong Provence

2. Established in 2010, a professional manufacturer and exporter of dredgers

3. One building for office staffs

well-equipped, clean and tidy offices, and available facilities,

the office consists of Design Department, Sales Department, Logistics Department

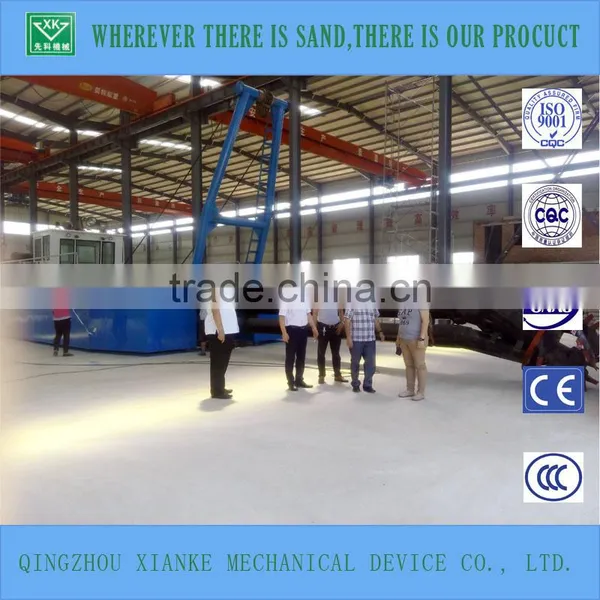

4. Four workshops

Occupies over 1500square maters

Skilled workers

Advanced equipment

5. Near to Qingdao Port

Based on the honest, mutual benefit and development, we warmlywelcome new and old customersto visit our company and negotiate business.

expect for your inquiry
