Sand Washing Chain Bucket Dredger
- 5 Set / Sets per Month
- Qingdao
- bucket wheel excavator 2000m3/h-7000m3/h
- bucket wheel excavator 500m3/h-7000m3/h
- bucket wheel excavator 500tph-2500tph
- 2021 Hot newest small 350 1000m3 Cutter Suction Dredger
- Hot Newest Sand Suction Dredging Boat Dredger for Sale Engineers Available to Service Machinery Overseas Customized Provided MAP
- Sand Dredging Machine 2021 Hot Newest Small 12 Inch Cutter Suction Dredger Engineers Available to Service Machinery Overseas MAP
Product Details
Condition: | New | Type: | Bucket Dredger | Power Type: | Diesel |
Dredging Depth: | 15 m | Draught: | 45 cm | Place of Origin: | Shandong, China |
Brand Name: | Xianke | Model Number: | XKSBD150-15 | Dimension(L*W*H): | 25*5.2*1.1m |
Weight: | 32t | Certification: | see the product lable | Warranty: | 6months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Introduce of chain bucket sand dredger:
XKBD series bucket chain dredger have good ability to fit different kinds of geological condition. With the advantages of stable performance, long working life, little cost, high efficiency and little maintenance, bucket chain dredger is suitable for sand digging from river and lake. This kind of dredger can also be used in salt mining,offshore dredging,hard riverbed exploiting and channel cleaning. The pure sand after sieved and washed by the dredger is widely used i construction industry.
Bucket chain dredger can be equipped with ore mining machinery for gold selection or iron separation.The machinery has the features of automatic work,good extraction rate,high capacity.
Working principle:
When dredging, put the lower end of the bucket bridge into some depth of the water, making the sand bucket touch the sand. Driven by the guide pulley on the upper end of the bucket bridge, the bucket chain operates continuously. It can dredge the sand by the mud bucket on the bucket chain. The dredged mud and sand are transported to the top of the bucket tower. After changed direction by guide pulley, the mud and sand in the bucket are put into mud well from the mud bucket under gravity of themselves. The mud and sand are discharged out of the ship board by the chute.
Technical parameter:
1 | Hull size | 25*5.2*1.1m |
| Single pontoon size | 25*1.8*1.1m |
| Draught | 0.40m |
| Max Dredging depth | 15m |
| Max Sand output | 150cbm/h |
2 | Bucket quantity | 80pieces |
3 | Main power | 30kw |
4 | Bucket reducer | JZQ850 |
5 | Winch | JZQ400 |
| Winch power | 11kw |
6 | Screen size | Inner diameter900mm, length 1800mm |
| Screen power | 5.5kw |
| Screen reducer | JZQ350 |
7 | Sand conveyor | 12m |
| Power | 11kw |
| Reducer | JZQ350 |
| Stone conveyor | 10m |
8 | Anchors | 3sets |
9 | Wheel washer | 2600mm dia, 1500mm width |
| Power | 11kw |
| Reducer | JZQ650 |
Our Service:
1. Reply your enquiry in 24 working hours.
Experienced staffs answer all your question in professional and fluent English.
2. Proper and practical design according to your requirement is available.
3. Within warranty period,we provide free repair if quality problems occurs.
4. We send engineers to assemble and train your workers.
5. We supply high quality spare parts in low price.
Pictures show:

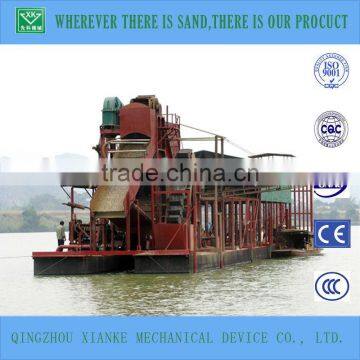

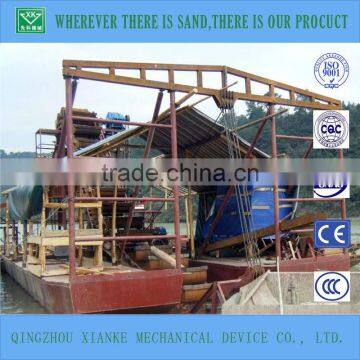

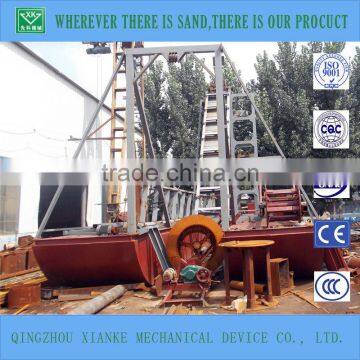

♦ during process

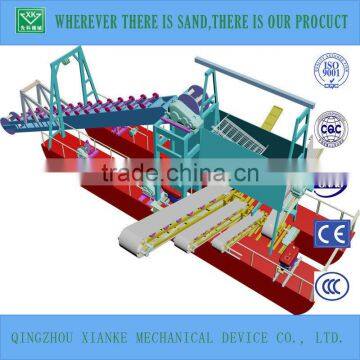

♦ design diagram

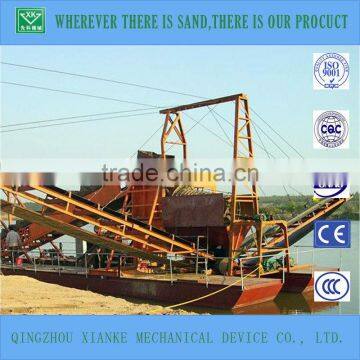

♦ Working in Shanxi Provence, China
♦ customer visiting
♦ Exported to Library
