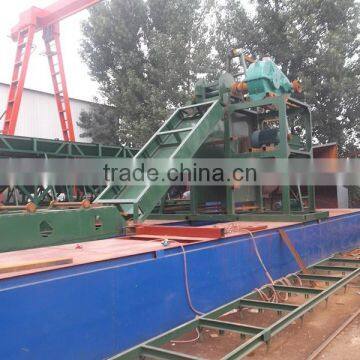

Dredger hull steel structure:
The shape of pontoon is square and framework
The hull is welded with steel, and the steel all is high quality and marine used which is authorized by classification society. The thickness of bottom steel plate is 8mm, the thickness of shell steel plate is 6mm, the thickness of deck steel plate is 4mm. Inner structure is welded with 6*6 angle steel.

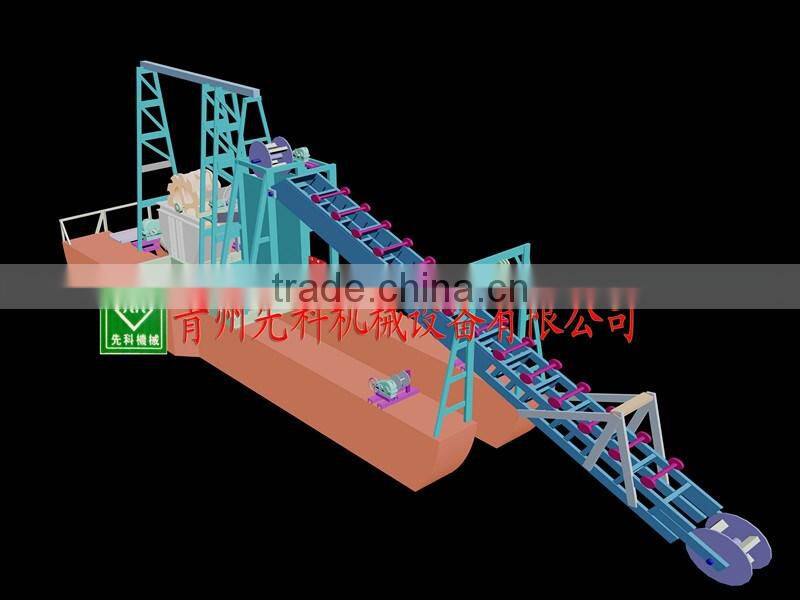

The floating body is fixed by the upper part of the truss to 2 square floating bodies, and forms a complete dredger shape.
The surface of the whole set of welding slag and rust treatment, spray antirust paint. All motors and electrical equipment protected.the watertight box and protective cover is available.

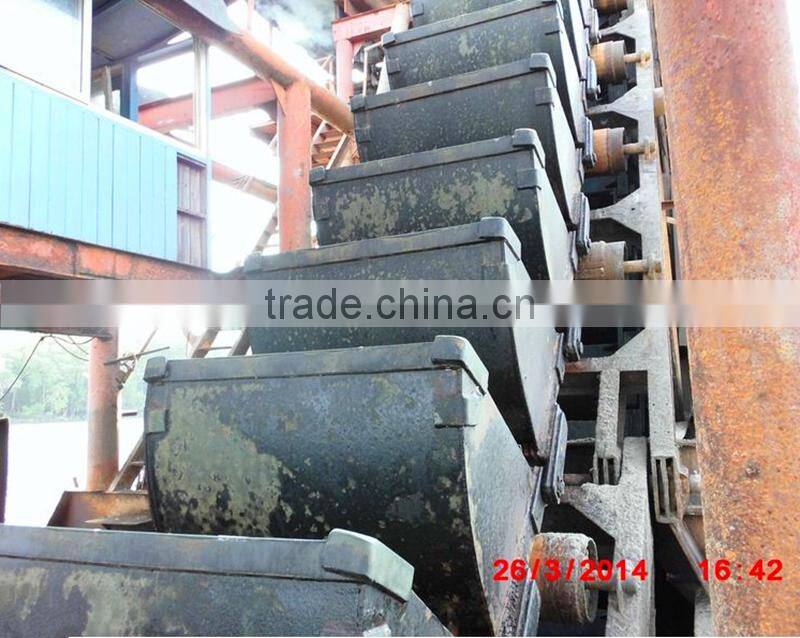

Bucket dredger working principle:
Through continuous rotation of link joints, the buckets will dredge the material and make the material into a drum screen, then the screen will remove the big stones, and stones will be transported to the river at back of the dredger by conveyor. At the same time, sand will drop down from the screen mesh, then it will be transported into a barge or to the bank by conveyor.
Main mechanism facilty for bucket dredger:
Dredging ladder(27.6m length),bucket (100 pcs),bucket ladder elevator,gantry frame (3.8m height),central main frame(4.0m height),drum screen(1500*3200mm),conveyor belt,anchor gear,generator,electric welder.
Main parameters:
Hull length | 30m |
Hull width | 6.4m |
Hull depth | 1.2m |
Draught | 0.6m |
Dredging depth | 20m |
Output capacity | 200 m³/hour |
Bucket power | 50 kw |
Bucket quantity | 100 pcs |
Our service and other products
Our company produces many products like: cutter suction dredger, jet suction dredger, sand suction dredger, sand dredger, sand bucket chain dredger, gold dredger, gold bucket chain dredger, gold suction dredger, gold mining machine, gold panning equipment, magnetic separator machine, magnetic separator dredger, iron mining dredger, sand washer, sand screen, sand making machine, small sand vessel, and spare parts.
Our manufacture features:
1,Strict quality management system.
2,Reliable parts supplying and assembly process.
3,Competitive and reasonable price offer.
4,Good after sales services for our customers.
