Specifications
1.Advanced chainstitch sewing head.2.Equipped with level-adjusting device.
3.Auto-lifting table

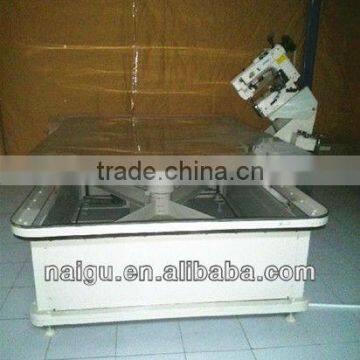

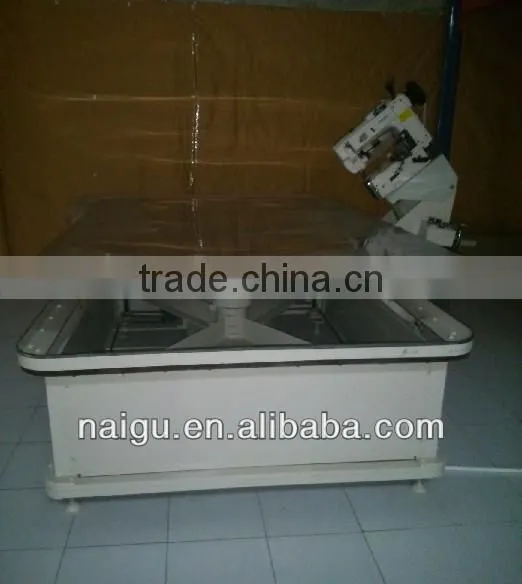

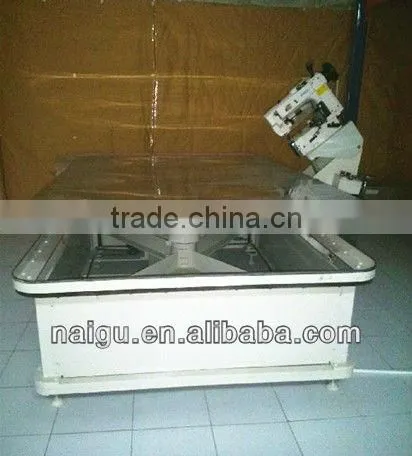

Mattress Machine

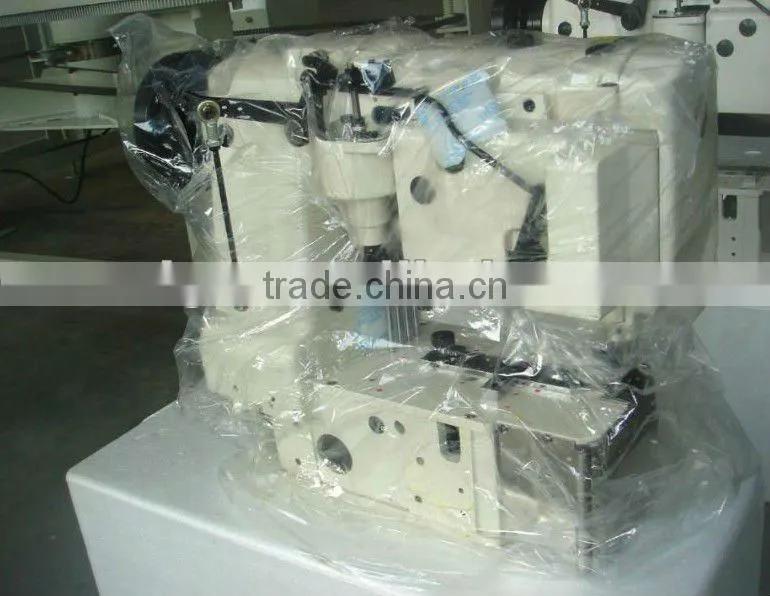

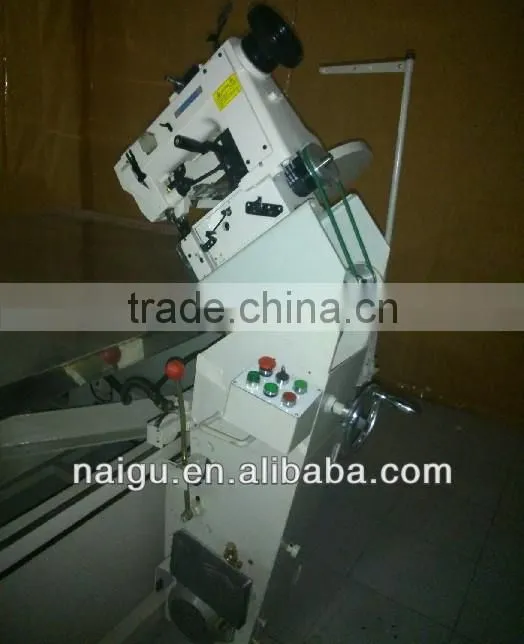

This machine is mainly used for mattress tape sewing. The main advance is sewing head need not moving, but the lifting machine can turn angles to sew mattress of different thickness. It is equipped with singer-300U chain sewing head and microcomputer controlling system imported from Japan. When producing, the conveyer can move forward, backward, turning 90 degrees or 180 degrees to sew the whole mattress automatically. It may change walking carriage's turning speed automatically , which make mattress sweed turn-flange more beautiful
mattress thickness : 100-300mm
lifting range of worktable : 140mm
worktable size : 1420*1950
moving motor power : 0.75w
working voltage: 3-phase AC 380v
working angle of sewing head : 30 °-55°
speed of sewing : 6.5m/min
speed of the corner : 1-6.8m/min(adjustable)
the whole machine dimension : 1950*1420*1650mm
