Product Details
| Electric Current Type | AC | Blade Material | Stainless Steel | |
| Mounting | Duct Fan | Place of Origin | Zhejiang, China | |
| Brand Name | ODM/OEM | Model Number | CH-IF | |
| Power | 68-334 | Voltage | 120v/60hz | |
| Air Volume | 190-1140 | Speed | 2730,2700,2480,2540 | |
| Certification | CE, ROHS, UL | After-sales Service Provided | Overseas service center available |
Product Description

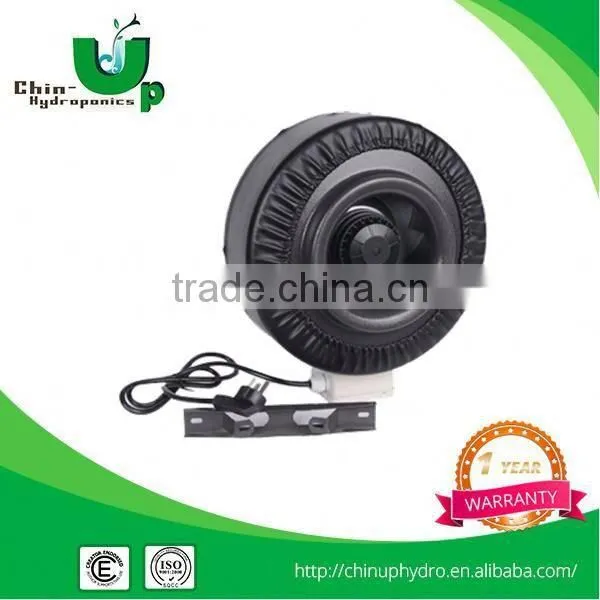

less noise 2" inline fan blower/ can fan inline fan/ inline centrifugal fan
Features:
1. Impact resistant, sound absorbing heavy gage steel casing(Powder coat epoxy finish)
2. Permanently lubricated balanced motor ensures long life
3. Aerodynamic design allowing more air flow
4. Extremely quiet, maintenance-free motor
5. Max Temperature 140 celsius (284 farenheit)
6. 100% speed controllable allowing better balancing of the ventilation system
7. Cycle 50/60Hz, Voltage 110/220V.
8. Back Curved impeller matchs well with the housing to maximise the airflow, minimise the noise.
9. CE&Rohs Certs
Inline Fan for US Market
Inline Fan for US Market | |||||||
Model | Item | Voltage/Frequency | Airflow (CFM) | Speed (RPM) | Power | Current | Package Size |
CH-IF4 | Inline Fan 4" | 120v/60hz | 190 | 2730 | 68 | 0.56 | 12.4"x10.4"x9.6" |
CH-IF6 | Inline Fan 6" | 120v/60hz | 440 | 2730 | 121 | 0.97 | 14.4"x14.4"x10" |
CH-IF8 | Inline Fan 8" | 120v/60hz | 720 | 2700 | 195 | 1.72 | 16"x14.8"x12" |
CH-IF10 | Inline Fan 10" | 120v/60hz | 790 | 2480 | 236 | 2.07 | 16"x14.8"x12" |
CH-IF12 | Inline Fan 12" | 120v/60hz | 1140 | 2540 | 334 | 3 | 19.2"x17.6"x11.6 |
Inline Fan for EU Market
Inline Fan for US Market | |||||||
Model | Item | Voltage/Frequency | Airflow (CFM) | Speed (RPM) | Power | Current | Package Size |
CH-IF4 | Inline Fan 4" | 220v/60hz | 190 | 2730 | 68 | 0.56 | 12.4"x10.4"x9.6" |
CH-IF6 | Inline Fan 6" | 220v/60hz | 440 | 2730 | 121 | 0.97 | 14.4"x14.4"x10" |
CH-IF8 | Inline Fan 8" | 220v/60hz | 720 | 2700 | 195 | 1.72 | 16"x14.8"x12" |
CH-IF10 | Inline Fan 10" | 220v/60hz | 790 | 2480 | 236 | 2.07 | 16"x14.8"x12" |
CH-IF12 | Inline Fan 12" | 220v/60hz | 1140 | 2540 | 334 | 3 | 19.2"x17.6"x11.6 |
Hydroponics Inline Fan in 4" 6" 8":
Packing Details:

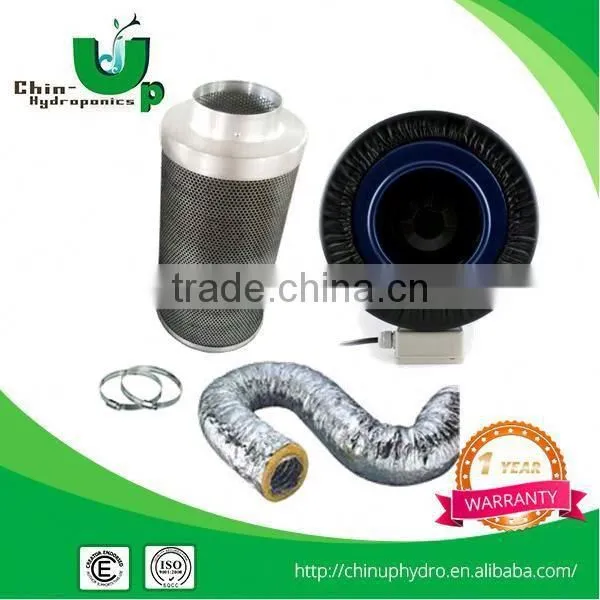

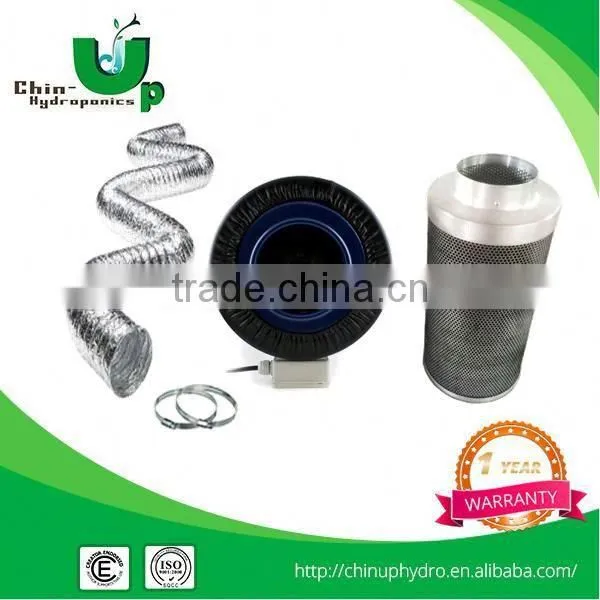

Reletive ventilation Kits:
1. one carbon filter, 600mm height, 5cm thickness carbon, aluminum flange, cotton
pre-filter included
2. one inline fan, leather covered
3. one 10 meter aluminum ducting, double lays, 2pc clamps included

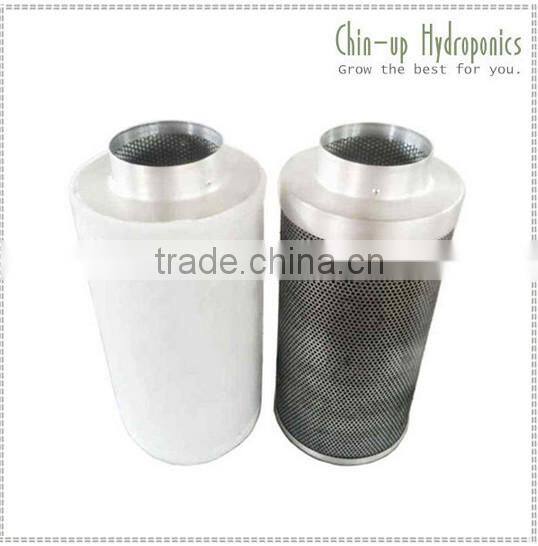

Hydroponics Air Carbon Filter:

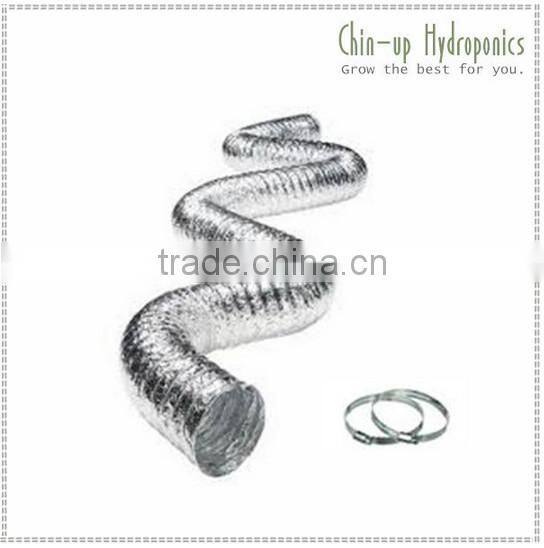

Hydroponics Aluminum Ducting:
