Specifications
Polycarbonate Sheet Greenhouse for Flowers1.ISO9000
2.Easy structure
3.Easy assembly
4.Long durability
Galvanized steel frame with W-truss greenhouse for sale
1.single-span film greenhouse
2.Simple structure,
3.easy assembly,
4.long durability,
5 good application with economic cost
detailed information by request
Materials:
- Structure

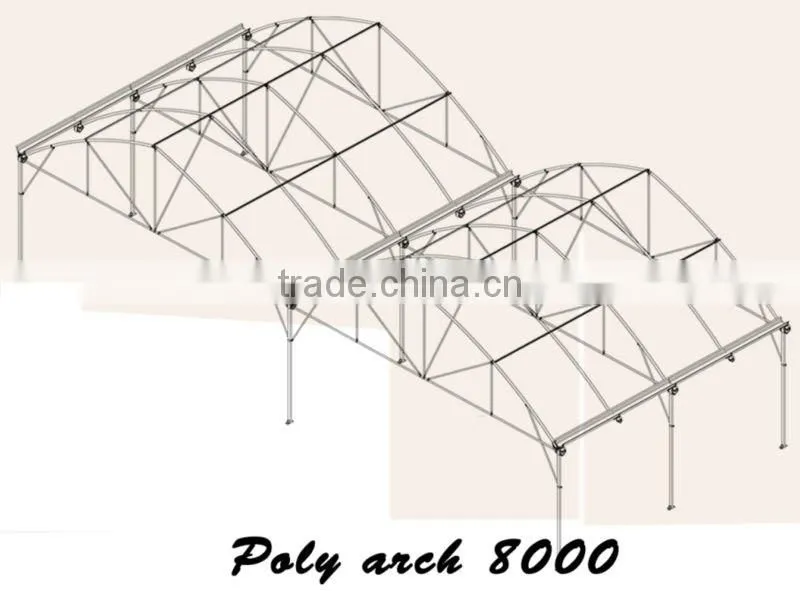

1. Frame - All galvanized steel, pre-punched and bolt together design including:
80 mmx50mm Rectangular HOT DIPPED GLAVANIZED columns 2.0 mm thick (14gauge) on 4 m centers.
Each exposed end wall provided with three (3) 80 mmx50mm Rectangular HOT DIPPED GALVANIZED uprights 2.0 mm thick (14gauge) complete with fasteners to secure uprights to gable bows.
Horizontal framing for end walls and side walls: European style lock profile D; except the function to fix the film, they, themselves, are also part of the structure to make the greenhouse more sturdy.3runs of side wall framing and 4runs of end wall framing
* 60mm (2.4”) round HOT DIPPED GALVANIZED arches 1.5 mm (16 gauge) thick on 2m centers complete with mounting hardware to secure arches to gutter assembly.
Post Top : special design to connect the arches,pillars and gutter together.
Three (3) runs of European style lock profile D as roof purlins provided per 8m wide house complete with mounting hardware.
(X) Cross bar and “M” truss are provided complete with fasteners and installed at every internal column – on 4m centers.
Cross bars 42*1.5mm horizontal support tube under the arch,
Three 32*1.5mm vertical tube placed from the roof arch to horizontal support tube.
Two 32*1.5mm diagonal tube connect the arches to horizontal tube.
OPTION :Longitudinal V reinforcement of round tubes of 32x1,5 mm. that avoid the movement of the straight plan of horizontal support tube vertical tube.
Eight (8) runs of galvanized steel gutter provided 1.5 mm (16 gauge) thick complete with mounting hardware.
Side ventilation:
Brackets and fasteners as required to assemble frame.
2.COVERING – roof set for poly covering. Poly is NOT included in this price
3.Doors - Neither requested or supplied
4.Mechanical Ventilation – Neither requested or supplied
5.Air Circulation – Neither requested or supplied
6.Fresh Air Inlet Vents – Neither requested or supplied
7.Evaporative Cooling – Neither requested or supplied
8.Heat – Neither requested or supplied
9.Benches – Neither requested or supplied
10.Internal Retractable Shade/Heat Retention System – Neither requested or supplied
11.Environmental Control Systems – Neither requested or supplied
12.Freight– For your reference
