Thermostat controller

 Thermal controller

1.Product feate:

    Hydroponic  control gear for professionals

    Elecronic micro-controlled starter

    Safey protection device fitted

    Long service life

    Super high effciency

2.Operation instructions

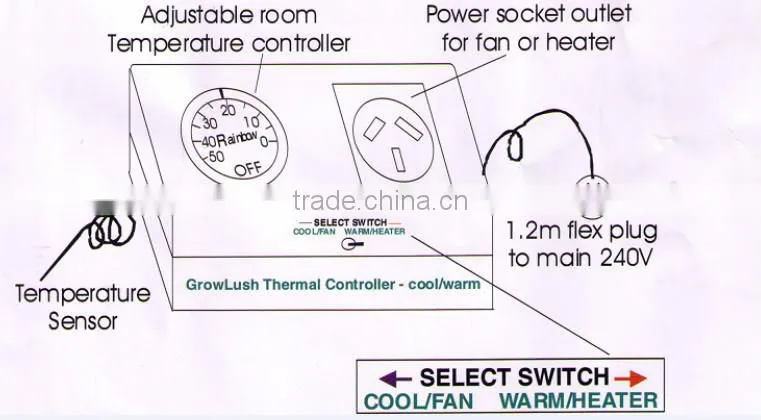

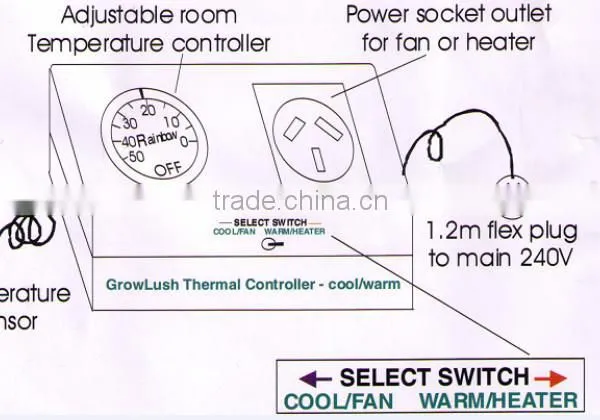

1)    In summer,set the Select Switch on"COOL/FAN"and adjust room temperature controller to required temperature,say 20℃ .If the room temperature is up to 20℃ or above ,the electric fan which is plugged into the power socket outlet on the Thermal Controller unit will be automatically switched on.When the room temperature is dropped below 20℃ ,the fan will be automatically stopped! The stainless steel temperature sensor pole should be always kept away from the cooling device, and measures external free air and room temperature.

2)     In winter,set the Select Swich on "WARM/HEATER" and adjust room temperature controller to required temperature ,say 20℃ .If the room temperature is below to 20℃  ,the electric heater which is plugged into the power socket outlet on the Thermal Controller unit will be automatically switched on.When the room temperature is up to or above 20℃, the heater will be automatically stopped! The stainless steel temperature sensor pole should be always kept away from the heating device, and measures external free air and room temperature.
