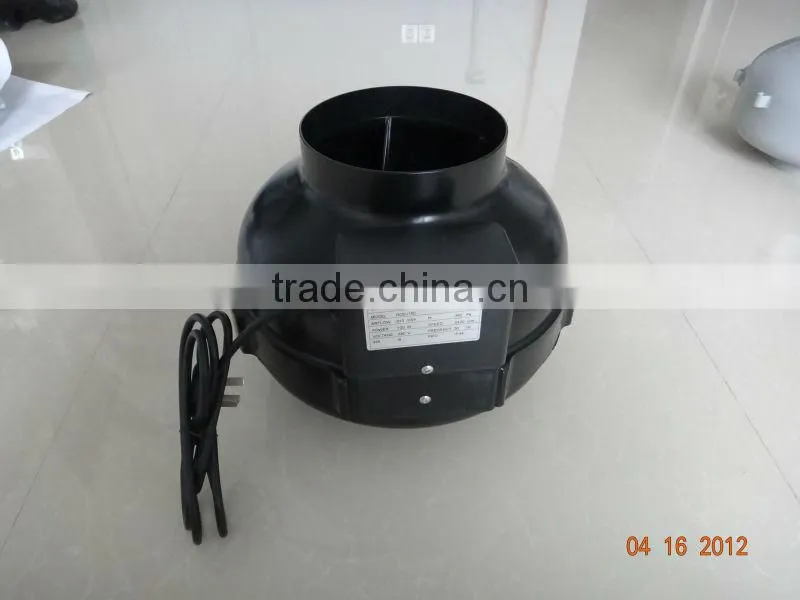

Inline Centrafugal Fan for Hydroponics

Inline centrafugal fan for hydroponics

Housing Material: Plastic (ABS)

Typical sizes available: Φ100; Φ125; Φ150; Φ160; Φ200; Φ250; Φ305; Φ315

Colour available: White ( Other colour : black, grey,green, yellow, etc)

It is used to transmit and strengthen the air flow inside a network of ventilation ducts.

The fan is equipped with ball bearing, enabling the installations to be mounted both horizontally and vertically.

The casing is made from Plastic (ABS) and the fan sat included fixings for a secure installation.

Accessories: It is possible to connect a variable speed controller, Providing the customer with variable airflow setting.

Specific technical parameter:

Model Voltage Frequency Power Rotate AirFlow Pressure

(DIA) (V ) (HZ) (W) (R/Min) (M3/H) (Pa)

Φ100 110~230 50/60 61 2450 286 336

Φ125 110~230 50/60 64 2550 368 310

Φ150 110~230 50/60 97 2550 591 388

Φ160 110~230 50/60 125 2500 666 357

Φ200 110~230 50/60 145 2550 1088 569

Φ250 110~230 50/60 158 2450 1147 541

Φ305 110~230 50/60 215 2450 1813 653

Φ315 110~230 50/60 222 2450 1831 660
