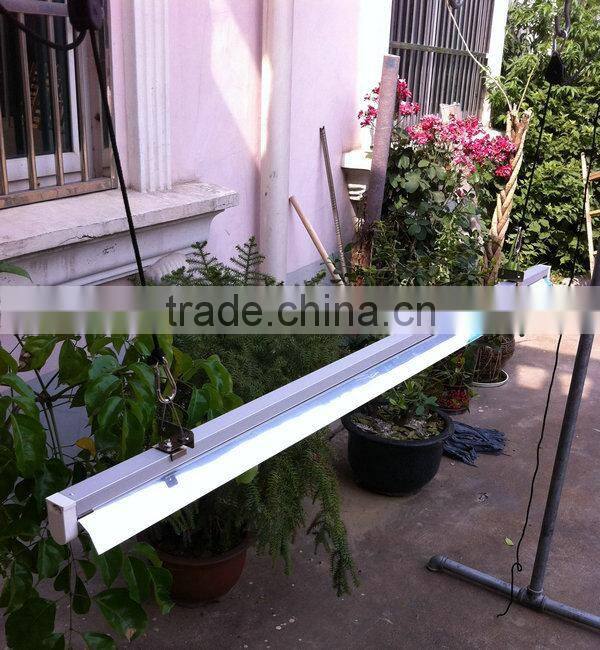

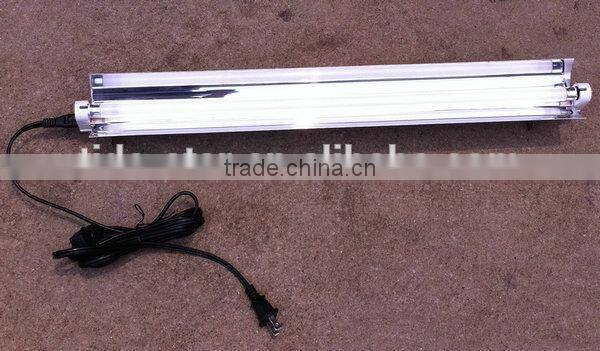

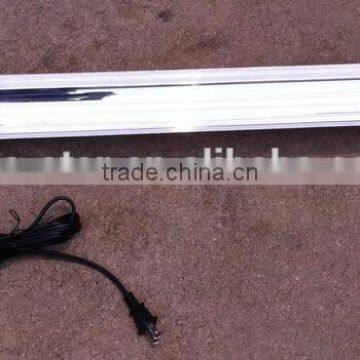

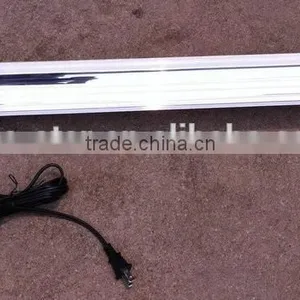

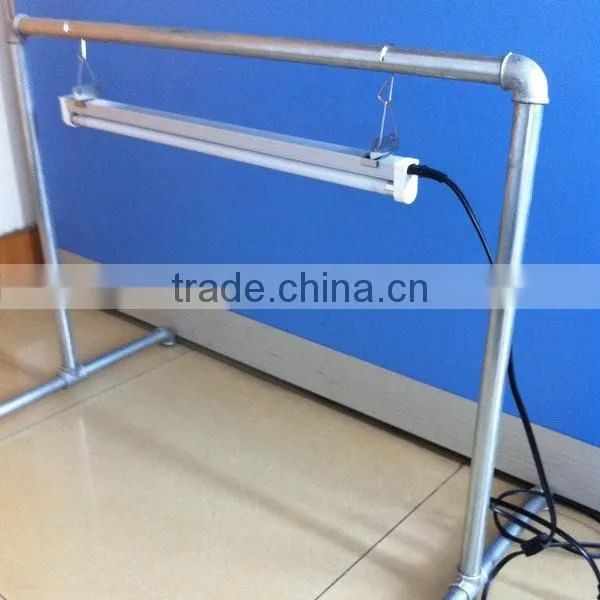

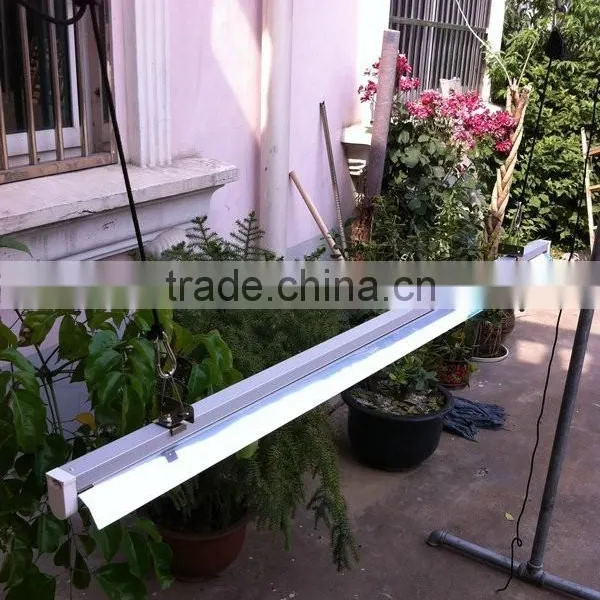

Single Strip T5 grow lighting fixture

Single T5 strip grow light fixture

Application

Seedling and sproutings

Cuttings

House Plants

Flowers

Herbs

Features:

T5 Fluorescent bulb includes electronic ballast, clips and fixture

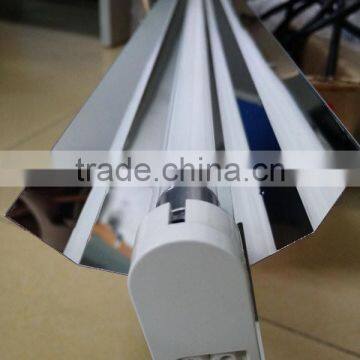

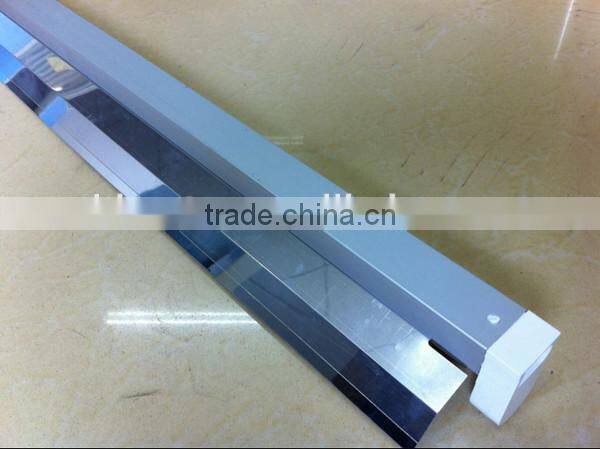

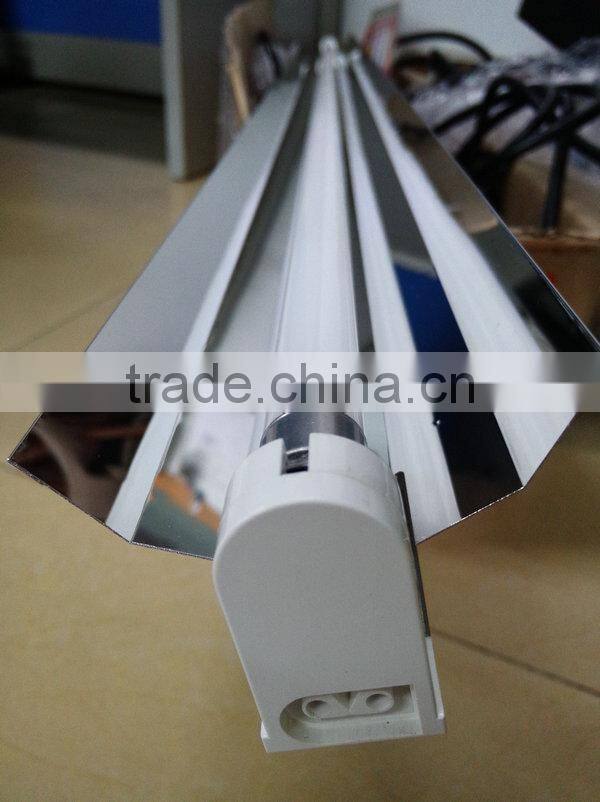

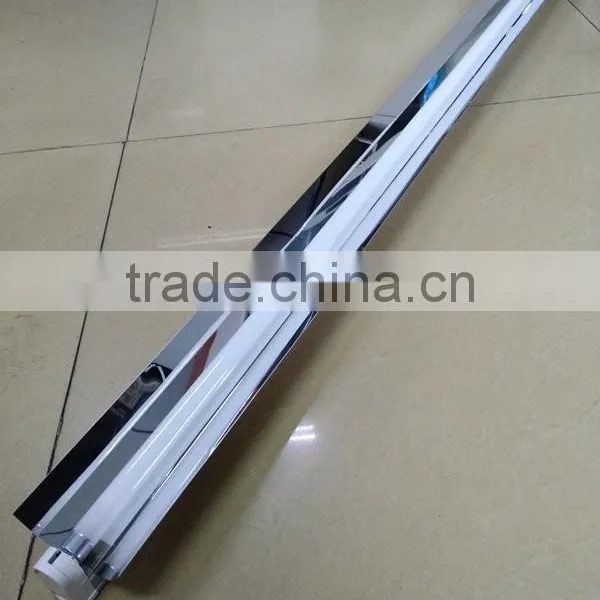

Reflector kit is included with reflector wing and linking hardware

54 Watts

6400K tube included

Ready to start lighting immediately

Low heat

No frequency flickering

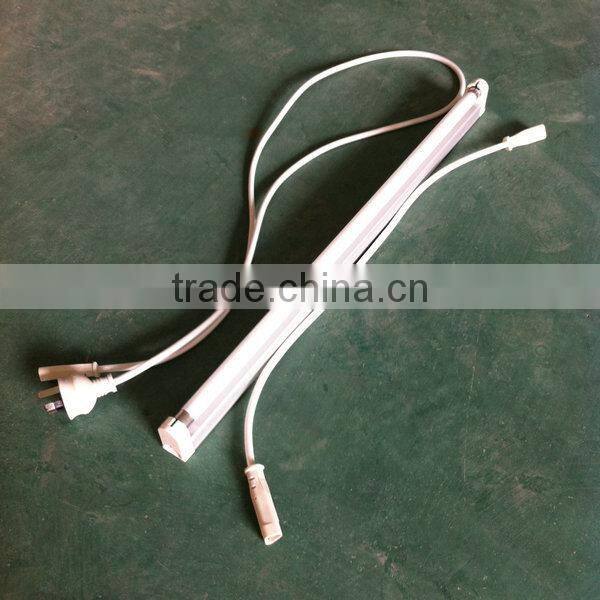

6’ power cord included

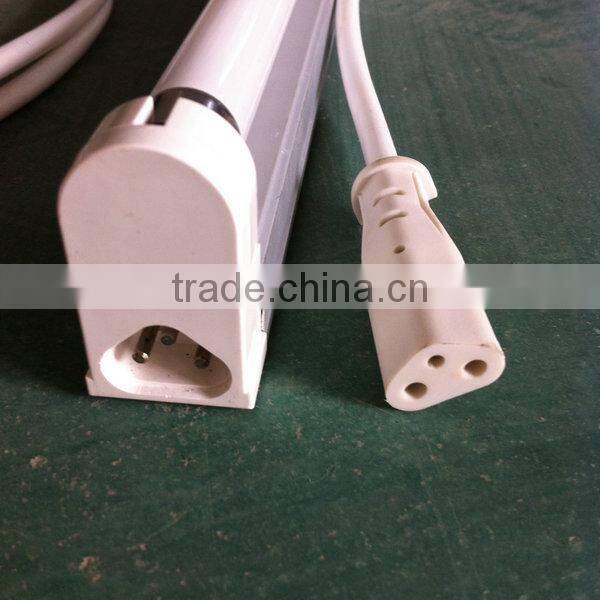

“Daisy-chain” cable allows the user to connect up to 8 units

Simple design is lightweight, compact and easy to use

Specification

Rated Voltage(V) 120V

Rated Voltage Range(V) 110-130V

Work Voltage Range(V) 99V-143V

Electronic Power Frequency (Hz) 50Hz/60Hz

Rated Input Currency(A) 0.75

Rated Input Watt(W) 57

Rated Load (W) T5 54W

Power Factor 0.5

Work Frequency(Khz) 20-33KHz

Lamp Base G5

Tube Dimension(MM) T5

Working Temp Range(°C) - 10°C ——40°C

Qualified Standard UL/FCC

Life(h) >10000H

Item Rated Voltage (v) Power (w) Potent Life (h) Longness (mm) Current (A)

TD-S14 120/60Hz 14w 10000 574 0.21

TD-S24 120/60Hz 24w 10000 574 0.36

TD-S28 120/60Hz 35w 10000 1174 0.42

TD-S54 120/60Hz 54w 10000 1174 0.82

Lighting Recommendations

keep the tubes 2-4" away from the tops ofthe starts. Give starts 16-18 hours per day of light. When starts are moved to their permament location be sure not to sunburn them with more intense light. Gradually increasing exposure over a few days is recommended.

Safty Warnings

Do not use with dimmer or adjustable circuit

Indoor use only
