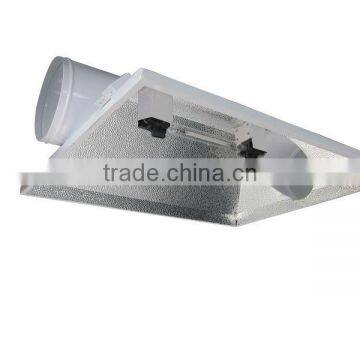

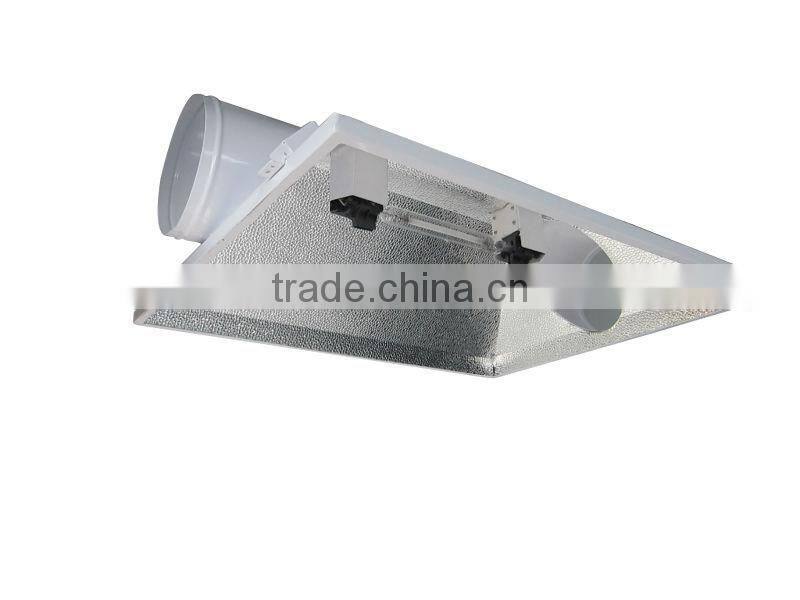

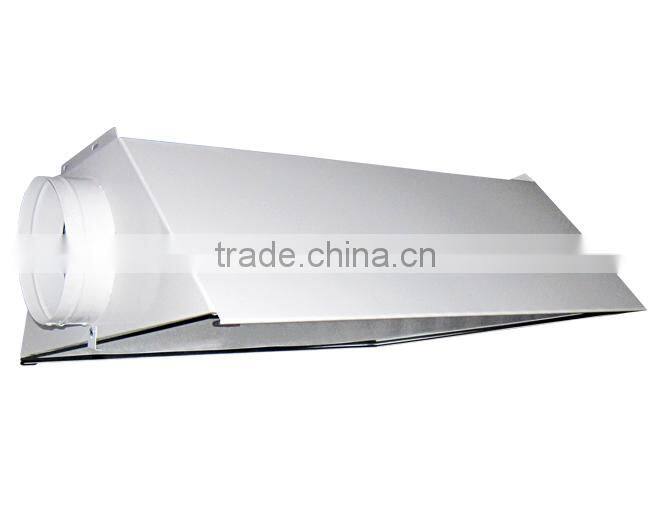

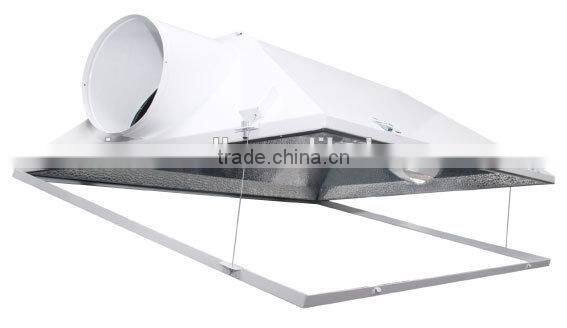

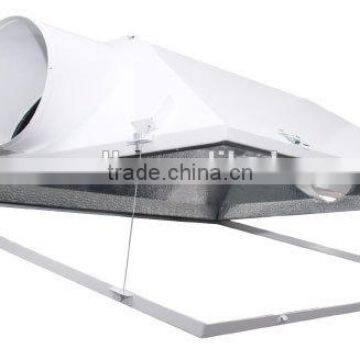

hydroponics grow light fixture
A. Features:
GENERATION II WITH MORE EVEN LIGHT DISTRIBUTION!
1) Material: Highly reflective aluminum
2) Grow with the biggest and the best.
3) Broad light spread allows close placement of plants for maximum light delivery in low-clearance locations.
4) Equipped with safety cables for safe and easy maintenance.
5) Constructed with heavy duty pre-galvanized steel.
6) Completely sealed gasketed glass provides tight fit.
7) Made from premium highly reflective aluminum
8) Comes with built -in socket, 15' pre-wired lamp cord, and hanging hooks.
9) New Design: Now available with wide side hinged opening with latch.
10) Accepts: HPS400w~1000w/MH400w~1000W.
B. Specifications:
Description | Order Code | Reflective Material | Reflector Size | Packaging Dimensions | Accepts | Case Qty |

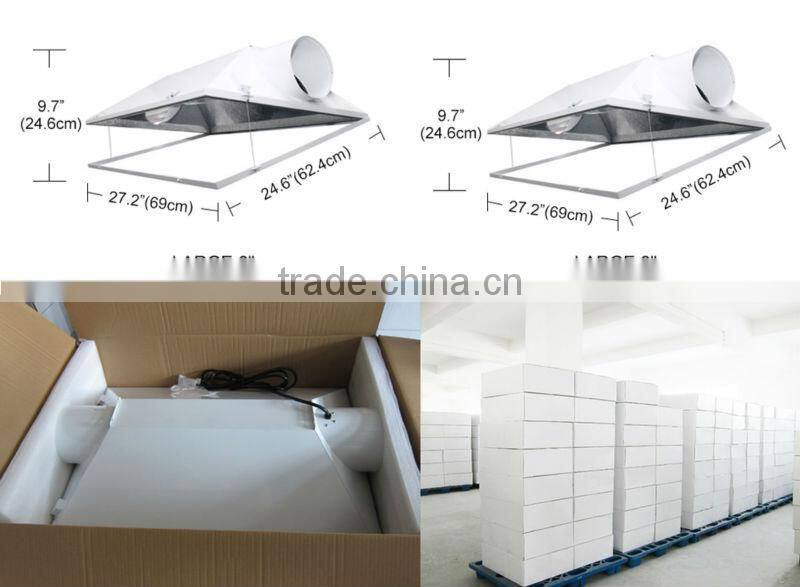

LARGE 6"Air-Cooled Reflector | 303212 | Highly reflective aluminum | 27.2" L24.6" W9.7" H (69*62.5*24.6cm) | 77.5*68.5*31.5cm | HPS400W~1000W MH400W~1000W | 1 |
LARGE 8"Air-Cooled Reflector | 303232 | Highly reflective aluminum | 27.2" L24.6" W9.7" H (69*62.5*24.6cm) | 77.5*68.5*31.5cm | HPS400W~1000W MH400W~1000W | 1 |
3XL 6" air-cooled reflector | 303312 | Highly reflective aluminum | 37.4"L26.3"W8.1"H (95*66.8*20.6cm) | 98*72.5*25.5cm | HPS400W~1000W MH400W~1000W | 1 |
| 3XL 8" air-cooled reflector | 303332 | Highly reflective aluminum | 37"L29.9"W11.8"H (94*70.1*25.9cm) | 98*77*31.5 CM | HPS400W~1000W MH400W~1000W | 1 |
| Extreme 6" air-cooled reflector | 303411 | Highly reflective aluminum | 42.5"L30"W9.5"H (108*76.2*24.1cm) | 115*79.5*26.5CM | HPS400W~1000W MH400W~1000W | 1 |
| Extreme 8" air-cooled reflector | 303431 | Highly reflective aluminum | 42.5"L30"W10"H (108*76.2*25.4cm) | 113.5*81*30.5cm | HPS400W~1000W MH400W~1000W | 1 |
Advantages of Sinowell's air cooled reflector:
Sinowell reflector Other reflectors
Hydroponic air cooled reflector with different sizes:
Extreme 6"/8" air cooled hood
Small air cooled 6"

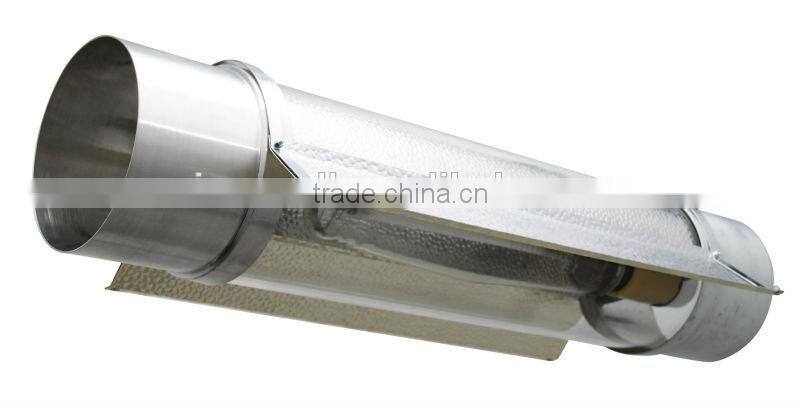

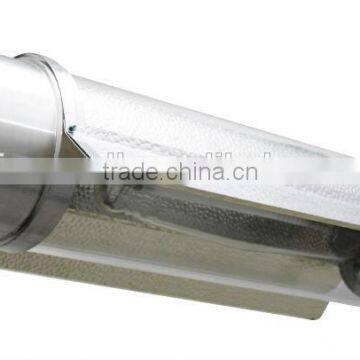

Cool tube 6"/8"
Double ended air cooled hood 6"/8"
Intergrated double ended lighting fixture with ballast

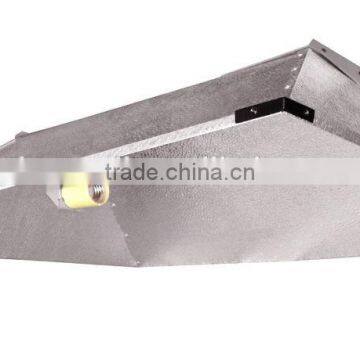

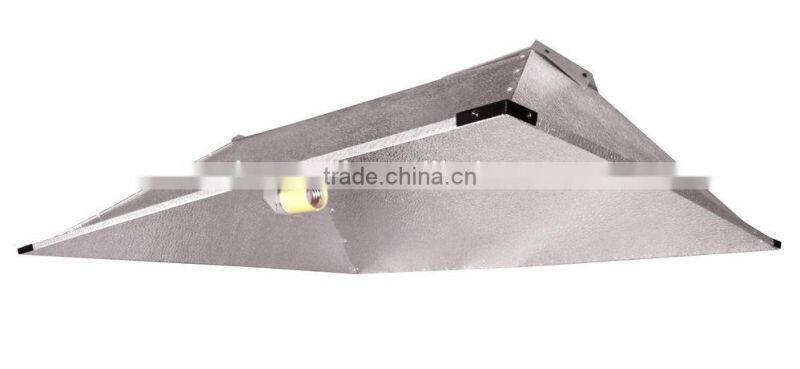

Stackable hydroponics reflector
Q: My bulb, ballast and reflector combination is not working. How can I fix this?
A: The problem might be a bad connection in the mogul socket. Make sure to disconnect the unit from the power supply, and then look inside the mogul socket for a metal tab. Pry this tab upwards a little bit to make better contact with the bulb base.
Q. How high do I need to hang my lights above my plants?
A: A general guideline for the proper hanging height of an H.I.D. lamp would be 12" – 48" depending on wattage. The higher the wattage the further away you want the light to be from your plants due to the amount of heat. HID lighting will be further away than a fluorescent fixture because of this. When mounting your lighting fixture take into account the type of plant and how tall the plant will grow. You want to keep the light as close as you can, but not so close to burn the plant. A simple rule is "if it is comfortable for the back of your hand, it will be a safe distance for your plants". Air-cooled reflectors allow you to place higher wattage bulbs closer to the plants.
Doing a little research on the type of plant and where it comes from will help in determining how much (or little) light your plants like. With fast growing plants, you may need to check the hanging height on a regular basis as plants that get too close to the lamp will be severely burned.
Q. How big of an area will my light cover?
A: The size of the garden area will determine the wattage you need. If we assume that the plants will get no sunlight, a 1000 watt light will cover about 7 x 7 feet of growing area. A 600 watt will cover 6 x 6 feet, a 400 watt will cover 4 x 4 feet, and a 250 watt will cover 3 x 3 feet. These sized areas would be considered the "Primary Growing" areas. These lights will light-up larger areas, but plants plced outside of the Primary Growing area, will stretch and bend toward the light; a phenomenon called phototropism. Keep these areas of coverage in mind when using multiple fixtures. The best results occur when the areas of coverage overlap.
