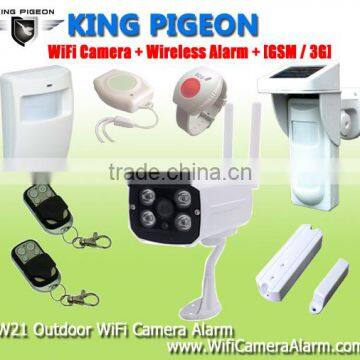

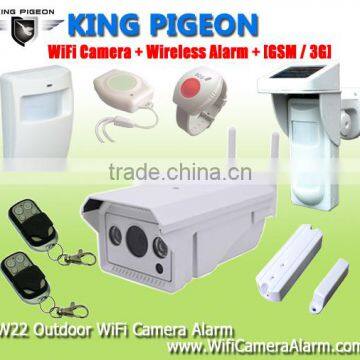

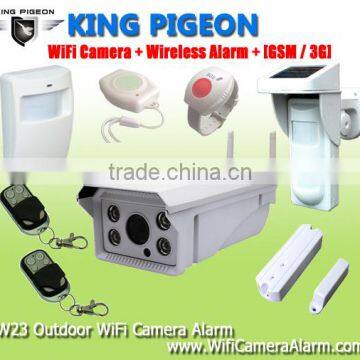

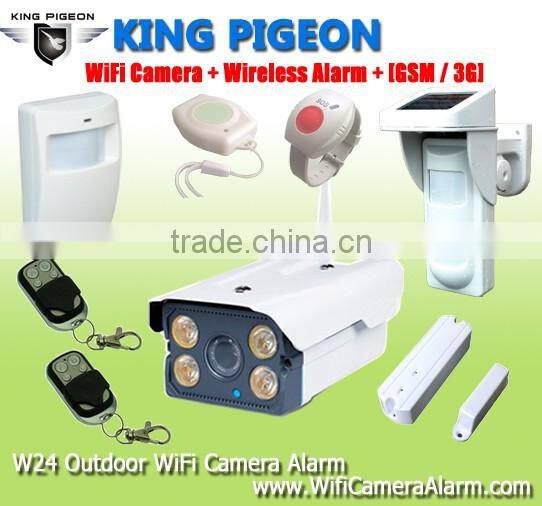

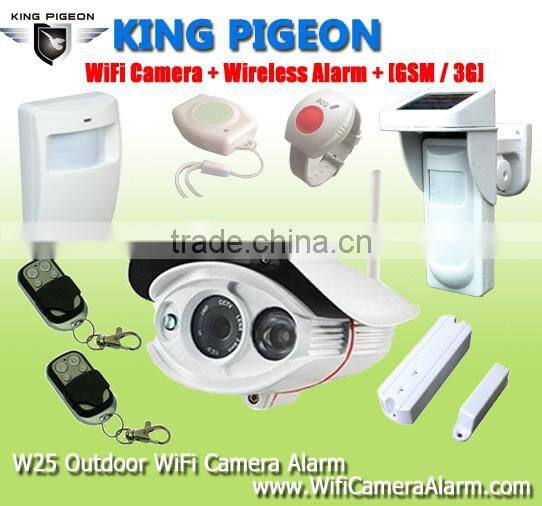

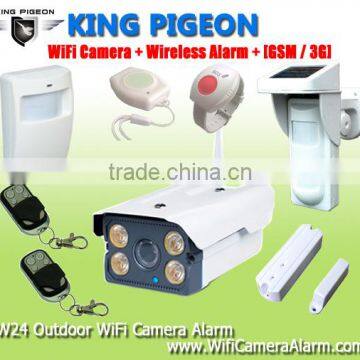

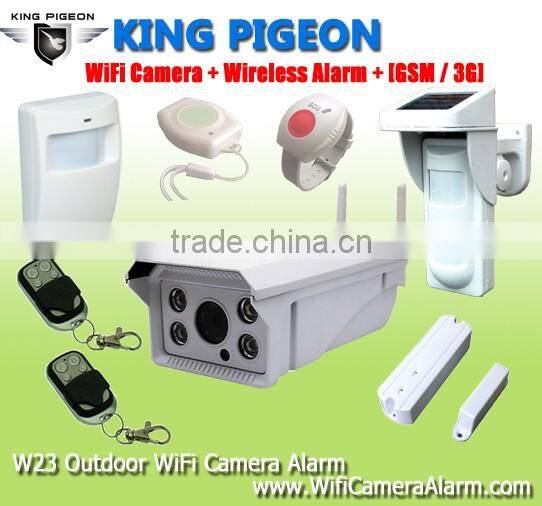

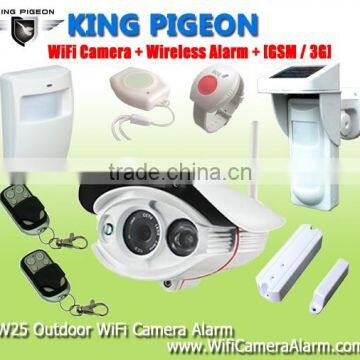

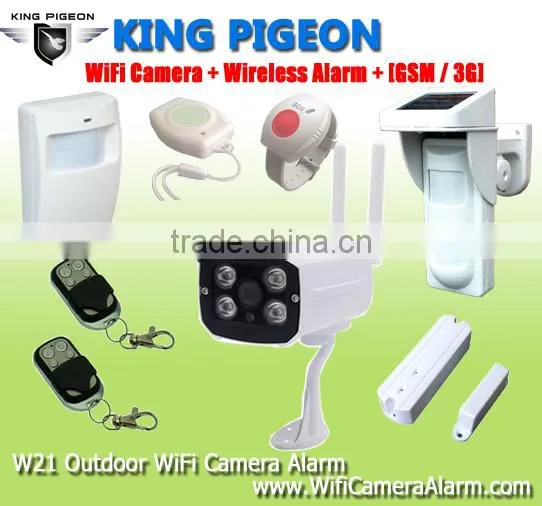

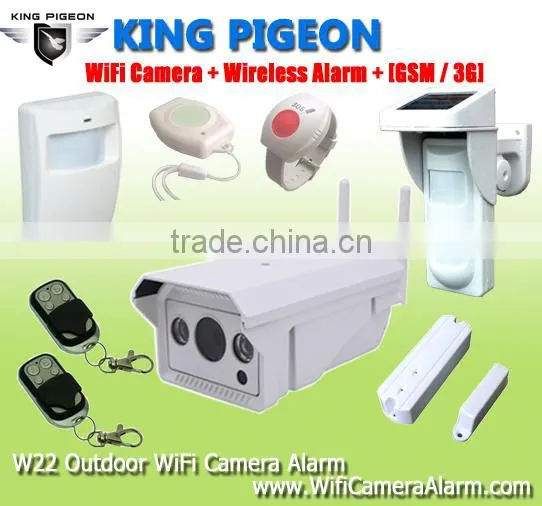

King Pigeon Wireless Outdoor WiFi Camera Alarm +GSM/3G Home Alarm System
King pigeon Wireless Outdoor WiFi Camera Alarm +GSM/3G home alarm system
W11Wireless WiFi Camera Alarm adapts advanced technology. It can connect WiFi automatically after connected power supplier without any other setting. After connected WiFi, you can use your mobile phone or PC check the on-site video anywhere. The Wireless WiFi Camera Alarm has the function of two-way voice intercom, alarm, TF card save recording and PC centralized management.
Function:
1. Support mobile video. The Wireless WiFi Camera Alarm support mobile monitoring by installing client software. The monitoring image quality can be adjusted by mobile network speed.
2. Two-way voice intercom. Remoting PC and mobile can talkback with this Wireless WiFi Camera Alarm. Monitoring voice and video.
3. Support PTZ control. Built-in RS485. The camera can monitoring left and right 355 degrees and up and down 90 degrees.
4. The wireless camera alarm has it own ID number. Every camera has wrote a ID code in its bottom. When doing remote monitoring, just need use this ID code, no need other domain.
5. Support browse with several windows. Remote IE( Win7 IE 360 Firebox Chrome Internet Explorer) checking software, support browse with 16 windows at the same time.
6. Support English, Spanish, Dutch, French, Italian, Polski, Chinese.
7. Support set frame rate. It can set 1-25 frames per second as image transfer rate.
8. Support infrared night view. 11pcs LED with 0.3 low LUX night viewing up to 10m.
9. Support motion detect. It can control sending email and FTP uploading recording and alarm by sensitivity.
10. Support remote monitoring. If install this WiFi camera alarm in a place, user can monitoring on-site situation at anywhere and anytime by the camera ID code.
11. Support wireless and real-time alarm. It has 64 wireless zones.
12. Centralized platform to watching. Centralized monitoring software is a professional video monitoring software. It support recording, display multi camera monitoring screen on one platform at the same time. This software also can control one of the camera monitoring, changing recording angle.
Specifications
System | Main Processor | Embedded Hi3518E |
Operating System | Embedded LINUX | |
Video | Image Sensor | 1.3MP CMOS |
Image Coding Standard | H.264 | |
Video Standard | PAL | |
Monitoring Image Quality | 720P:1280*720 | |
Replay Image Quality | 720P @ 25 fps | |
Image Motion Detect | Support | |
LUX | 0.1 LUX/F1.2 | |
Infrared | Support | |
Video Calling | Support | |
Screen Shot | Support | |
Audio | Coding Standard | G.711A |
Audio Output | Inbuilt 45dB Microphone | |
Audio Input | Inbuilt 8Ω, 5W Speaker | |
Recording | Method | Manually Recording, Dynamically Motion Recording, Timing Recording, Alarm Recording |
Save | TF card | |
Video Management | Alarm Input | Learning Wireless Sensor Alarm Input |
Alarm Triggered | Speaker Alarm, Alarm Recording, Screen shot, Send Email | |
Others | Network | One RJ45 Interface, 10/100 self-adaption |
TF | One TF Interface | |
WIFI | Support, 802.11 b/g/n | |
Power Supplier | DC 5V 2A | |
PTZ Control | Inbuilt horizontal and vertical control motor | |
Consumption | 1.5W | |
Working Temperature | 0℃- + 55℃ | |
Working Humidity | 10%-90% | |
Size | 103*110*112mm | |
Weight | 300g |


Why KING PIGEON?
King Pigeon is a professional GSM/GPRS/3G wireless Alarm System, GSM elderly alarm,SMS Controller, Industrial Remote Controller, RTU Data Logger, Telemetry, Temperature Measurement Logger, Power Monitoring, M2M products Designer & Manufacturer in China since 2005.
Welcome OEM/ODM Service
Put Your LOGO on Unit and Package Available!
1. How to make sure the quality?
- Process Quality Control
- Final Quality Control
- Outgoing Quality Control
2. How to get the order?
- First,Tell us the model and quantity of the products you want.
- Second ,we will make a PI for you.
- Third, After confirm everything,the payment will be arranged (Paypal, Western Union,T/T or Ali Trade Assurance for your money safety are welcomed)
- Fourth, we will send you the goods within the promissory time.
3. How about the Shipping?
- The DHL,UPS,Fedex,TNT usually calculate the shipment based on measure size or weight. They compare the measurement size in Cube meters and Gross weight, and choose the large value to calculate the shipment cost. (Calculation Formula is : L*W*H/5000=Measurement Size weight, unit is cm)
- Reference Shipment Cost
For example, ship to Denmark from China.
Weight(Kg) | Shipment Cost | Average Cost for per Kg |
0.5Kg | 22.32USD |
|
1Kg | 28.27USD | 28.27USD |
16Kg | 206.83USD | 12.93USD |
21Kg | 147.13USD | 7.00USD |
31Kg | 210.00USD | 6.77USD |
51Kg | 316.00USD | 6.20USD |
101Kg | 590.00USD | 5.84USD |
201Kg | 1145.70USD | 5.70USD |
- Our recommends:
For samples, ship by Express, usually 3-5days.
While place small order, try to make the finial weight more than 21Kg.
If the order weight less than 100Kg, recommend to ship them by Express.
If the weight is 101kg~200kg recommend to ship them by Air-cargo or express;
If the weight is above 200kgs, recommend to ship them by air cargo or by sea.
- For small order by express, 20-30 pcs per order is the best.
4. What's the delivery time?
- Sample within 1-3days;
- Wholesales 4-7days according different quantities;
- OEM 7-14 days after all info confirmed.
- ODM depends on the detail requirements.
5. What is the warranty of your company?
- 2~3 years warranty for the main unit; one year warranty for the accessories.
- Please send back the defective goods within the warranty period, we will repair them or send you new free.
- Please send to us some pictures and video about it need to confirm your problem then we will send you free new goods or parts instead.
6. Can you do the design for us?
Yes, Just tell us your idea (logo,text., etc) and our professional R&D team will help to carry out your ideas into reality.
