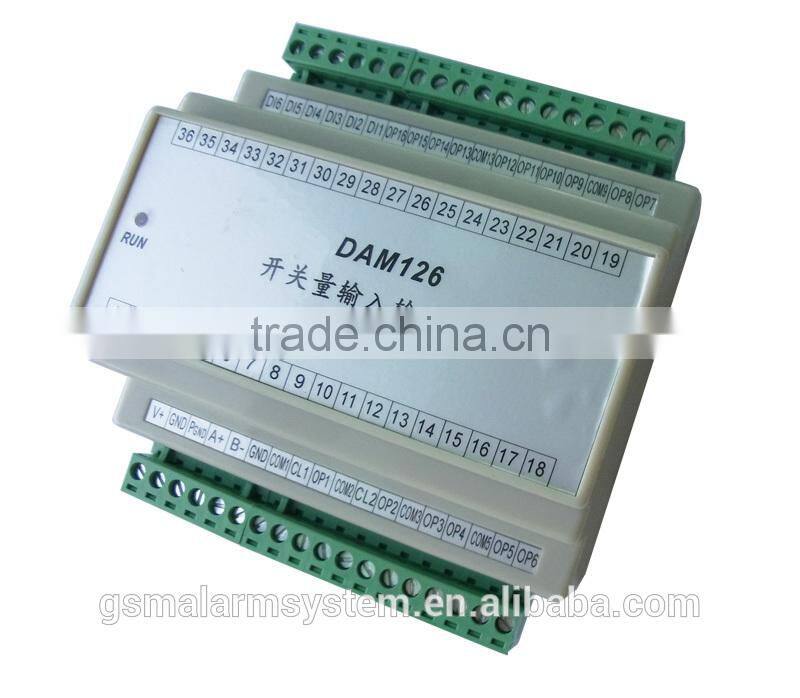

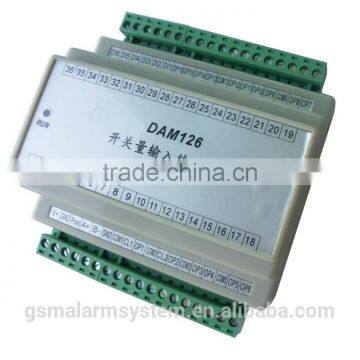

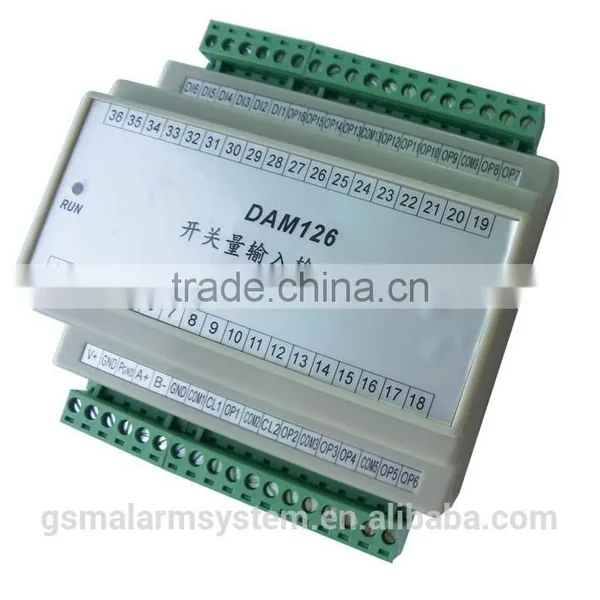

DAM Series DAM126
6DIN+16DO(Relay) Module Module
1. Brief instruction
The DAM126 is for monitoring 6 digital input(can be used as pulse counter), controlling 16 relay output(can be TTL or Pulse output). It supports Modbus RTU Protocol over RS485 serial port. Powered up by 10~30VDC.
The DAM126 is used widely in industrial automation control systems. E.g.: Base Transceiver Station, diesel generator rooms, engine room, transformer substations, telecommunication equipment rooms, power supply systems and so on.
The DAM126 is an industrial class, high reliability, low-power consumption, high stability and high precision data acquisition module.
The DAM126 with fire retardant shell, standard 35mm DIN rail makes it easy to install in fields.
Tips: King Pigeon Hi-Tech.Co.,Ltd not only provides competitive prices, excellent quality but also helps customers to solve technical problems, improve quality, reduce extra costs, and assist customers to become more competitive. If our existing modules cannot meet your requirements, we also design and manufacture new models / products according to buyer's request. Any of your requirements is always welcome!
2.Mainly Features:
6 digital input, Dry contact or Wet contact(logic:0~0.5V or NC=0, +3~30V or NO=1, input voltage range: 0~30V, Input Max. voltage range: -10~40V), can be used as pulse counter input: counter sampling frequency:1KHz, impulse width of high or low level must >1mS, Max. counter value is 4 bytes: FFFFFFFFH;
16 relay output(Rated 250VAC@5A or 30VDC@5A, 14 relay outputs are NO type, 2 relay outputs are NC and NO type.), can be setup as TTL output or Pulse output(impulse width 0.1~20S);
Wide range power supply with reverse polarity connection protection;
Modbus RTU Protocol;
ESD Protection circuit for RS485 serial port;
Using industrial-grade chips;
Built-in watchdog ensure it reliability;
Lightning protection ensure it stability;
LEDs for status indication makes it easy to program in filed.
3. Specifications
Items | Specifications |
Rated Power Input | 10~30VDC(Peak Voltage must≤40V) |
Power Consumption | Typically ≤3W |
Communication Protocol | Modbus RTU |
Modbus Address | 1~247 |
Data Format | n,8,1; e,8,1; o,8,1 or n,8,2 |
Communication Interface | RS485 |
Baud Rate | 1200, 2400, 4800, 9600, 19200, 38400Bps |
Digital Input | 8 digital input, Dry contact or Wet contact |
Relay Output | 16 relay output(Rated 250VAC@5A or 30VDC@5A, 14 relay outputs are NO type, 2 relay outputs are NC and NO type. ) |
Isolated Type | Digital Input / power / RS485 Serial port / relay outputs use the same GND, not isolated |
Withstand Tests | Input /Output /Shell: 2000VAC/min.; 500VDC>100 MΩ |
Installation Type | 35mm DIN Rail |
Operation Temperature | -20~70℃; |
Storage Temperature | -40~85℃; |
Relative Humidity | 5~95%RH.;(at -40℃, non condensate) |
Altitude | 0~3000m |
Temperature Drift | ≤100ppm/℃ |
Dimension | 118×107×59mm (HxWxD) |
Net Weight | 200g. |
