Electric Bike Conversion Kit(24v 500w)

US$ 90 - 120 MOQ: 1 Set

Key Specifications

Voltage:

24V

Design:

Brushless

Wattage:

> 400w

Golden Island Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Voltage 24V

Design Brushless

Specifications

Electric Bicycle Conversion Kit
A.Long working life (>10,000 hours)
B.Excellent performance
C.High efficiency
D.Reliable

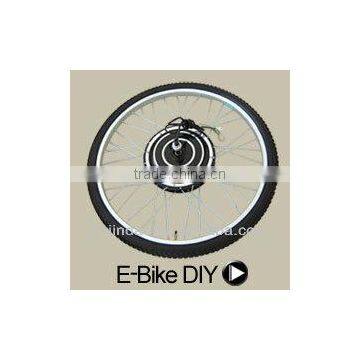

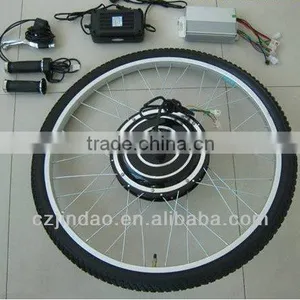

The kit includes motorized wheel,motor controller,speed throttle, power break lever, wire harness( The battery is optional components)
Travel ranges: 38 km/24V12AH or 50km/24V16AH battery pack
Speed: 0-45km/h
Suitable bike frame: 100mm front fork,or 135mm rear fork spacing
Double wall rim special for e-bike
Motor Specifications: 24Vdc/500W/320rpm(front wheel) or 24V/500W/430rpm(rear wheel)
Quiet and Reliable Brushless Motor

Model NO:	JD-EB-24
Voltage(V)	24v
Motor power (BLM dc motor)	200w ,250w 350w,,500w
Wheel size	16",18",20",24",26",700C,28"
Battery	24v/10Ah Lithium battery
Charger	AC100v-240v charger
Use Hour per Charge	4-6 hours
Controller	Intelligent brushless.(500w)
PAS	1:1 intelligent pedal assistant system
Throttle	Twist intelligent speed throttle
Maximum speed	25km/h(EU),32km/h(USA&Canada)
Maximum speed	45km/h with 24v/16Ahli-ion battery(PAS)
Gross weight	12.0kgs
Net weight	10.5kgs
Container load	350pcs/20ft container,750pcs/40ft container
Packing size	75cm x 75cm x 28cm (29.53in x 29.53in x 11.02in)
