Welding Wire Feeder EMK-WF-2000A

Name: Welding Wire Feeder EMK-WF-2000A
Brand: EMKIT
SKU: 141716404
Availability: InStock

Negotiable MOQ: 20 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

EMKIT

Model Number:

EMK-WF-2000A

Golden Island Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name EMKIT

Model Number EMK-WF-2000A

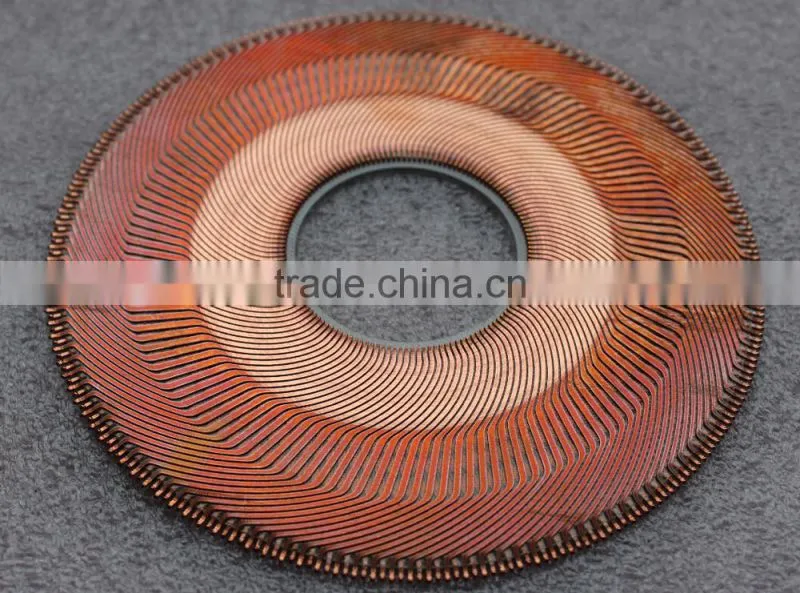

Print motor series

The 2nd generation rotor with higher accuracy is applied to improving technology and prolong service life over 10000hrs; therefore, smooth and steady welding is obtained.

Outstanding motor performance ensures lower noise, lower consumption and longer service life.

3. Smooth welding and steady feeding provides strong power; same efficiency can be obtained even with a single-driven type.

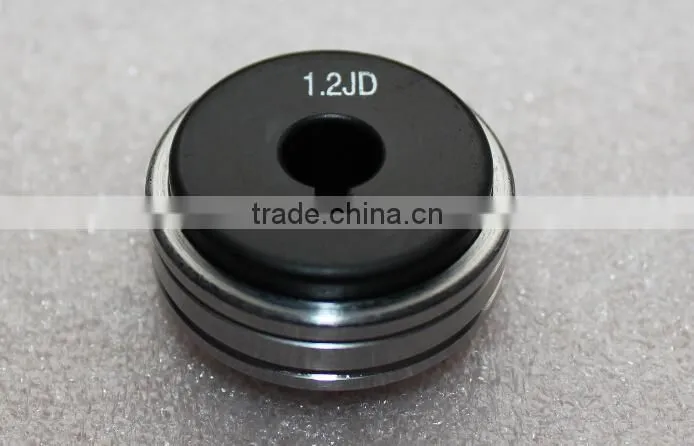

Wire Feeder Roller

Wire Feeder Roller use G8Cr15 Steel with higher hardness and longer service life provides high accuracy and strong feeding power.

Remote-control box

Original Japanese potentiometer is applied to ensure adjusting accuracy and a service life of 100000 times.

Series No.				EMK-WF-2000A
Rated welding current				500A/350A
Applicable welding wire	Wire DIA.			0.8mm,1.0mm,1.2mm,1.6mm
	Material	Carbon steel flux core
Applicable wire reel	Shaft DIA.				50mm
	External DIA.		MAX. 300mm
	Width		MAX. 105mm
	Load capacity		20 kg
Protective gas	Type				CO2,CO2+Ar
	Pressure	MAX. 0.4MPa
Weight	10 kg
Rated feeding speed	1.5~20.1m/min
Duty cycle	60%
Welding interface	Panasonic or European interface
Six core wire access	Terminal board, six core aviation plugs
Overall dimensions	460200280mm
Power requirement	KR500/350,Inverting power 500/350
