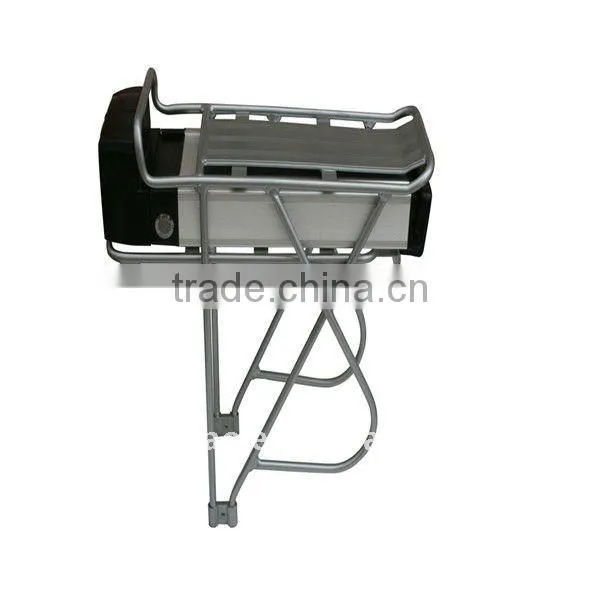

E-bike Battery Pack 36v

Specifications

Battery Pack
1. Be customized for various type.
2. Long cycle life >600
3. Certificates: CE, UL
4. Pack Weight: 4.6kg

Battery Pack

Battery Material : Lithium Manganese Oxide

Nominal Voltage : 36V

Rated Capacity : 10Ah

Pack Dimension : 68*148*385mm

Internal Impedance : ≤100mΩ

Max. Charge Voltage : 42V

Max. Charge Current : 4A

Min. Discharge Voltage : 30V

Rated Discharge Current : 5A

Max. Discharge Current : 15A

Charging Mode : CC/CV

Pack Weight : About 4.6Kg

Over Current Protection : 25A±3A

Cycle Life : 600 Cycles

Charge Temperature : 0-45°c

Discharge Temperature : -20-55°c

Certificates : CE. UL

Range With One Charge : ≥40Km(Motor 250w)



ATTENTION!!!

If you want to buy some samples to test, we advise you to choose the delivery way of Express as it is very fast and safe. We can deal with DHL, EMS, UPS, TNT, FEDEX and so on. And we will choose the cheapest way for you. PLEASE DONOT WORRY.

So when you want to know the cost of the delivery, pls tell us what wheel size and what parts do you need? All of these information will be highly appreciated.
