E-bike Motor Kit (36v 750w)

Name: E-bike Motor Kit (36v 750w)
Brand: EMKIT
SKU: 141716208
Availability: InStock

US$ 100 - 150 MOQ: 2 Sets

Key Specifications

Wattage:

> 500w

Voltage:

36V

Power Supply:

Lithium Battery

Golden Island Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Voltage 36V

Power Supply Lithium Battery

Wheel Size Other, optional

Motor Brushless

Certification Other, SGS

Frame Material Aluminum Alloy

Foldable No

Max Speed 30-50km/h

Range per Power 31 - 60 km

Place of Origin Jiangsu, China

Brand Name EMKIT

Specifications

e-bike conversion kit
A.Long working life (>10,000 hours)
B.Excellent performance
C.High efficiency
D.Reliable

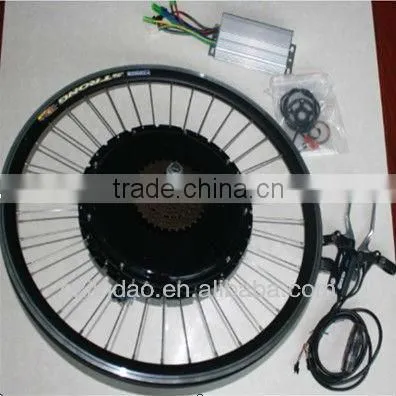

The kit includes motorized wheel,motor controller,speed throttle, power break lever, wire harness
Travel ranges: 38 km/36V12AH or 50km/36V16AH battery pack
Speed: 0-45kpm
Suitable bike frame: 100mm front fork,or 135mm rear fork spacing
Double wall rim special for e-bike
Motor Specifications: 36Vdc/500W/320rpm or 48V/1000W/430rpm
Quiet and Reliable Brushless Motor
Box Dimensions (Front Wheel Kit): 66cm X 66cm X 19cm, Kit Gross Weight: 11Kg
Box Dimensions (Rear Wheel Kit): 66cm X 66cm X 22cm, Kit Gross Weight: 11.5Kg

Model NO:	JD-EB-24	JD-EB-36	JD-EB-48
Voltage(V)	24v	36v	48v
Motor power (BLM dc motor)	200w ,250w 350w,,500w	200w, 250w ,350w 500w, 750w	200w ,250w ,350w, 500w ,1000w
Wheel size	16",18",20",24",26",700C,28"	16",18",20",24",26",700C,28"	16",18",20",24",26",700C,28"
Battery	24v/10Ah Lithium battery
	36v/10Ah Lithium battery
	48v/10Ah Lithium battery
Charger	AC100v-240v 2amples smart charger
Use Hour per Charge	4-6 hours
Controller	Intelligent brushless.(200w,250w,350w,500w,750,1000w)
PAS	1:1 intelligent pedal assistant system
Throttle	Twist intelligent speed throttle
Maximum speed	25km/h(EU),32km/h(USA&Canada)
	45km/h
Gross weight	12.0kgs
Net weight	10.5kgs(with 24v/10Ah battery)
Container load	350pcs/20ft container,750pcs/40ft container
Packing size	75cm x 75cm x 28cm (29.53in x 29.53in x 11.02in)
