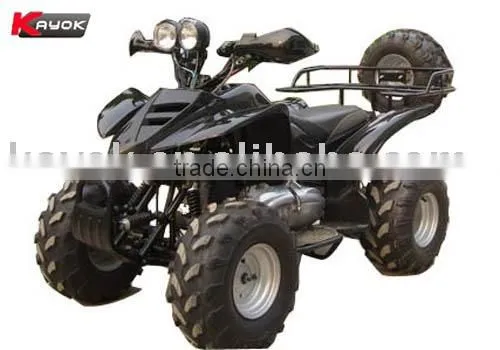

150cc Fully Automatic ATV KM150ST

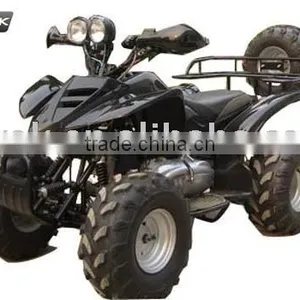

150cc Fully Automatic ATV KM150ST thumbnail-1
150cc Fully Automatic ATV KM150ST photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Fuel:
Gas / Diesel
Displacement:
150cc
Engine Type:
4 Stroke
Contact Supplier Request Quote Chat Now
Chongqing Sayin Imp & Exp Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Fuel Gas / Diesel
Displacement 150cc
Engine Type 4 Stroke
Transmission Type Automatic
Transmission System Chain Drive
Brand Name KAYAK
Place of Origin Chongqing, China
Model Number KM150ST

Specifications

150cc fully automotic ATV(125cc engine optional)
Engine type: 150cc horizontal engine (GY6 engine), 4-stroke

150cc fully automotic ATV(125cc engine optional)

Specifications:
1) Engine:
a) Engine type: 150cc horizontal engine (GY6 engine), 4-stroke, single
cylinder, air cooled, with outside reverse gear
b) Bore and stroke: 57.4 x 57.8mm
c) Ignition: C.D.I
d) Max. power: 5.2kW/7,500rpm
e) Max. torque: 8.5N.m/6,000rpm
2) Drive train:
a) Clutch: fully-automatic
b) Transmission: no gear with reverse
c) Driveline: chain drive
3) Chassis, suspension & brakes:
a) Front suspension: independent suspension, single A-arm, hydraulic
spring shock
b) Rear suspension: swing arm with central mono hydraulic spring shock
c) Front brakes: drum
d) Rear brakes: disc
e) Front tires: 19 x 7-8 (sport type)
f) Rear tires: 18 x 9.5-8 (sport type)
4) Dimensions (L x W x H): 1,730 x 960 x 1,010mm
5) Wheelbase: 1,250mm,
6) Seat height: 760mm
7) Turning radius: 2,650mm
8) Dry weight: 145kg
9) Fuel capacity: 6.6L
10) Battery: 12V/9Ah
11) Colors: red, blue, green, camouflage, yellow, silver, gold, black, white
12) Certification: 2006 EPA

Conveyance:
Qty, 20' FCL: 33units
Qty, 40' FCL: 66units
Qty, 40' HQ: 66units,
