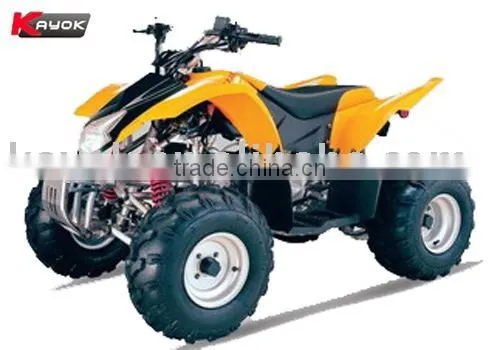

110cc ATV KM110ST-D

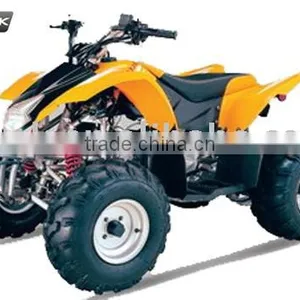

110cc ATV KM110ST-D thumbnail-1
110cc ATV KM110ST-D photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Fuel:
Gas / Diesel
Displacement:
110cc
Engine Type:
4 Stroke
Contact Supplier Request Quote Chat Now
Chongqing Sayin Imp & Exp Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Fuel Gas / Diesel
Displacement 110cc
Engine Type 4 Stroke
Transmission Type Semi-Automatic
Transmission System Chain Drive
Place of Origin Chongqing, China
Model Number KM110ST-D

Specifications

110cc ATV(50cc,90cc, 125cc optional)
Engine type: 107cc, 4-stroke, single cylinder, air cooled

110cc ATV(50cc,90cc, 125cc optional)

Specifications:
1) Engine:
a) Engine type: 107cc, 4-stroke, single cylinder, air cooled, with inside
reverse gear
b) Bore and stroke: 52 x 49mm
c) Ignition: C.D.I
d) Max. power: 6.0kW/8,000rpm
e) Max. torque: 7.0N.m/6,000rpm
2) Drive train:
a) Clutch: semi-automatic
b) Transmission: 3-speed with reverse (R-N-1-2-3)
c) Driveline: chain drive
3) Chassis, suspension & brakes:
a) Front suspension: independent suspension, dual a-arm, hydraulic
spring shock with air bag
b) Rear suspension: swing arm with central mono hydraulic spring shock
with air bag
c) Front brakes: drum (hand control)
d) Rear brakes: disc (hand control)
e) Front tires: 19 x 7-8 (sport type)
f) Rear tires: 18 x 9.5-8 (sport type)
4) Dimensions (L x W x H): 1,620 x 960 x 1,010mm
5) Wheelbase: 1,120mm
6) Seat height: 720mm
7) Turning radius: 2,650mm
8) Dry weight: 132kg
9) Fuel capacity: 6.6L
10) Battery: 12V/9Ah
11) Colors: red, blue, green, camouflage, yellow, silver, gold, black, white
12) Certification: 2006 EPA

Conveyance:
Qty/20' FCL: 33units
Qty/40' FCL: 66units
Qty/40' HQ: 66units,
