Dome satellite tv antenna

Specifications

Radome Height :14mm
Freq.Range :12.2 to 12.75G
Antenna Gain:30dBi(Max)
E.I.R.P: 54dBw

   International satellite tv receiver , mobile small satellite tv antenna ,can rotate 360 degrees .



Detailed Product Description
Radome Height :14mm
Freq.Range :12.2 to 12.75G
Antenna Gain:30dBi(Max)
E.I.R.P: 54dBw
Elevation Rang: 5~90°C
Weight: 3.5Kg
Tracking Rate: 60degree/sec
Temp.Range: -25~70degree
Power: 12V~24VDC
Radome Diameter: 430mm

Maximised Signal Reception!
Compact Design! Minimal Rain Fade!
Best performance dome satellite tv antenna!
Maximised Signal Reception!
Compact Design! Minimal Rain Fade!
Best performance dome satellite tv antenna!
Camping, Camping car, campervan, Caravan, Motor home



1.Statellite TV  Receiver











HOT SELLING:
Specifications

§ IDU Control Box (12V power input)

The IDU is the control box that plugs into the ODU (the Out Door Unit – Dome) and also connects to the set top

box.The IDU distributes the power and date to the ODU via the coaxial connecting cable and receives the satellite

back from the ODU via the same cable. The IDU has the ability to select which satellite the ODU will search for.

The IDU has an LCD screen that provides details of satellites and stages of acquiring the satellite.


§ Auto-Positioning & Auto power saving mode

The PAPSA mobile unit will automatically find the signal for the satellite you have selected. The unit will not take

the power after locked in the signal it will be automatically turn power off the antenna system and only use set

top box power for LNB.


§ GPS auto skew
The PASPA Mobile is unique in that is has a GPS antenna built into the dome and this provides the unit with the
geographical location of the vehicle. The Unit can then select the best LNB skew and elevation angles for the

geographical position, using the Skew Motor attached to the LNB. All of this is Automatic, there is no need for fine

tuning, this is all done by the Skew Motor. Simply select your satellite and press the set button and sit back and

relax.

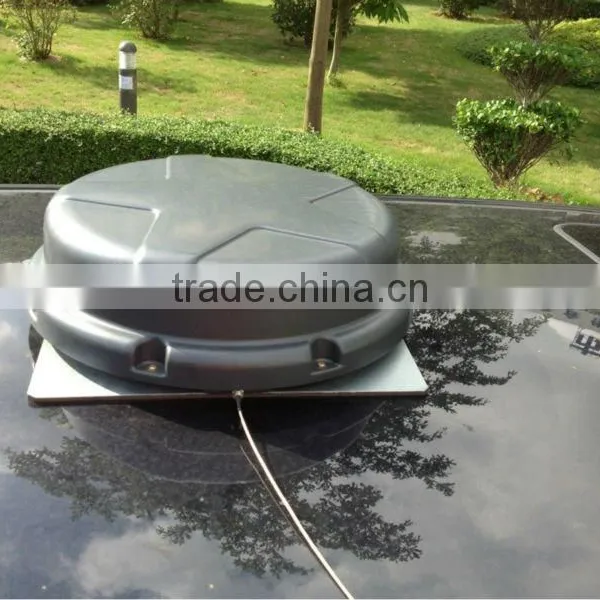

Real Picture :

Installing on the top of the car
