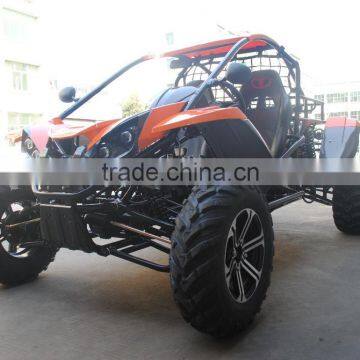

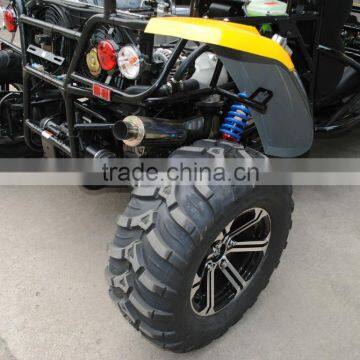

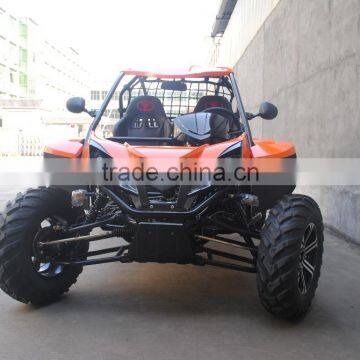

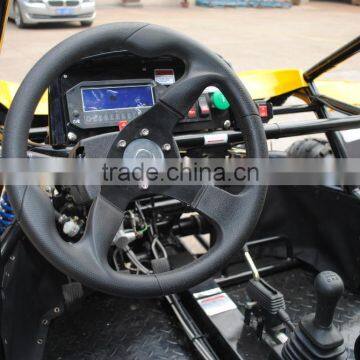

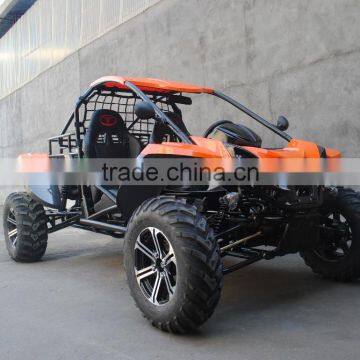

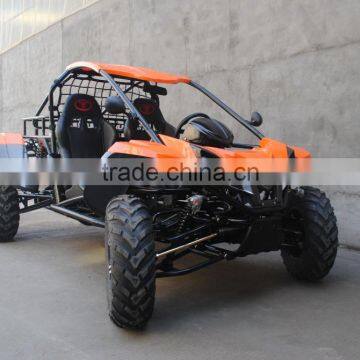

1500cc adults off road sports SBS ATV

Chery Engine 1500cc 4x4 Amazing dune buggy

                          Detailed  Specification

                                     DIMENSIONS

Overall Length--------------------------------------------------------------------------------------------------3140mm

Overall Width -------------------------------------------------------------------------------------------------- 1850mm

Overall Height ------------------------------------------------------------------------------------------------- 1580mm

Wheelbase --------------------------------------------------------------------------------------------------------2450mm

Front Track ------------------------------------------------------------------------------------------------------ 1375mm

Rear Track --------------------------------------------------------------------------------------------------------1570mm

Ground Clearance ------------------------------------------------------------------------------------------------310mm

                                               ENGINE

Type -------------------------------------------------------------------------------4 Cylinder,4-Strokes,water cooled

Bore x Stroke ---------------------------------------------------------------------------------------------77.4×79.52mm

Displacement ------------------------------------------------------------------------------------------------------1497mL

Compression ratio ------------------------------------------------------------------------------------------------10.5:1

Carburetor --------------------------------------------------------------------------------------- Electric Fuel Injection(EFI)

Max Power ------------------------------------------------------------------------------------------------80KW/6000rpm

Maximum Torque ------------------------------------------------------------------------------------140/3000Nm/r/min

Fule consumption----------------------------------------------------------------------------------------------6.2L/100km

Starting ----------------------------------------------------------------------------------------------------------- Electric

Ignition -------------------------------------------------------------------------------------------- Electric Fuel Injection

Lubrication -------------------------------------------------------------------------------------------- Force & Splash

Transmission ------------------------------------------------------------------------ Manual clutch, 5 shift/Reverse

Fuel type ------------------------------------------------------------------------------------------------ RQ93 (unleaded)

Engine oil ----------------------------------------------------------------------------------------------------- SAE-10W/30

Gear oil ----------------------------------------------------------------------------------------------------- GL-4 75W/90

                                             CAPACITIES

Maximum load -----------------------------------------------------------------------------------------------------250kg

Fuel tank --------------------------------------------------------------------------------------------------------------- 30L

Engine oil ---------------------------------------------------------------------------------------------------------------3.8L

Gear oil ------------------------------------------------------------------------------------------------------------------2.3L

Starting ----------------------------------------------------------------------------------------------------------------≤15s

Climbing -------------------------------------------------------------------------------------------------------------- ≥25°

Battery ------------------------------------------------------------------------------------------------------------ 12V36Ah

Head Light -------------------------------------------------------------------------------------------------- 12V 35W/ 5W

Redirector Light -------------------------------------------------------------------------------------------------- 12V 5W

Tail Light -----------------------------------------------------------------------------------------------------12V 21W/ 5W

Horn---------------------------------------------------------------------------------------------------------------------12V3A

Fuse ------------------------------------------------------------------------------------------------------------------------30A

                                               SPECIFICATIONS

Brake Track ----------------------------------------------------------------------------------------------- < 7m @40 km/h

Top speed ------------------------------------------------------------------ 115km/h (or limited as customers require)

                                                 CHASSIS

Front, Rear brake ----------------------------------------------------------------- Hydraulic disc, right foot control

Front tire -------------------------------------------------------------------------------------------------------- 205/70 R15

Rear tire --------------------------------------------------------------------------------------------------------- 205/70 R15

Front Suspension --------------------------------------------------------------------------- Independent Dual A-Arm

Rear Suspension ---------------------------------------------------------------------------- Independent Suspension

Final Drive --------------------------------------------------------------------------------------------------- shaft driven

                                        TIRE PRESSURE

Front ----------------------------------------------------------------------------------------------- 280kpa2.5kg/41psi

Rear ------------------------------------------------------------------------------------------------ 280kpa2.5kg/ 41psi

                                                   WEIGHT

Net Weight ----------------------------------------------------------------------------------------------------------------689kg

G.W -------------------------------------------------------------------------------------------------------------------------780kg

Container quantity---------------------------------------------------------------------------20GP:4Units. 40HQ:12Units

Carton dimiensions---------------------------------------------------------------------------2930 mm×1770mm×850mm

1.Renli 4x4 dune buggies/sand go kart must adapt all terrains such as mountain,shallow lake,grassland ,snowfield,mine ,marsh ,sand ,beach,lawn etc!
2.Most selectable colors :free ( lucky red, bright orange, beautiful black, shiny yellow, apple green, skyey blue, pure white, shining silver, lovely pink), extra money (forest camouflage, army green, follow one's inclinations combination)!
3.nice design,reasonable price,excellent quality,reliable engine,better service,your money paid must be worthy!
4.Excellent durable engine –Chery/QQ&CFMOTO/ChunFeng!less money spent,more profits got,own automobiles' enjoyable right now!
5.Relieve pressure, get close to nature ,enjoy beauty life!great way for fun!
6.Can most conventional autos used for hunting and climbing?We renlians made it! All buggies performance will beyond your imagination,push the envelope!just do it!
7.Maximum customized designs can be accepted!that cool & fantastic and eyecatching originalities all changed by you!
8.Renli is growing with your support!all OEM service and rebrand are okay!
9.strongest steel bars fixed inside package & durable carton covered outside to protect your buggies better!
10.Any comments are highly welcomed! Any interested heartbeat?Hurry up!call me!contact us! anytime!anywhere,anyone!!(Mr.Michael /Ms.Aries/Mr.Stone/Ms;Shu.etc)

Renli 1500cc amazing Auto power,Crazy Monster Chery 1.5L Engine,80KW,109HP,4x4,4WD,EFI,extraordinary speed—140-150km/h,93#Gasoline/Petrol/gas fueled,wonderful appearance,perfect design,innovative ideas,fantastic performance,top quality,reasonable price,better after service!driving our karts,enjoying your life!

2013 Latest model RL 1500CC 4X4 successfully created by Renli Vehicle!This excellent kart own fashional design,high performance,top quality, revolutionary change,an utility and multipurpose kart/buggy once tried,never forget!hi,my dear guys,hurry up!try and enjoy the great fun/racing/hunting/hiking/dune 1500cc kart/buggy!

A off road kart can match the Toyota autos at the speed of 150km/h!our dune buggy/go kart can jump from 2 meters high slope without effort!renli quality speak highly of our customers all along.we can follow clients to change sth,design,color,bumper,winch,cargo box```

we most attention to quality,wonderful /excellent appearance ,best quality and competitive price, high performance/price ratio!

Go.karting/carting/gokart/buggy/buggies/quad/dune/fun/racing/race/Racer/kart/fishing/hunting/camping/4x4/rental/EEC/COC/EPA/California.approved/Certification/shaft/chain driven/street/road legal/illegal/pedal
