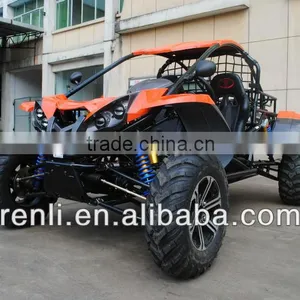

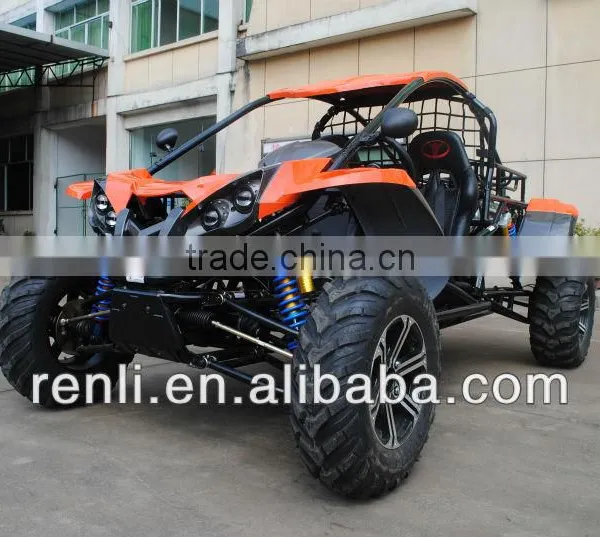

RENLI AMAZING 1500CC 4X4 110HP DUNE BUGGY GO KART

Specifications

cheap 4x4 go karts
1500cc, water cooled, 4-stroke CF engine
single-cylinder, 4x4 EFI is optional
Top speed: 130KM/H

cheap 4x4 go karts

Go.karting/carting/gokart/buggy/buggies/

quad/dune/fun/racing/race/Racer/kart/fishing/hunting/

camping/4x4/rental/EEC/COC/EPA/California.approved/Certification/

shaft/chain driven/street/road legal/illegal/pedal



ATV/Quad.buggy/Dirt.Bike/Pocket.Bike/Dune.Buggy

/Go.Kart/Atv/Bicycle/Tricycle/Scooter/Electric Bike/All Terrain Vehicle

/truck/wheel barrow/toy karts/sand buggies/kids mini children/rental/

racing/fishing/camping/hunting kart/Snowmobile

Go.karting/carting/go-kart/buggy/buggies/quad/dune/fun/racing/race

/Racer/kart/fishing/hunting/camping/4x4/rental/EEC/COC/EPA/California.approved/Certification

/shaft/chain driven/street/road legal/illegal/pedal



Specification



DIMENSIONS

Overall Length--------------------------------------------------------------------------------------------------3140mm

Overall Width -------------------------------------------------------------------------------------------------- 1850mm

Overall Height ------------------------------------------------------------------------------------------------- 1580mm

Wheelbase --------------------------------------------------------------------------------------------------------2450mm

Front Track ------------------------------------------------------------------------------------------------------ 1375mm

Rear Track --------------------------------------------------------------------------------------------------------1570mm

Ground Clearance ------------------------------------------------------------------------------------------------310mm



ENGINE

Type -------------------------------------------------------------------------------4 Cylinder,4-Strokes,water cooled

Bore x Stroke ---------------------------------------------------------------------------------------------77.4×79.52mm

Displacement ------------------------------------------------------------------------------------------------------1497mL

Compression ratio ------------------------------------------------------------------------------------------------10.5:1

Carburetor --------------------------------------------------------------------------------------- Electric Fuel Injection

Max Power ------------------------------------------------------------------------------------------------80KW/6000rpm

Maximum Torque ------------------------------------------------------------------------------------140/3000Nm/r/min

Fule consumption----------------------------------------------------------------------------------------------6.2L/100km

Starting ----------------------------------------------------------------------------------------------------------- Electric

Ignition -------------------------------------------------------------------------------------------- Electric Fuel Injection

Lubrication -------------------------------------------------------------------------------------------- Force & Splash

Transmission ------------------------------------------------------------------------ Manual clutch, 5 shift/Reverse

Fuel type ------------------------------------------------------------------------------------------------ RQ93 (unleaded)

Engine oil ----------------------------------------------------------------------------------------------------- SAE-10W/30

Gear oil ----------------------------------------------------------------------------------------------------- GL-4 75W/90





CAPACITIES

Maximum load -----------------------------------------------------------------------------------------------------250kg

Fuel tank --------------------------------------------------------------------------------------------------------------- 30L

Engine oil ---------------------------------------------------------------------------------------------------------------3.8L

Gear oil ------------------------------------------------------------------------------------------------------------------2.3L

Starting ----------------------------------------------------------------------------------------------------------------≤15s

Climbing -------------------------------------------------------------------------------------------------------------- ≥25°

Battery ------------------------------------------------------------------------------------------------------------ 12V36Ah

Head Light -------------------------------------------------------------------------------------------------- 12V 35W/ 5W

Redirector Light -------------------------------------------------------------------------------------------------- 12V 5W

Tail Light -----------------------------------------------------------------------------------------------------12V 21W/ 5W

Horn---------------------------------------------------------------------------------------------------------------------12V3A

Fuse ------------------------------------------------------------------------------------------------------------------------30A



SPECIFICATIONS

Brake Track ----------------------------------------------------------------------------------------------- < 7m @40 km/h

Top speed ------------------------------------------------------------------ 115km/h (or limited as customers require)



CHASSIS

Front, Rear brake ----------------------------------------------------------------- Hydraulic disc, right foot control

Front tire -------------------------------------------------------------------------------------------------------- 205/70 R15

Rear tire --------------------------------------------------------------------------------------------------------- 205/70 R15

Front Suspension --------------------------------------------------------------------------- Independent Dual A-Arm

Rear Suspension ---------------------------------------------------------------------------- Independent Suspension

Final Drive --------------------------------------------------------------------------------------------------- shaft driven



TIRE PRESSURE

Front ----------------------------------------------------------------------------------------------- 280kpa2.5kg/c m41psi

Rear ------------------------------------------------------------------------------------------------ 280kpa2.5kg/cm 41psi



WEIGHT

Net Weight ----------------------------------------------------------------------------------------------------------------689kg

G.W -------------------------------------------------------------------------------------------------------------------------780kg

Container quantity---------------------------------------------------------------------------20GP:4Units. 40HQ:12Units

Carton dimiensions---------------------------------------------------------------------------2930 mm×1770mm×850mm
