XBH 8X8-2C Diesel-engine Vehicle Water and Land Vehicle Go-anywhere Vehicle Fire Fighting Truck All-Terrain ATV

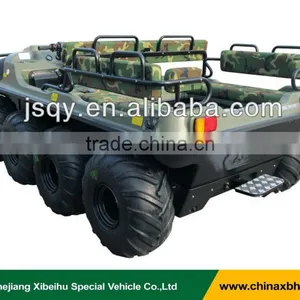

XBH 8X8-2C Diesel-engine Vehicle Water and Land Vehicle Go-anywhere Vehicle Fire Fighting Truck All-Terrain ATV photo-1

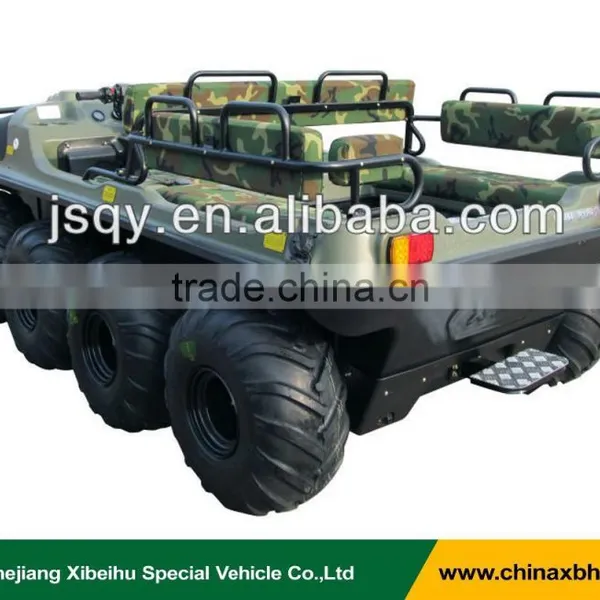

XBH 8X8-2C Diesel-engine Vehicle Water and Land Vehicle Go-anywhere Vehicle Fire Fighting Truck All-Terrain ATV photo-2

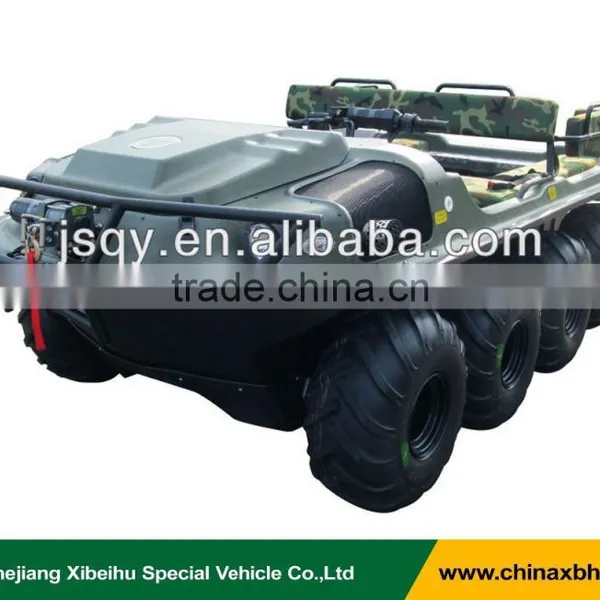

XBH 8X8-2C Diesel-engine Vehicle Water and Land Vehicle Go-anywhere Vehicle Fire Fighting Truck All-Terrain ATV photo-3
XBH 8X8-2C Diesel-engine Vehicle Water and Land Vehicle Go-anywhere Vehicle Fire Fighting Truck All-Terrain ATV photo-4
US$ 10,000 - 15,000 MOQ: 3 Pieces
Key Specifications
Get Latest Price
Brand Name:
XBH
Model Number:
XBH 8X8 > 8X8-2C
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
NIngbo
Delivery Detail:
Delivery time depends on order quantity.
Brand Name XBH
Model Number XBH 8X8 > 8X8-2C
Place of Origin Zhejiang, China

XBH 8X8-2C Diesel-engine Vehicle water and land vehicle go-anywhere vehicle fire fighting truck All-Terrain ATV

Product Description



XBH 8X8-2C Diesel-engine Vehicle

Body Parameters:

Dimension: 3160×1720×1150mm
Wheel Base: 670×670×670mm
Track: 1420mm
Minimum Ground Clearance: 180mm
Complete Vehicle Kerb Mass: 750kg
Rated Load: On Land:500kg(6 People)On Water:300kg(4 People)

Performance Parameters:

Start Mode: Key
Ignition Mode: EFI
Battery Specification: 12V/60Ah
Drive Mode: On Land: All-wheel Drive
On Water: All-wheel Drive or Outboard Drive
Top Speed: On Land:45km/h
On Water: 5km/h(Tyre Stroke)or 12km/h(15 hp Outboard)
Minimum Turning Radius: 0.71m
Maximum Climbing Angle: 32 º
Approach Angle: 54 º
Departure Angle: 57 º
Brake Mode: Caliper Hydraulic Brake
Tyre Specification: 25×12(11.5)-9NHS
Tyre Pressure: 5-7psi (34.5-48.3kPa) With track: 3-5psi(20.7-34.5kPa)
Transmission Mode: Belt and Chain Transmission

Dynamic Parameters:

Engine Model:3M78
Engine Type:Inline, Water-cooled, Four-stroke, Tunnel-type
Air Intake:Normally Aspirated
Combustion Chambe:Swirl
Cylinder Diameter ×Stroke:3-78×78.4mm
Cylinder Jacket:Dried
Displacement:1123ml
Compression Ratio:22:1
Normal power and Revolution:8~18 kW (1800~3600 r/min)
Max. Torque and Revolution:60 N•m (1800~2200 r/min)
Idle Speed:900±50r/min
Lubricating Mode:Pressure and Splash Lubrication
Cooling Mode:Coolant
Clutch System / Transmission Type:CVT / CVT+2 Forward Gears, Neutral, Reverse Gear
Fuel Type / Oil Tank Capacity:Diesel 0# / 38L

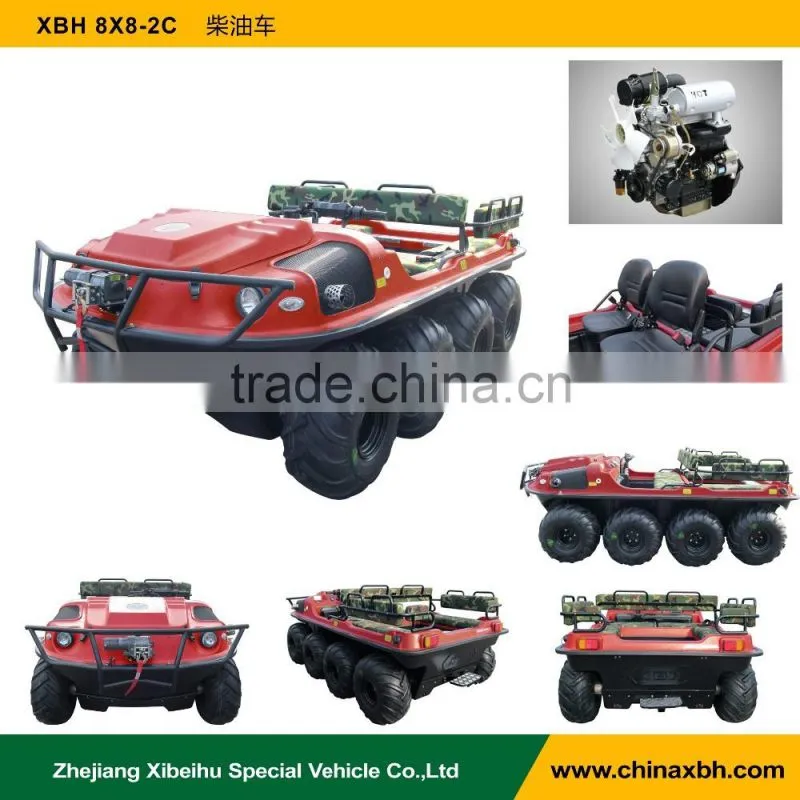

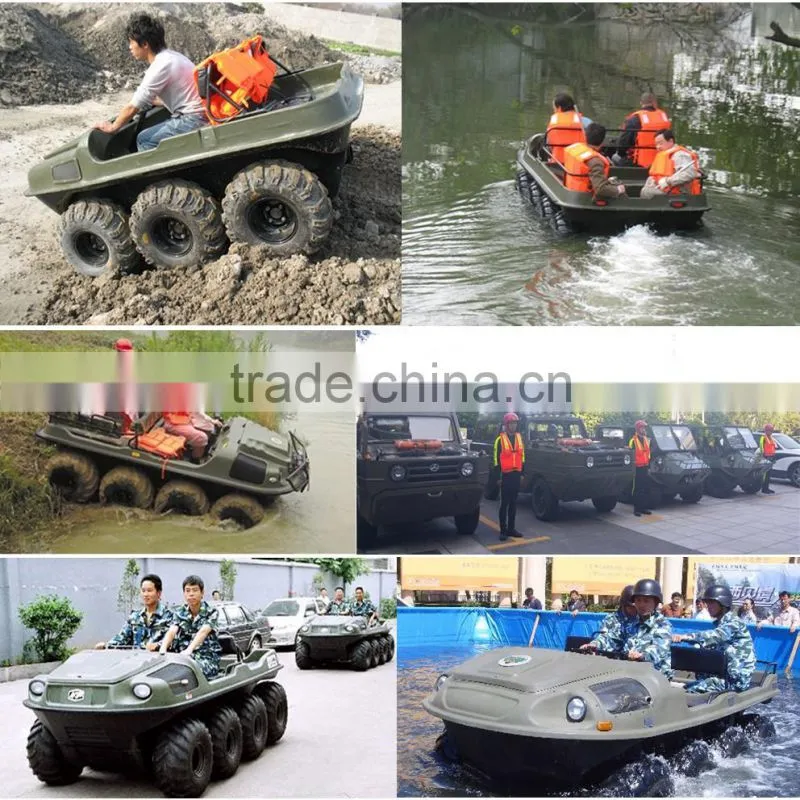

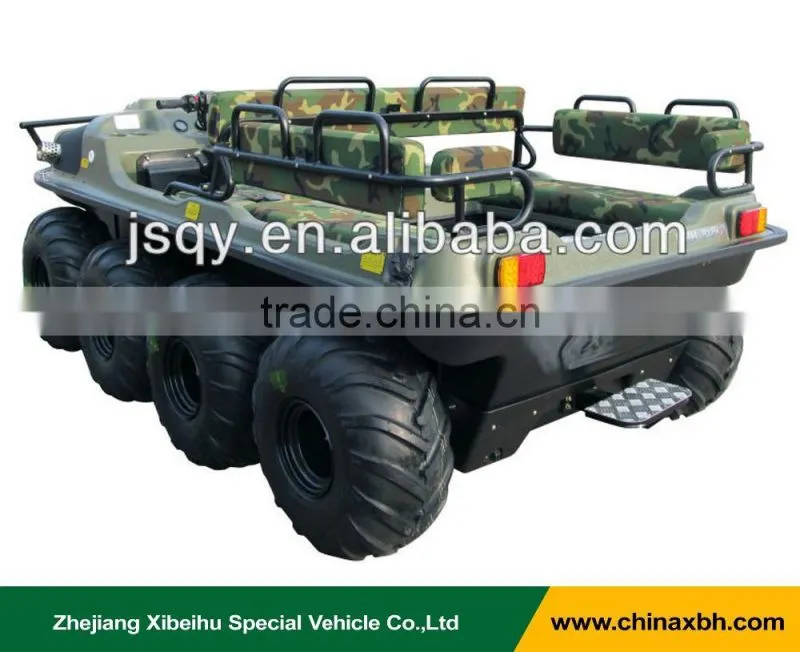

Product Pictures

 XBH 8X8-2C Diesel-engine Vehicle water and land vehicle go-anywhere vehicle fire fighting truck All-Terrain ATVXBH 8X8-2C Diesel-engine Vehicle water and land vehicle go-anywhere vehicle fire fighting truck All-Terrain ATVXBH 8X8-2C Diesel-engine Vehicle water and land vehicle go-anywhere vehicle fire fighting truck All-Terrain ATV

Company Information



Company Information

XBH 8X8-2C Diesel-engine Vehicle water and land vehicle go-anywhere vehicle fire fighting truck All-Terrain ATVXBH 8X8-2C Diesel-engine Vehicle water and land vehicle go-anywhere vehicle fire fighting truck All-Terrain ATV



XBH 8X8-2C Diesel-engine Vehicle water and land vehicle go-anywhere vehicle fire fighting truck All-Terrain ATV

In 2005, Yiwu Xi Beihu Special Vehicle Co., Ltd., which is specially engaged in the development, production and sales of amphibious special vehicles, is a high-tech enterprise invested by Jia's Industrial Co., Ltd. with a total investment of 200 million yuan. The company has a dozens of senior technical staff of the product development team and the international advanced production equipment, and through the Chinese People's Liberation Army Armored Engineering Institute of cooperation to ensure that the company's research and development capabilities and technical level.

After years of research, the company has successfully developed a new generation of complete intellectual property rights of all terrain vehicle --- "Xi Beihu" amphibious special vehicles. The successful development of the car, to fill the domestic amphibious all terrain operation vehicle blank, breaking the domestic automobile industry single use limit.

The performance test and practical application show that "Xi Beihu" in the water, hills, swamps, snow, forests and other bad terrain in the free travel, and can be ± 40 ℃ in the ultra-conventional temperature environment for continuous Operations, the key technical indicators to achieve and exceed the international advanced level.







XBH 8X8-2C Diesel-engine Vehicle water and land vehicle go-anywhere vehicle fire fighting truck All-Terrain ATV





XBH 8X8-2C Diesel-engine Vehicle water and land vehicle go-anywhere vehicle fire fighting truck All-Terrain ATV







XBH 8X8-2C Diesel-engine Vehicle water and land vehicle go-anywhere vehicle fire fighting truck All-Terrain ATV



FAQ



1.Q:Are your company a manufacturer or trading company?

A:We are a manufacturer with 13 years .And 10years of exporting experience



2.Q:Where is your factory? How can I get there?

A:Our factory is located in Yiwu City, Zhejiang Province.Which closed to Yiwu Airport.We are highly welcome your visit of our factory.And we can pick you up from the Yiwu airport.



3.Q:Can your products be customized?

 A: Almost all of our products can be customized, including the sizes, color, logo, package and so on. OEM is acceptable.





What's your Product MOQ?

 A:For whole set car 3units/1X20GP container,MOQ 3units.



4. Q: What is the advantages of your products?

A: High quality and copetitive priceXibeihu Pay attention to production quality control from the beginning to the end . Each product will be fully assembled and carefully tested before it's packed for shipment.



5. Q: What makes your company a reliable supplier?

A: Many years of experience in manufacturing and exporting.Strict quality control, the QC strictly carries on a precise process to ensure the best quality. We have the most professional overseas sales and customer service team. In a word, we offer you not only the products, but also the professional service.

 XBH 8X8-2C Diesel-engine Vehicle water and land vehicle go-anywhere vehicle fire fighting truck All-Terrain ATV



XBH 8X8-2C Diesel-engine Vehicle water and land vehicle go-anywhere vehicle fire fighting truck All-Terrain ATVXBH 8X8-2C Diesel-engine Vehicle water and land vehicle go-anywhere vehicle fire fighting truck All-Terrain ATV
