Home > Electrical & Electronics > Switch > Rocker Switch > Car/Boat/Nautical/marine/yacht/offshore/marine LED Rocker Switch

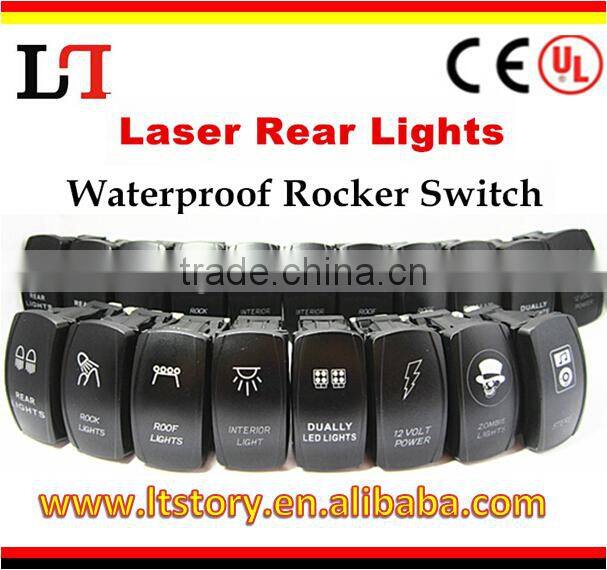

Car/Boat/Nautical/marine/yacht/offshore/marine LED Rocker Switch
US$ 0.5 - 4
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
LT
Model Number:
LTC-141127-08
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Waterproof Led DPDT/SPST/ DPST/ STDP ROCKER SWITCHUS$ 0.5 - 4MOQ: 100 Pieces -
Marine Waterproof Led DPDT/SPST/ DPST/ STDP ROCKER SWITCHUS$ 0.5 - 4MOQ: 100 Pieces
-
Laser Etched Rocker SwitchUS$ 2.5 - 3.8MOQ: 50 Pieces
-
Blue Illuminated Rocker SwitchUS$ 2.5 - 3.8MOQ: 50 Pieces
-
Blue Illuminated 12v Rocker SwitchUS$ 2.5 - 3.8MOQ: 50 Pieces
Place of Origin
Guangdong, China
Brand Name
LT
Model Number
LTC-141127-08
Max. Current
20A
Max. Voltage
250V
Mechanical Life
100000times
Specifications
12/24V rocker switches with two colors LED lights!Anti-corrosion ABS plastic panel
2 colors of LED lights
Red&Blue Lights
Car/Boat/Nautical/marine/yacht/offshore/marine LED Rocker Switch
- SPECIFICATION
RATING: | 2. 10A 125V ;6A 250V |
MECHANICAL LIFE: | >50000 CYCLES |
ELECTRICAL LIFE | >10000 CYCLES |
CONTACT RESISTANCE | < 50MΩ |
INSULATION RESISTANCE | >1000MΩ |
WITHSTAND VOLTAGE | >1500V/MINUTE |
AMBIENT TEMPERATURE | -10°C~+85°C |
STORAGE TEMPERATURE | -25°C~+85°C |
These high quality 12 volt Rocker switch is a single throw ON - OFF switch designed to operate your 12 volt accessories. They have a face surface size of 2'' (50mm) x 1'' (25mm) and uses a standard din size mounting hole of 1.41'' (36mm) x .86'' (22mm) this is the standard size of most switch holes in modern vehicles, however it is best to check your particular hole size if unsure.
- Single Pole Single Throw ON-OFF switch.
- 12VDC 20Amps, 24VDC 10Amps 125VAC 16Amps, 250V DA10Amps.
- Black hard surface rocker.
- Two LEDs in the switch.
- Upper LED is ON only when the switch is turned ON.
- Lower LED is independent.
- Both LEDs have separate grounds.
- Same size as the Carling and ARB switches.
- Rated 16A 12V.

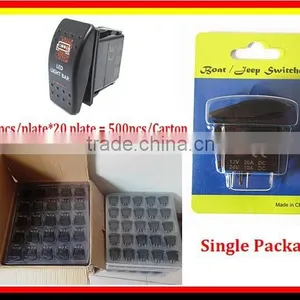

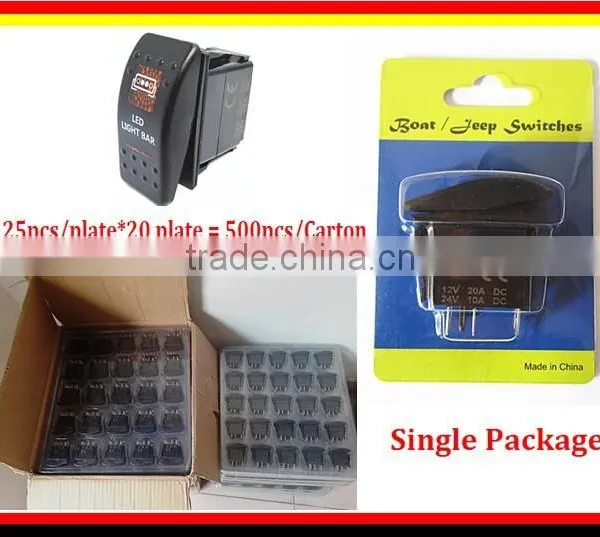

- No rear barriers between terminals.Photos on the samples for your reference:
