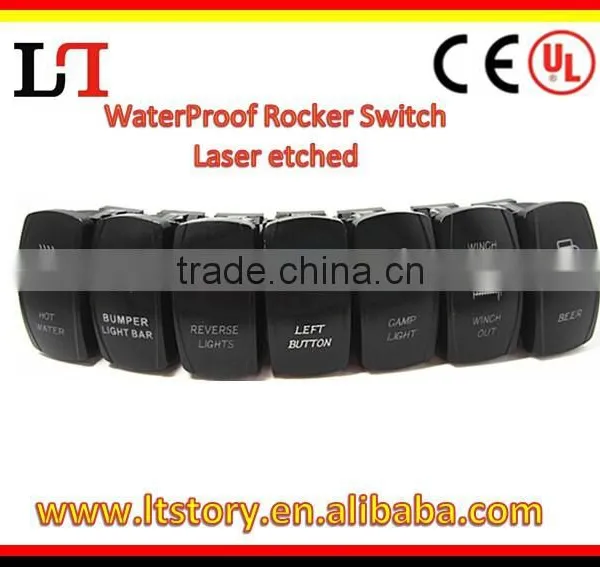

Waterproof Rocker Switch Laser Etched 12V 24V DC

Specifications

waterproof rocker switch laser etched 12V 24V DC

1, Description:

Rating:  AC 125V 16 A   250V 10A

         DC 12V 20A   24V10A

Contact resistance:  50mΩ Max.

Insulation resistance:  DC 500V 100mΩ Min

Dielectric Strength:  AC 1500V   1 minute

Operating Temperatures:  -25℃~+80℃

Electrical Life:  10,000 make and break cycles at full load

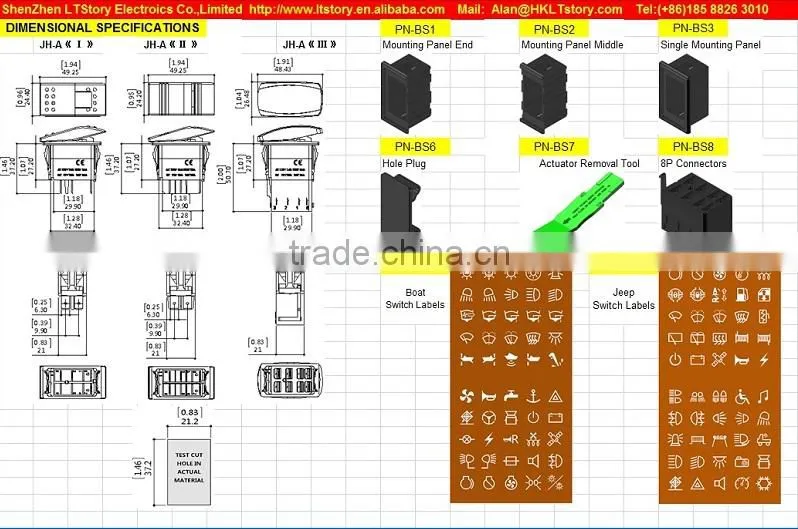

Black hard surface rocker. Surface Size : 2" (50mm) x 1"(25mm).

Standard size mounting hole: 1.41"(36mm) x .86"(22mm). This is the standard size of most switch holes in modern vehicles. Lower LED is independent and can be wired to separate dash light circuit. Both LEDs have separate grounds. No rear barriers between terminals..

2, Advantages

1) Rocker Switches are widely used in carautomobilemotorcyclemarine system etc.
2) Professional design & QC team ensure quick OEM order
3) Professional team, standard processes, standard production, quality products.

4) Safety, on-time delivery, credit suppliers.

5) Customized designs are acceptable, small order are accepted

3,Rocker switch Quality:

We will inspect supplied material, production process and final product, we completely make quality control for every pass with inspections including withstand voltage, insulating resistance, conductor, dimension, external appearance, etc. Meanwhile random sampling is taken for inspections such as products' exotherm, environmental protection and electrical life. All related raw materials are inspected according to ROHS detective.

4, Further Photos, similar products, relative products
