Specifications
12/24V rocker switches with two colors LED lights!Anti-corrosion ABS plastic panel
2 colors of LED lights
Red&Blue Lights

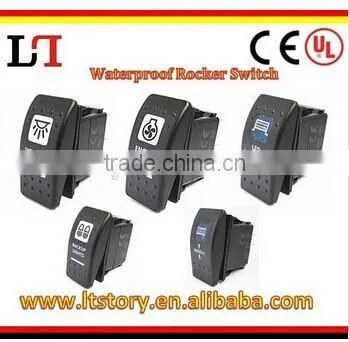

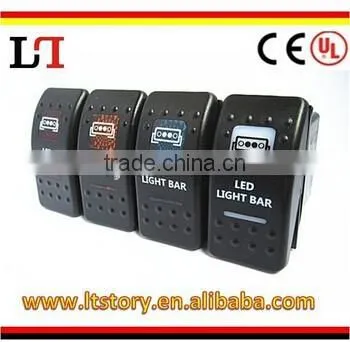

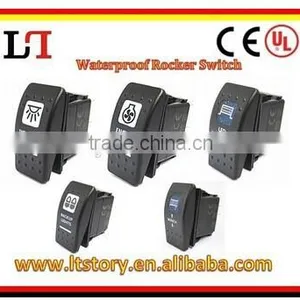

Waterproof on-off-on rocker switch illuminated
1.Abs plastic panel
2.waterproof rocker switch
3.500000 Mechanical Life
4. Process can be screen printing and laser carving
5. It has a face surface size of 0.90'' x 1.92'' and uses a standard din size mounting hole. Cutout Dimensions are 0.83'' x 1.45''.
Specifications
DC 12V/20A 24V/10A Sealed rocker switch IP68,
Anti-corrosion ABS plastic panel

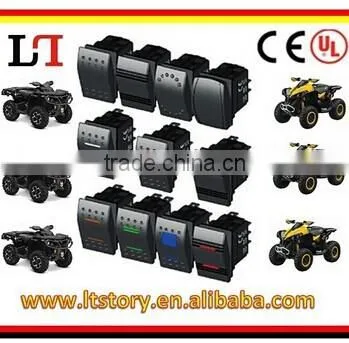

Sealed rocker switch suited for marine,off-road
Waterproof on-off-on rocker switch illuminated
Max. Current: 20A DC / 16A AC
Max. Voltage: 24V DC / 250V AC
Avaliable power: 20A/12V 10A/24V DC And 16A/125V 10A/250V AC(There is no lights)
Dielectric intensity 1500V AC/5S
Insulation resistance: 100MΩ MIN
Contact resistance: 50MΩ MAX
Switch electrical functions : ON-OFF (ON)-OFF ON-ON (ON)-ON ON-OFF-ON (ON)-OFF-ON (ON)-OFF-(ON) ON-ON-ON ON-ON-OFF , (NO): MOM ON , Automatic reset ON.
Waterproof - IP68 .Material:ABS plastic panel .Waterproof and Anti-corrosion .
Carling Style ,Installation dimensions is : 21.2*37.2mm (the same as Carling style).
Approvals: CE,SGS
Production Specification
1.100% test before shipment
2.more than 10000cycles life
3.High current rating to 20 amps
4.New style with rounded corners
5.Lighted and non-lighted
6.Maintain-action and momentary
