Laser etched rocker switch AC125V 16A 250V 10A DC12V 20A 24V 10A

Specifications

12/24V rocker switches with two colors LED lights!
Anti-corrosion ABS plastic panel
2 colors of LED lights
Red&Blue Lights

Laser etched rocker switch AC125V 16A 250V 10A DC12V 20A 24V 10A



1.Abs plastic panel

2.waterproof rocker switch
3.500000 Mechanical Life
4. Process can be screen printing and laser carving

5. It has a face surface size of 0.90'' x 1.92'' and uses a standard din size mounting hole. Cutout Dimensions are 0.83'' x 1.45''.



 These high quality 12 volt Rocker switch is a single throw ON - OFF switch designed to operate your 12 volt accessories. They have a face surface size of 2'' (50mm) x 1'' (25mm) and uses a standard din size mounting hole of 1.41'' (36mm) x .86'' (22mm) this is the standard size of most switch holes in modern vehicles, however it is best to check your particular hole size if unsure.



• Single Pole Single Throw ON-OFF switch.
• 12VDC 20Amps, 24VDC 10Amps 125VAC 16Amps, 250V DA10Amps.
• Black hard surface rocker.
• Two LEDs in the switch.
• Upper LED is ON only when the switch is turned ON.
• Lower LED is independent.
• Both LEDs have separate grounds.
• Same size as the Carling and ARB switches.
• Rated 16A 12V.
• No rear barriers between terminals.

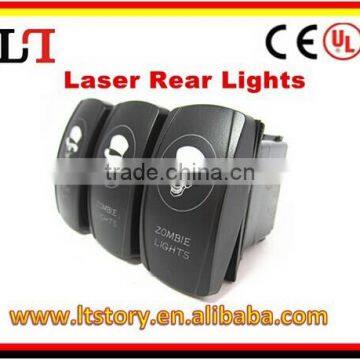

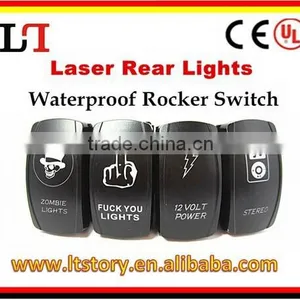

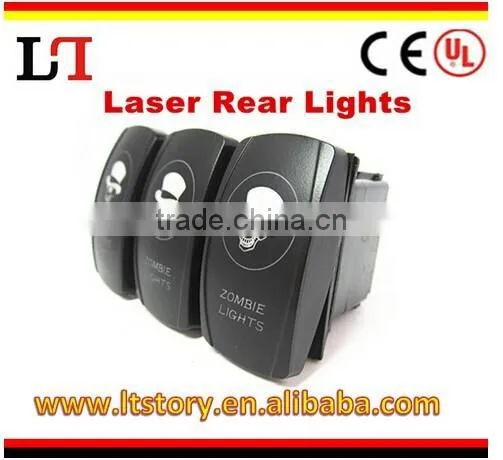

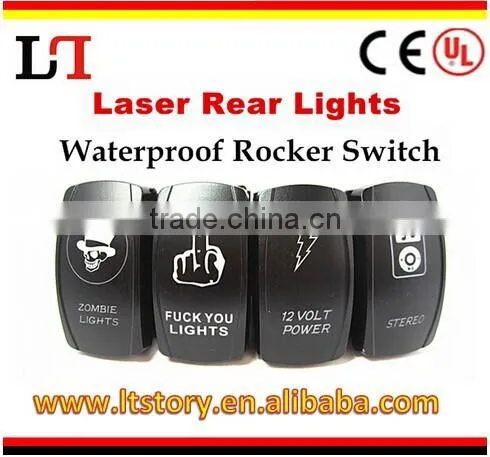

  Photos on the samples for your reference:

•
