LED Rocker Switches

Specifications

LED Rocker switches

1.Abs plastic panel

2.waterproof rocker switch
3.500000 Mechanical Life
4. Process can be screen printing and laser carving

5. It has a face surface size of 0.90'' x 1.92'' and uses a standard din size mounting hole. Cutout Dimensions are 0.83'' x 1.45''.

 These high quality 12 volt Rocker switch is a single throw ON - OFF switch designed to operate your 12 volt accessories. They have a face surface size of 2'' (50mm) x 1'' (25mm) and uses a standard din size mounting hole of 1.41'' (36mm) x .86'' (22mm) this is the standard size of most switch holes in modern vehicles, however it is best to check your particular hole size if unsure.

• Single Pole Single Throw ON-OFF switch.
• 12VDC 20Amps, 24VDC 10Amps 125VAC 16Amps, 250V DA10Amps.
• Black hard surface rocker.
• Two LEDs in the switch.
• Upper LED is ON only when the switch is turned ON.
• Lower LED is independent.
• Both LEDs have separate grounds.
• Same size as the Carling and ARB switches.
• Rated 16A 12V.
• No rear barriers between terminals.

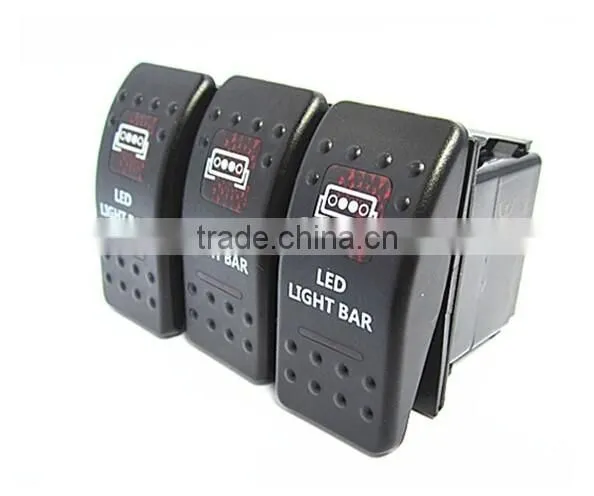

  Photos on the samples for your reference:
