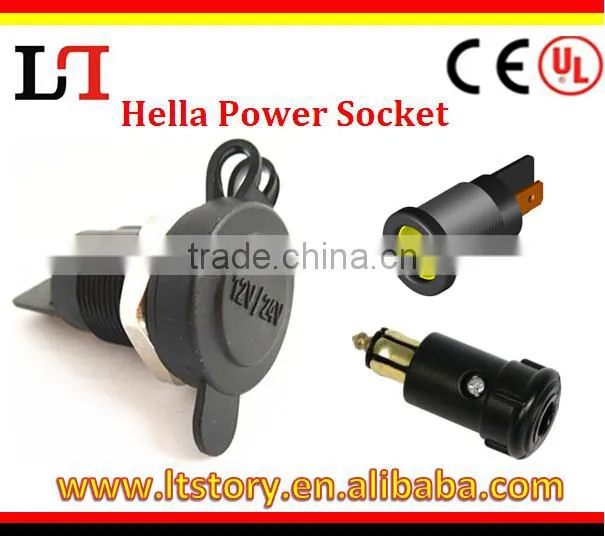

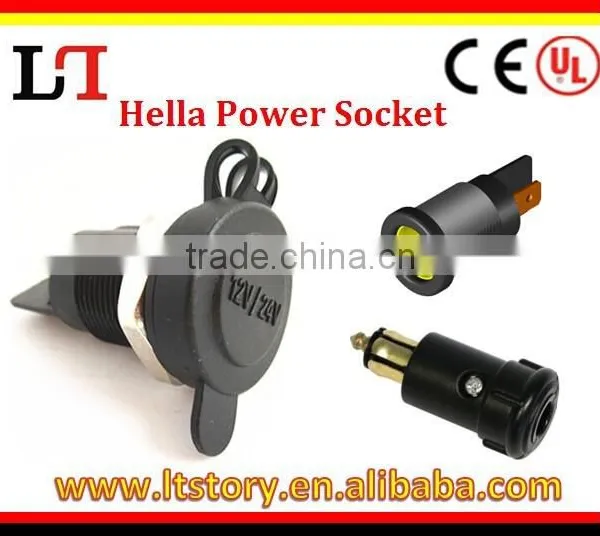

12/24 VOLT 20A HELLA TYPE POWER SOCKET

Specifications

Amperage rating 20A at 12V, 10A at 24V
Poly carbonate material
Includes flip weatherproof cover
Suitable for merit style plug

12/24 VOLT 20A HELLA TYPE POWER SOCKET



1.Can be used for quick installation of 12v DC or 24v DC to any equipment 20 Amp Rating 12 Volts , 10 Amp 24 Volts .
2.Allows the connection of two core cable.
3.Camping & caravaning ,Fit for  AutoJeepATVMotorcycleMarine .
4. Brass connections and Weatherproof Design.



Hole diameter required 18mm ,Length from surface to connection 32mm with cover on loaded cover (Removable cover) .
Earth connection is through main body with terminal lug provided Ideal to plug in that accessory that has a Merit ( Hella) type plug on it.

This unit is of BRASS construction, Flush mount with a sprung loaded thermoplastic outlet cover ( which is removable ) allowing internal or external mounting .
