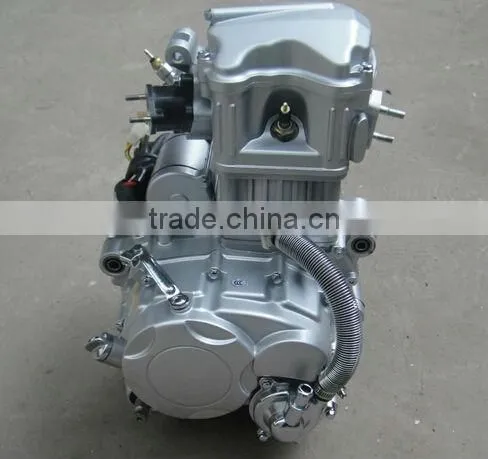

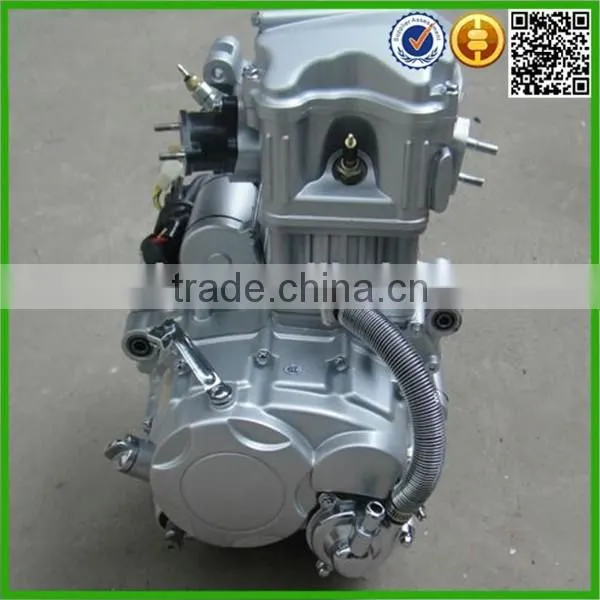

motorcycle engine automatic (E-03)
Cylinder diameter of 56.5 mm
Piston stroke is 49.5 mm
Cylinder working volume 124 ml
Compression ratio of 9:1
Nominal power and its corresponding speed 7.5 KW / 8000 + 500 r/min
Maximum torque and rotational speed 8.8 N.m / 7000 + 500 r/min
The minimum specific fuel consumption of 367 g/(KW) h)
The lowest no-load steady speed 1400 + 100 r/min
Ignition way C.D.I
Pressure splash lubrication way
Distribution way overhead valve, CAM type
Manual clutch control way
Transmission type five speed, constant mesh gear type
Gear changed way foot treadle variable step by step
The transmission ratio
Primary ratio (73.18 4.055) a ratio of 2.769 (36/13)
Three gear ratio 1.400 second gear ratio of 1.822 (32/17) (28/20)
Four gear ratio of 1.130 (26/23) five gear ratio of 0.960 (24/25)
Sprocket output power output way
Mechanical speed output way
Starting way pedal, the electric starter
PZ26 carburetor type (type)
Magneto type external trigger type
Models D8RTC spark plugs
Air filter type foam filter type
Dimension (L * B * H) 365 mm * 310 mm * 310 mm
Quality of net 30 kg or less (put lubricating oil)
