Gas / Diesel Fuel and 4 Stroke Type 400cc Atv(YH400-04)

Gas / Diesel Fuel and 4 Stroke Type 400cc Atv(YH400-04) thumbnail-1
Gas / Diesel Fuel and 4 Stroke Type 400cc Atv(YH400-04) thumbnail-2
Gas / Diesel Fuel and 4 Stroke Type 400cc Atv(YH400-04) photo-1

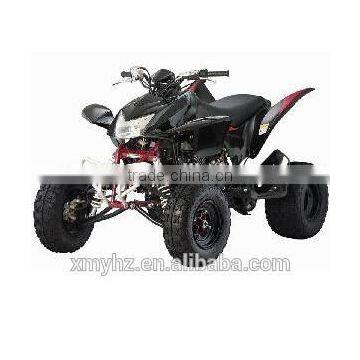

Gas / Diesel Fuel and 4 Stroke Type 400cc Atv(YH400-04) photo-2
US$ 4,550 - 5,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Fuel:
Gas / Diesel
Displacement:
>300cc
Engine Type:
4 Stroke
Contact Supplier Request Quote Chat Now
Xiamen Yu Hanzhen Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Fuel Gas / Diesel
Engine Type 4 Stroke
Transmission Type Automatic
Transmission System Chain Drive
Certification Other, EEC
Brand Name ---
Place of Origin Zhejiang, China
Model Number YH400-04



Product Description

400cc gas atv(YH400-04)

ENGINE
Engine Type  3 Cylinder, 4 Stroke
Engine Displacement  392cc
Bore x Stroke  56 x 53mm
Compression Ratio 9.9: 1
Cooling System  Air and Oil cooled
Ignition  DC-CDI
Maximum HP/ RPM 23.34kw/7500r/min
Maximum Ne /RPM 30N. M/5000r/min
Fuel Capacity  13L
Max Speed  93km/h
Starting System Electric Start
Transmission Mode 5 speed manual clutch with reverse
Final Drive 2WD, Sealed O-ring Chain
Battery 12V 9A
Wheels and Brakes
Tyres Front AT21 *7-10
Tyres Rear AT20*10-9
Suspension Rear Independent Double Wishbone
Suspension Rear Swing arm with preload adjustment
Brakes Front Dual hydraulic disc, twin piston
Brakes Rear Hydraulic Disc Brake
Dimensions and Weight
Product Dimension(LxWxH) 1, 900x1, 170x1, 120mm
Carton Dimension(LxWxH) 1, 660x1, 130x800mm
Seat Height 840 mm
Wheelbase 1, 290mm
Ground Clearance  120mm
Dry Weight 210kgs
Gross Weight 240kgs
Container Loading    14 Units / 20' GP;           42 Units / 40' HQ

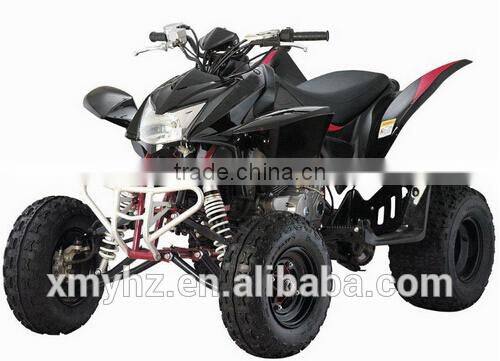

 Gas / Diesel Fuel and 4 Stroke Type 400cc atv(YH400-04)
