Specifications
ATV 750 CC 4 STROKE 48 CV 4X4 328 DRY KGTECHNICAL SPECIFICATIONS
ENGINE
TYPE 4-Strokes / Single Cylinder / SOHC
REFRIGERATION Liquid cooled
BORE & STROKE 106 X 85mm
DISPLACEMENT 750cc
COMPRESION RATIO 10.1:1
IGNITION C.D.I.
STARTING SYSTEM Electric / Recoil
CARBURATION (EFI) Carburetor MIKUNI BSR-42mm
MAX POWER <15kW / 4.500rpm (CE) - 42CV
MAR TORQUE 44 Nw / 3.000rpm
TRANSMISION
TYPE Automatic centrifugal CVT (P/R/N/H/L)

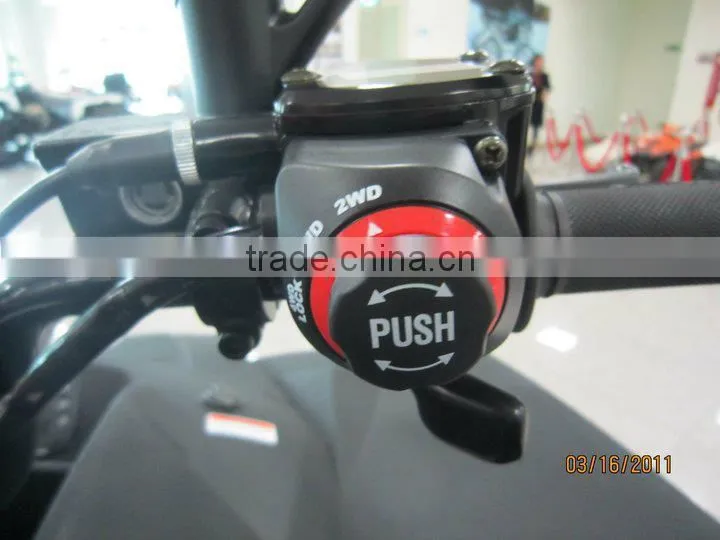

CLUTCH 2WD / 4WD winth LOCKING FRONT DIFFERENTIAL
SECONDARY TRANSMISSION CARDAN
FRAME
FRONT SUSPENSION INDEPENDENT DOUBLE A-ARM / PRELOAD ADJUST
REAR SUSPENSION INDEPENDENT DOUBLE A-ARM / PRELOAD ADJUST
FRONT BREAKING SYSTEM 2 HYDRAULIC, DISCS
REAR BREAKING SYSTEM HYDRAULIC DISC
FRONT TIRES 25x8.00-12
REAR TIRES 25x10.00-12
MEASURES
LENGTH 2088 mm
WIDTH 1213 mm
HEIGHT 1.245 mm
SEAT´S HEIGHT 916 mm
WHEELBASE 1.300 mm
GROUND CLEARANCE 295mm
FUEL TANK 20L
FUEL TYPE UNLEADED
OIL TANK 1L
DRY WEIGHT 328kgr
